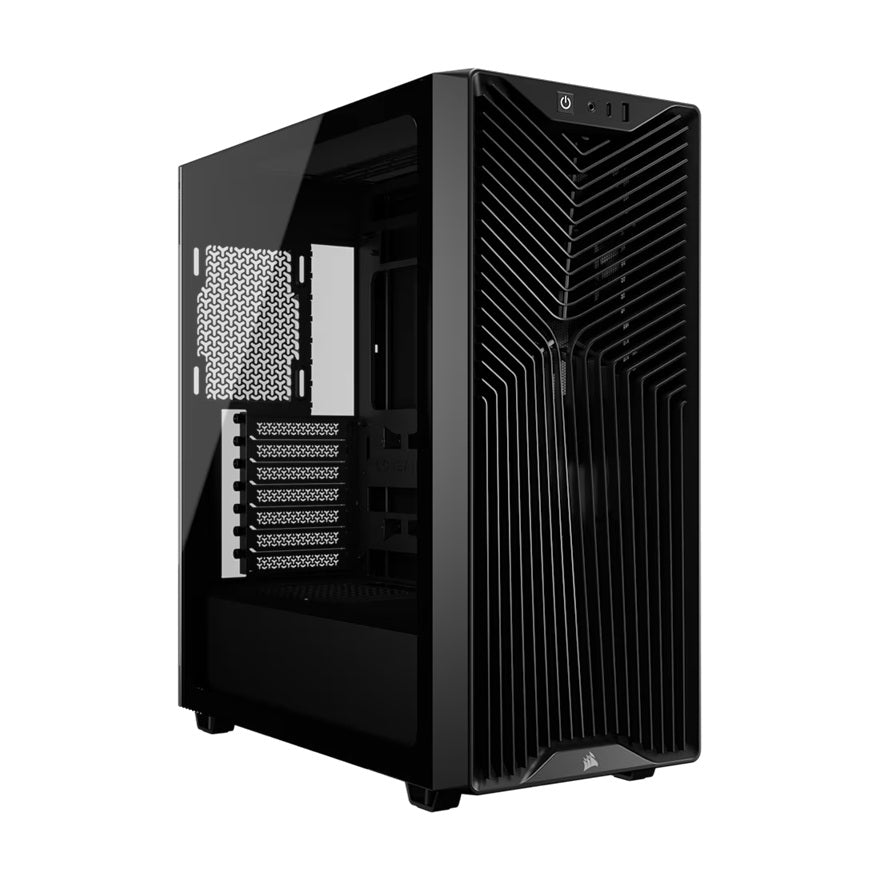

Corsair 3200D RS Mid-Tower PC Case
Corsair 3200D RS Mid-Tower PC Case
SKU:CAC-3200DRS-BK
The Corsair 3200D RS is a mid-tower ATX case designed for high-performance gaming and workstation builds. Featuring support for 360mm radiators, 400mm GPU clearance, and nine fan mounting options, it delivers excellent thermal management and component compatibility for IT professionals and enthusiast builders.
Couldn't load pickup availability
- See our return policy
- 2 Years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-3200DRS-BK |
| Availability | In Stock |
Overview
- The Corsair 3200D RS is a versatile mid-tower case engineered for flexible component configurations and superior thermal management. It accommodates full-size ATX motherboards whilst maintaining a compact footprint, making it suitable for performance builds where space is a consideration. The case excels in thermal performance through extensive radiator support, multiple fan mounting options, and intelligent airflow design including an angled bottom mount for direct GPU cooling. Built-in features such as the GPU anti-sag stabilisation arm and reverse-connector motherboard compatibility demonstrate thoughtful engineering for complex builds.
Key strengths include front-panel USB 3.2 Gen 2x2 Type-C connectivity for modern peripherals, excellent cable routing space at 24mm, and comprehensive dust filtration. The combination of tempered glass and steel panelling provides both visibility and durability. With support for up to 165mm CPU coolers and 180mm PSU length, the case accommodates a wide range of quality components without compromise. The 2-year warranty backs Corsair's reputation for build quality and customer support.
Specifications
| Brand | Corsair |
|---|---|
| Model | 3200D RS |
| Case Type | Mid-Tower |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Case Dimensions (H×L×W) | 495mm × 458mm × 219mm |
| Case Weight | 8.5kg |
| Material | Steel, Tempered Glass, Plastic |
| Colour | Black |
| Power Supply Form Factor | ATX |
| Maximum PSU Length | 180mm |
| Maximum GPU Length | 400mm |
| Maximum CPU Cooler Height | 165mm |
| Expansion Slots | 7 Horizontal |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 120mm |
| Fan Support - Top | 3× 120mm or 2× 140mm |
| Fan Support - Front | 3× 120mm or 2× 140mm |
| Fan Support - Bottom | 2× 120mm |
| Fan Support - Rear | 1× 120mm |
| Total Fan Mounts | 9 |
| Front Panel Connectors | 1× USB 3.2 Gen 2x2 Type-C, 1× USB 2.0 Type-A, 1× Audio in/out |
| Motherboard Headers | 1× USB-3.2 Gen2x2 Type-E, 1× USB 2.0 9-Pin, 1× F_PANEL, 1× HD Audio |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Case Window | Tempered Glass |
| Cable Routing Space | 24mm |
| Dust Filtration | Yes |
| GPU Anti-Sag Arm | Yes |
| Reverse Connector Support | Yes |
| Vertical Mount Support | No |
| Included Fans | 3× RS120 |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Warranty | 2 Years |
Key Features
Ideal For
FAQs
What motherboard sizes does the Corsair 3200D RS support?
The 3200D RS supports ATX, Micro-ATX, and Mini-ITX motherboards, offering flexibility for various build configurations.
What is the maximum GPU length this case can accommodate?
The case supports GPUs up to 400mm in length. If you remove the front fans, you can fit GPUs up to 375mm without modification.
Can I install a 360mm radiator in this case?
Yes, the 3200D RS supports 360mm radiators in both the top and front positions, making it ideal for liquid cooling systems.
How many fans can I install in the 3200D RS?
The case supports up to 9 fans total across all mounting positions: 3 on top, 3 on front, 2 on bottom, and 1 on rear. Three RS120 fans are included.
What is included in the box?
The case includes 3× RS120 fans pre-installed. The case itself, power supply, motherboard, and other components are not included.
Does this case support reverse-connector motherboards?
Yes, the 3200D RS is compatible with reverse-connector motherboards, providing flexibility for specialist build requirements.
What connectivity options are on the front panel?
The front panel includes 1× USB 3.2 Gen 2x2 Type-C, 1× USB 2.0 Type-A, and a 3.5mm audio jack for convenient peripheral access.
