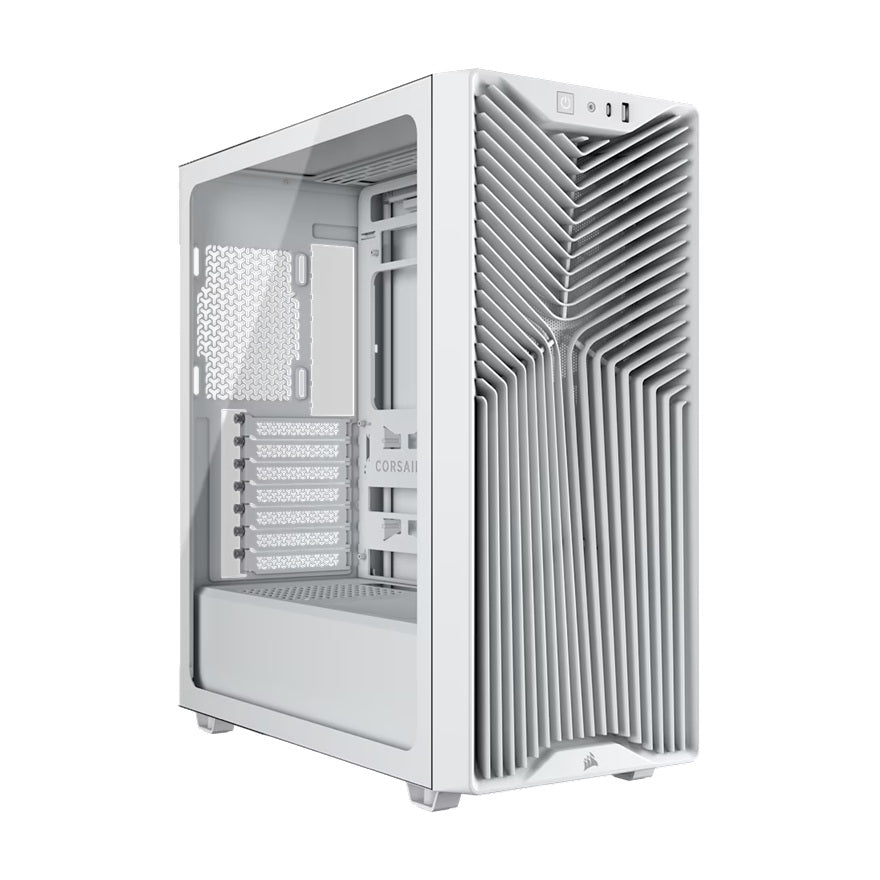

Corsair 3200D RS Mid-Tower PC Case White
Corsair 3200D RS Mid-Tower PC Case White
SKU:CAC-3200DRS-WH
The Corsair 3200D RS is a mid-tower PC case designed for high-performance builds. Featuring tempered glass panels, support for 360mm radiators, 400mm GPU clearance, and integrated cooling options, it delivers excellent airflow and build flexibility for gaming and professional workstations.
Couldn't load pickup availability
- See our return policy
- 2 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-3200DRS-WH |
| Availability | In Stock |
Overview
- The Corsair 3200D RS is a versatile mid-tower case designed to accommodate modern high-performance components. With support for 360mm AIO radiators, 400mm GPU clearance, and nine fan mounting positions, it provides excellent thermal management for demanding builds. The case includes three RS120 fans and features an integrated GPU anti-sag arm to protect valuable graphics cards.
Built with tempered glass on the left panel and steel construction throughout, the 3200D RS offers both aesthetics and durability. The front IO includes USB 3.2 Gen 2x2 Type-C connectivity for fast data transfer, while the angled bottom fan mount provides direct cooling to the GPU. With support for Mini-ITX, Micro-ATX, and ATX motherboards, it accommodates a wide range of system configurations.
This case is ideal for gamers, content creators, and PC enthusiasts who demand flexible cooling options and component compatibility. The spacious 495mm height and well-planned internal layout make cable routing straightforward, while seven horizontal expansion slots provide room for additional cards and upgrades.
Specifications
| Brand | Corsair |
|---|---|
| Model | 3200D RS |
| Product Type | Mid-Tower PC Case |
| Case Size | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| External Dimensions | 495mm (H) × 458mm (L) × 219mm (W) |
| Weight | 8.5 kg |
| Material | Steel, tempered glass, plastic |
| Colour | White |
| Case Window | Tempered glass (left side panel) |
| Side Panels | Left: tempered glass, Right: steel |
| Maximum GPU Length | 400mm (375mm with fans installed) |
| Maximum CPU Cooler Height | 165mm |
| Maximum PSU Length | 180mm |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | 7 horizontal |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 120mm |
| Fan Mounts - Front | 3× 120mm or 2× 140mm |
| Fan Mounts - Top | 3× 120mm or 2× 140mm |
| Fan Mounts - Bottom | 2× 120mm |
| Fan Mounts - Rear | 1× 120mm |
| Total Fan Mounting Positions | 9 |
| Included Fans | 3× RS120 |
| Front IO Ports | 1× USB 3.2 Gen 2x2 Type-C, 1× USB 2.0 Type-A, 1× 3.5mm audio jack |
| Motherboard IO Headers | 1× USB-3.2 Gen2x2 Type-E, 1× USB 2.0 9-Pin, 1× F_PANEL, 1× HD Audio |
| Power Supply Compatibility | ATX |
| Dust Filtration | Yes |
| Cable Routing Space | 24mm |
| Features | GPU anti-sag stabilisation arm, angled bottom fan mount, reverse-connector motherboard support, dust filters |
| Warranty | 2 years |
| Compatible Liquid Coolers | Corsair H60, H100, H115, H150, and other 120mm/140mm/240mm/280mm/360mm radiator coolers |
Key Features
Ideal For
FAQs
What radiator sizes does the Corsair 3200D RS support?
The case supports 120mm, 140mm, 240mm, 280mm, and 360mm radiators. You can mount 360mm radiators in the front or top positions, making it ideal for liquid cooling enthusiasts.
How much GPU clearance does this case provide?
The 3200D RS offers 400mm maximum GPU clearance with fans removed, or 375mm with fans installed. This accommodates most modern high-end graphics cards.
What motherboard sizes are compatible?
The case supports Mini-ITX, Micro-ATX, and ATX motherboards, giving you flexibility in component selection and build configuration.
How many fans are included with the case?
Three Corsair RS120 fans are included. The case has nine total fan mounting positions (front, top, rear, and bottom), allowing for significant cooling customisation.
Does the case include a power supply?
No, the power supply is not included. The case is compatible with standard ATX power supplies with a maximum length of 180mm.
What storage drive bays are available?
The case includes one 3.5" internal bay and two 2.5" internal bays, supporting HDD and SSD installations.
What is included in the warranty?
Corsair provides a 2-year manufacturer's warranty covering the case and included components.
Does the case support vertical graphics card mounting?
No, vertical graphics card mounting is not supported on the 3200D RS.
