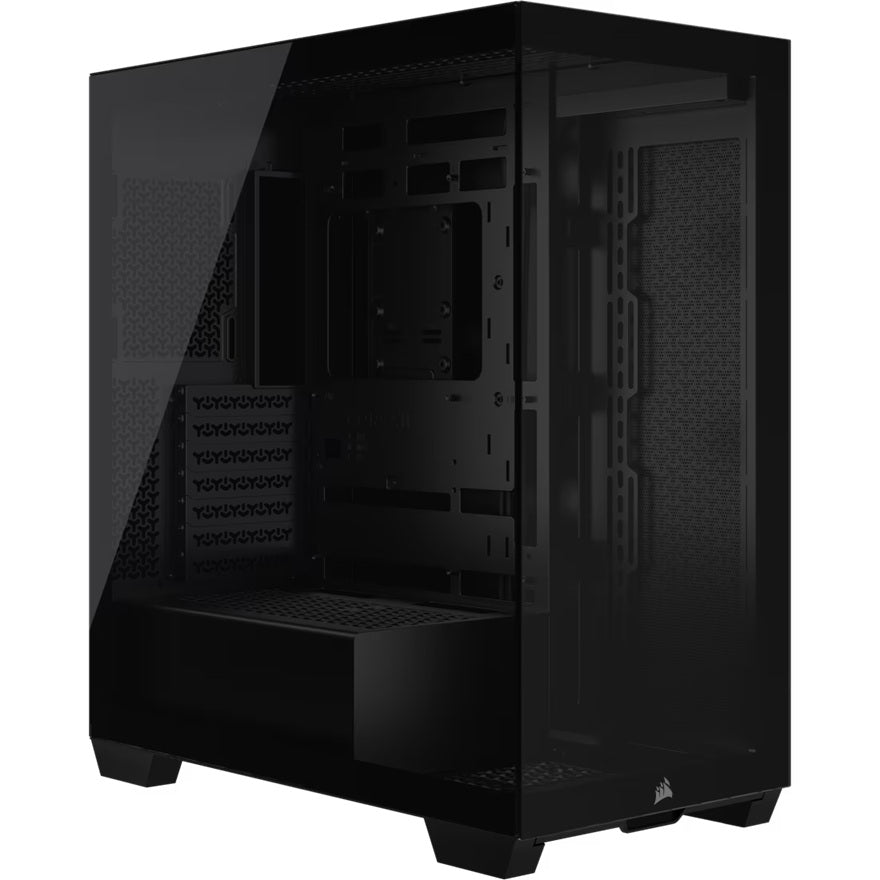

Corsair 3500X Mid-Tower PC Case
Corsair 3500X Mid-Tower PC Case
SKU:CAC-3500X-MT-BK
The Corsair 3500X is a mid-tower PC case designed for high-performance custom builds. Featuring a wraparound tempered glass design, support for E-ATX motherboards, and flexible cooling options with radiator mounting on side, top, and rear, it delivers excellent build flexibility and airflow management.
Couldn't load pickup availability
- See our return policy
- 2 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-3500X-MT-BK |
| Availability | In Stock |
Overview
- The Corsair 3500X mid-tower case combines builder-friendly design with striking aesthetics. Its wraparound tempered glass panels provide a comprehensive view of your build whilst maintaining excellent cooling potential through flexible radiator and fan mounting options.
The case accommodates modern high-performance components including E-ATX motherboards, graphics cards up to 425mm, and tower coolers up to 170mm. It supports liquid cooling solutions with mounting points for radiators on the top, side, and rear, making it ideal for both air and liquid-cooled builds.
Specifically designed for reverse connector motherboards from ASUS, MSI, and GIGABYTE, the 3500X simplifies cable management and improves build accessibility. With 7 expansion slots and generous internal space, it provides plenty of room for storage drives and additional components.
Backed by a 2-year warranty, this case is engineered for builders who demand performance, flexibility, and visual appeal.
Specifications
| Brand | Corsair |
|---|---|
| Model | 3500X |
| Case Type | Mid-Tower |
| Form Factor Support | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm) |
| Material | Steel with Tempered Glass |
| Colour | Black |
| Dimensions (H × L × W) | 506 × 460 × 240 mm |
| Weight | 9.71 kg |
| Maximum GPU Length | 425 mm |
| Maximum CPU Cooler Height | 170 mm |
| Maximum PSU Length | 180 mm |
| Expansion Slots | 7 horizontal (or 4 vertical with riser card) |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 |
| Radiator Support - Top | 360 mm, 280 mm, 240 mm |
| Radiator Support - Side | 360 mm, 280 mm, 240 mm |
| Radiator Support - Rear | 1 × 120 mm |
| Radiator Support - Front | None |
| Radiator Support - Bottom | None |
| Fan Support - Top | 3 × 120 mm or 2 × 140 mm |
| Fan Support - Side | 3 × 120 mm or 2 × 140 mm |
| Fan Support - Rear | 1 × 120 mm |
| Fan Support - Bottom | 3 × 120 mm or 1 × 140 mm |
| Compatible Liquid Coolers | Corsair H60, H100, H115, H150 (all series) |
| Front I/O | 1 × USB 3.2 Gen 2 Type-C, 2 × USB 3.2 Gen 1 Type-A, audio in/out |
| Front Panel Connections | 1 × HD Audio, 1 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 Type-E, 1 × F_PANEL |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Cable Routing Space | 45 mm |
| Dust Filtration | Yes |
| Reverse Connector Motherboard Support | Yes (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH compatible) |
| Vertical Mount Support | Supported (riser card sold separately) |
| Included Fans | None |
| Power Supply Type | ATX |
| Warranty | 2 years |
Key Features
Ideal For
FAQs
What motherboard sizes does the Corsair 3500X support?
The 3500X supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305mm × 277mm, making it compatible with most modern high-performance boards.
Can I fit a large graphics card in this case?
Yes, the 3500X accommodates graphics cards up to 425mm in length, which covers most consumer and professional GPUs including high-end models.
Does this case support liquid cooling?
Yes, the 3500X offers flexible liquid cooling support with radiator mounting points for 360mm, 280mm, and 240mm radiators on the top and side, plus a 120mm rear mount. It's compatible with Corsair H-series coolers.
Is cable management difficult with this case?
The 3500X includes 45mm of cable routing space and tool-free removable panels designed for builder convenience. Additionally, it supports reverse connector motherboards which simplifies cable management significantly.
Does the case come with fans?
No, the 3500X does not include fans. However, it offers multiple mounting options for case fans and radiators, allowing you to customise cooling based on your build requirements.
What is the maximum CPU cooler height allowed?
The case supports CPU coolers up to 170mm in height, which accommodates most high-performance air coolers and tower-style cooling solutions.
Can I mount the motherboard vertically?
Vertical mounting is supported with a riser card (sold separately), though the case is primarily designed for standard horizontal motherboard orientation.
What warranty does this case include?
The Corsair 3500X includes a 2-year manufacturer's warranty for defects and failures.
