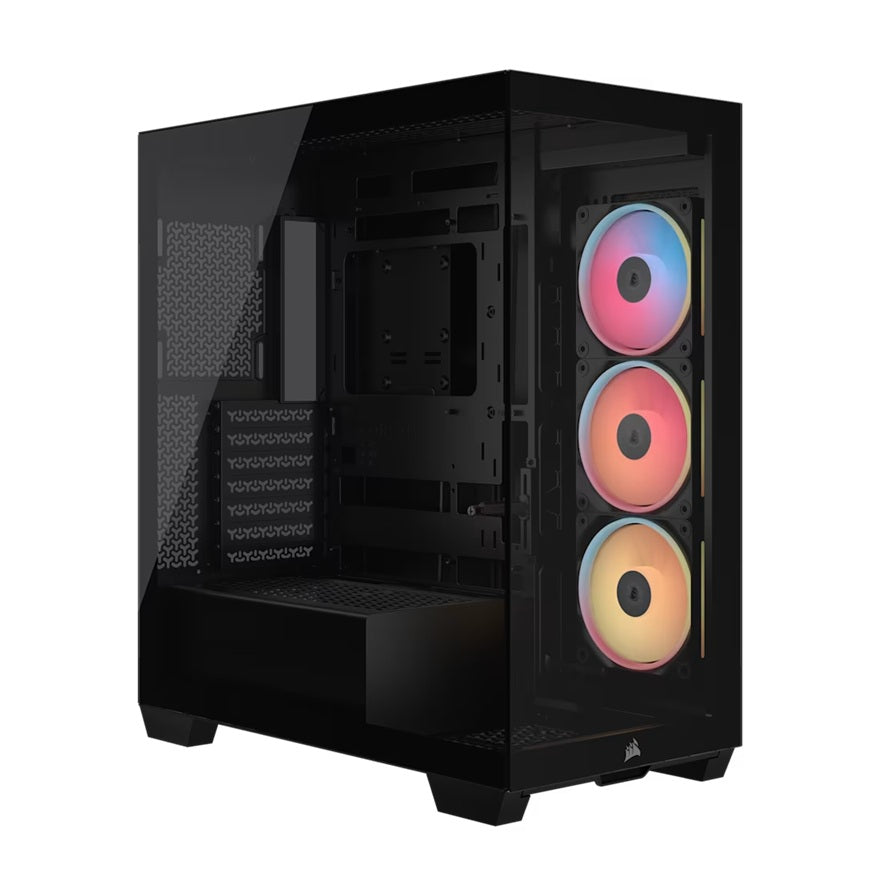

Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case
Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case
SKU:CAC-3500XLX-R-RGB-BK
The Corsair 3500X LX-R is a mid-tower PC case designed for high-performance custom builds. Featuring wraparound tempered glass panels, support for E-ATX motherboards, 360mm radiator compatibility, and three pre-installed iCUE LINK RGB fans, it delivers exceptional cooling and cable management for system builders.
Couldn't load pickup availability
- See our return policy
- 2 Years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-3500XLX-R-RGB-BK |
| Availability | In Stock |
Overview
- The Corsair 3500X LX-R is a versatile mid-tower case engineered for builders who demand space and style without sacrificing performance. Its generous internal dimensions accommodate E-ATX motherboards, large graphics cards up to 425mm, and comprehensive radiator mounting options, making it suitable for both air and liquid cooling setups.
The case features extensive cooling flexibility with mounting points for fans and radiators on the side, roof, and rear, allowing builders to configure their ideal thermal solution. Three pre-installed iCUE LINK LX120-R RGB fans and the iCUE LINK System Hub provide out-of-the-box functionality with intuitive lighting and fan control.
Built-in support for reverse motherboard designs (ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth) enables cleaner aesthetics by hiding cable connections. Wraparound tempered glass panels on the front and left side showcase the build while maintaining dust filtration. With thoughtful cable routing space of 45mm and numerous drive bays, the 3500X simplifies the build process for both novices and experienced builders.
Specifications
| Case Type | Mid-Tower |
|---|---|
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Maximum GPU Length | 425mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 180mm |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 120mm |
| Fan Support - Top | 3x 120mm; 2x 140mm |
| Fan Support - Side | 3x 120mm; 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Pre-Installed Fans | 3x iCUE LINK LX120-R RGB |
| Front I/O | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | 7 Horizontal (or 4 Vertical) |
| Case Panels | Tempered glass (front and left), steel (right) |
| Power Supply | ATX |
| Cable Routing Space | 45mm |
| Dust Filtration | Yes |
| Reverse Motherboard Support | Yes (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth) |
| Vertical Mount Support | Supported (Riser card sold separately) |
| Dimensions (H x L x W) | 506mm x 460mm x 240mm |
| Weight | 10.9kg |
| Material | Steel, Tempered Glass |
| Colour | Black |
| Warranty | 2 Years |
Key Features
Ideal For
FAQs
What motherboard sizes does the Corsair 3500X support?
The 3500X supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards (up to 305mm x 277mm). It is also validated for reverse motherboard designs including ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth.
Can I fit a 360mm radiator in this case?
Yes, the 3500X supports 360mm radiators on both the side and roof mounting points. It also accommodates 240mm and 280mm radiators on these same positions.
What is the maximum GPU length this case can accommodate?
The 3500X supports graphics cards up to 425mm in length, making it compatible with most modern high-performance GPUs.
Are fans included with the case?
Yes, the case comes with three pre-installed iCUE LINK LX120-R RGB fans and an iCUE LINK System Hub for integrated lighting and fan control.
What is the cable routing space available?
The 3500X provides 45mm of cable routing space behind the motherboard tray, facilitating clean and organised cable management.
Does the case support liquid cooling?
Yes, the case supports popular liquid coolers including the Corsair H60, H100, H115, and H150 series, with flexible radiator mounting options on the side, roof, and rear.
What type of power supply does the 3500X require?
The case accommodates standard ATX power supplies up to 180mm in length.
