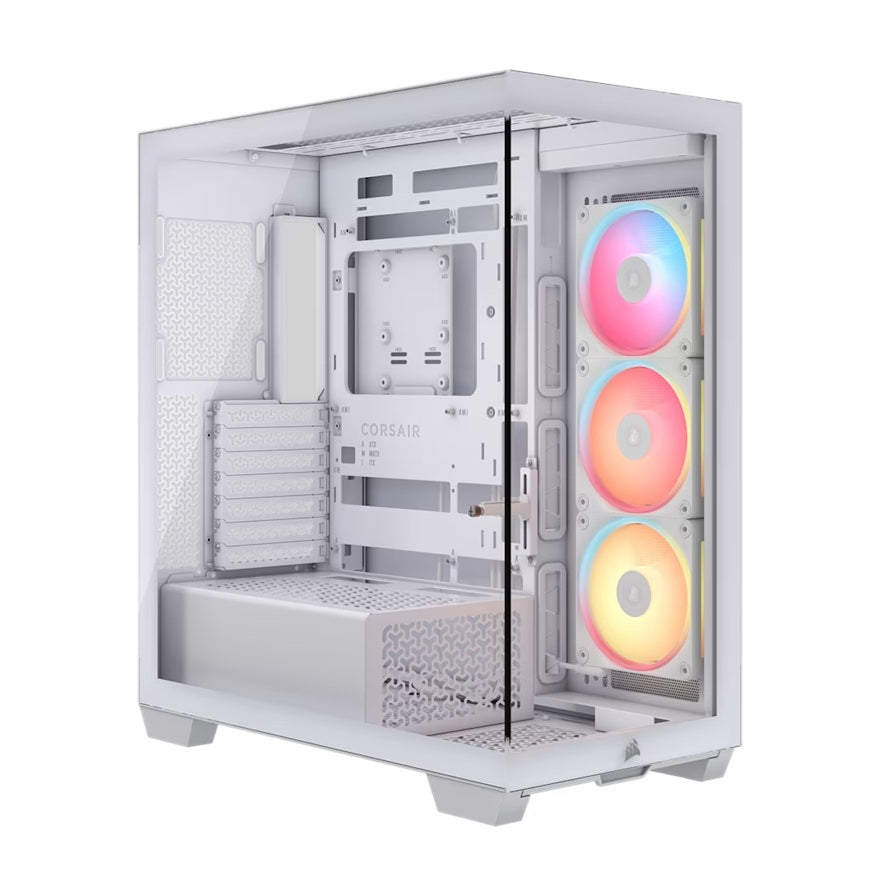

Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case
Corsair 3500X LX-R RGB iCUE LINK Mid-Tower PC Case
SKU:CAC-3500XLX-R-RGB-WH
The Corsair 3500X LX-R RGB is a mid-tower case designed for high-performance custom PC builds. Featuring wraparound tempered glass, iCUE LINK ecosystem support, and compatibility with E-ATX motherboards and 360mm radiators, it delivers excellent cooling and cable management for builders and enthusiasts.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-3500XLX-R-RGB-WH |
| Availability | In Stock |
Overview
- The Corsair 3500X LX-R RGB is a mid-tower case engineered for modern high-performance PC builds. Its wraparound tempered glass panels and removable side panels provide excellent visibility of your hardware, while the spacious interior accommodates E-ATX motherboards, graphics cards up to 425mm, and 360mm radiators on the side or roof. This makes it ideal for builders who want significant component flexibility without a full-size tower footprint.
The case includes three pre-installed iCUE LINK LX120-R RGB fans and a system hub, placing it at the centre of Corsair's iCUE LINK ecosystem for simplified RGB and fan control. The innovative reverse motherboard support works with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth platforms, allowing cable routing behind the motherboard for a significantly cleaner build aesthetic.
Cooling performance is a priority, with mounting points for fans and radiators across the side, roof, and rear, plus a PSU bracket that accommodates standard ATX power supplies up to 180mm. The front I/O includes USB 3.2 Gen 2 Type-C and dual USB 3.2 Gen 1 Type-A ports, suiting modern peripherals and storage devices. Cable routing space of 45mm and dust filtration help maintain system cleanliness and stability.
Specifications
| Brand | Corsair |
|---|---|
| Model | 3500X LX-R RGB iCUE LINK |
| Product Type | Mid-Tower PC Case |
| Case Size | Mid-Tower |
| Form Factor Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Dimensions (H x L x W) | 506mm x 460mm x 240mm |
| Weight | 10.9kg |
| Material | Steel and Tempered Glass |
| Colour | White |
| Case Window | Tempered Glass (left side panel) |
| Right Side Panel | Steel |
| Maximum GPU Length | 425mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 180mm |
| Power Supply Type | ATX |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | 7 Horizontal (or 4 Vertical) |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 1x 120mm |
| Compatible Liquid Coolers | H60, H100, H115, H150 (All Series) |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Top | 3x 120mm; 2x 140mm |
| Fan Support - Side | 3x 120mm; 2x 140mm |
| Fan Support - Bottom | 3x 120mm; 1x 140mm |
| Pre-Installed Fans | 3x iCUE LINK LX120-R RGB |
| iCUE LINK System Hub | Included |
| Front I/O Ports | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out |
| Motherboard Connections | 1x HD Audio, 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-E, 1x Front Panel |
| Reverse Motherboard Support | Yes (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth compatible) |
| Dust Filtration | Yes |
| Cable Routing Space | 45mm |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
| RapidRoute Compatible | Yes (Sold Separately) |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Can the Corsair 3500X LX-R accommodate large graphics cards and CPU coolers?
Yes. The case supports graphics cards up to 425mm in length and CPU coolers up to 170mm in height, making it suitable for high-end components whilst maintaining a mid-tower footprint.
What radiator sizes does this case support?
The 3500X LX-R supports 120mm, 140mm, 240mm, 280mm, and 360mm radiators. You can mount 360mm radiators on the side or top, providing excellent liquid cooling flexibility.
Is this case compatible with E-ATX motherboards?
Yes, the 3500X LX-R is fully compatible with E-ATX motherboards up to 305mm x 277mm, along with Mini-ITX, Micro-ATX, and standard ATX boards.
What is reverse motherboard support and why does it matter?
Reverse motherboard support allows compatible boards (ASUS BTF, MSI Project Zero, GIGABYTE Project Stealth) to be mounted with connectors facing the back panel. This enables cable routing behind the motherboard for a much cleaner, cable-free interior aesthetic.
Does the case come with fans and RGB controller?
Yes, the 3500X LX-R includes three pre-installed iCUE LINK LX120-R RGB fans and an iCUE LINK System Hub, allowing you to control fans and RGB lighting directly through Corsair's iCUE software.
What are the front panel connectivity options?
The case features 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A ports, and audio in/out, providing modern connectivity for high-speed devices and peripherals.
Can I mount fans on the front of the case?
The front panel does not have fan mounting points. However, you can mount fans or radiators on the side, top, rear, and bottom, providing multiple cooling configuration options.
What is the cable routing space and is it easy to manage?
The case provides 45mm of cable routing space behind the motherboard tray. Combined with the RapidRoute cable management system (sold separately) and dust filtration, cable management is streamlined for a clean build.
