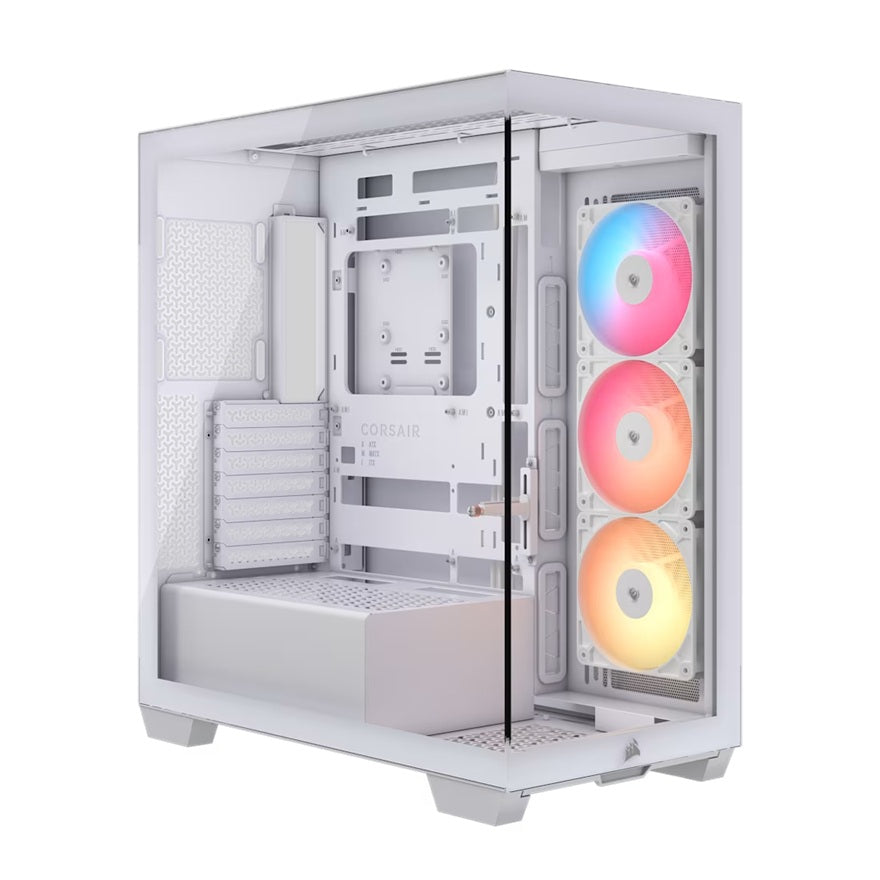

Corsair 3500X RS-R ARGB Mid-Tower PC Case White
Corsair 3500X RS-R ARGB Mid-Tower PC Case White
SKU:CAC-3500XRS-R-ARGB-WH
The Corsair 3500X RS-R ARGB is a mid-tower PC case designed for custom PC builds and high-performance gaming systems. Featuring wraparound tempered glass, three pre-installed ARGB fans, and support for E-ATX motherboards and 360mm radiators, it delivers excellent airflow and builder-friendly design.
Couldn't load pickup availability
- See our return policy
- 2 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-3500XRS-R-ARGB-WH |
| Availability | In Stock |
Overview
- The Corsair 3500X RS-R ARGB is a mid-tower PC case purpose-built for modern high-performance custom PC builds. Its wraparound tempered glass design provides a premium visual presentation while the steel and glass construction ensures durability and component protection. The case supports a comprehensive range of motherboard sizes—from Mini-ITX to E-ATX—making it flexible for various build configurations.
Thermal management is a key strength, with support for 360mm radiators on the top and side panels, three pre-installed ARGB fans, and multiple mounting points for additional cooling solutions. The generous internal clearance accommodates graphics cards up to 425mm long and CPU coolers up to 170mm tall, covering virtually all current and next-generation components.
Builder-friendly features include a spacious interior, 45mm cable routing space, support for reverse-connection motherboards, and a straightforward front I/O setup with USB 3.2 Gen 2x2 Type-C connectivity. The case includes two 3.5-inch and two 2.5-inch internal drive bays for storage expansion, while the seven horizontal expansion slots (or four vertical with riser card) accommodate most standard configurations.
Specifications
| Case Size | Mid-Tower |
|---|---|
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Dimensions (H x L x W) | 506mm x 460mm x 240mm |
| Weight | 10.66kg |
| Material | Steel chassis with tempered glass panels |
| Colour | White |
| Case Window | Tempered glass (left side panel) |
| Side Panel | Left: Tempered glass; Right: Steel |
| Maximum GPU Length | 425mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 180mm |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 1x 120mm |
| Fan Support - Top | 3x 120mm or 2x 140mm |
| Fan Support - Side | 3x 120mm or 2x 140mm |
| Fan Support - Rear | 1x 120mm |
| Pre-installed Fans | 3x RS120-R ARGB fans |
| Internal 3.5-inch Drive Bays | 2 |
| Internal 2.5-inch Drive Bays | 2 |
| Expansion Slots | 7 horizontal or 4 vertical |
| Power Supply Form Factor | ATX |
| Front I/O Ports | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x audio in/out |
| Front Panel Connectors | 1x USB 3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-pin, 1x F_PANEL, 1x HD audio |
| Cable Routing Space | 45mm |
| Dust Filtration | Yes |
| Reverse Connector Support | Yes |
| Vertical Mount Support | Supported with riser card (sold separately) |
| RapidRoute Compatibility | Compatible (sold separately) |
| Warranty | 2 years |
Key Features
Ideal For
FAQs
What motherboard sizes does the Corsair 3500X RS-R ARGB support?
The 3500X RS-R ARGB supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards with dimensions up to 305mm x 277mm, providing flexibility for a wide range of build configurations.
Can I fit a large graphics card and liquid cooling in this case?
Yes. The case accommodates graphics cards up to 425mm long and supports radiators up to 360mm on the top and side panels, allowing you to combine high-end GPUs with advanced liquid cooling solutions.
Are fans included with the case?
Yes, three RS120-R ARGB fans are pre-installed. They feature integrated RGB lighting and provide solid baseline cooling, with room to add more fans or radiators as needed.
Does the case have USB Type-C connectivity?
Yes, the front I/O includes one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and audio connectivity for modern peripheral support.
What is the warranty coverage?
The Corsair 3500X RS-R ARGB comes with a 2-year manufacturer warranty covering defects in materials and workmanship.
Can I mount drives in this case?
Yes, the case includes two 3.5-inch and two 2.5-inch internal drive bays, allowing you to install traditional hard drives and solid-state drives for expanded storage.
Is this case suitable for vertical GPU mounting?
Vertical mount is supported with a riser card, which is sold separately. This allows for an alternative display orientation if desired.
What cooling options are available for the radiators?
The case supports 120mm, 140mm, 240mm, 280mm, and 360mm radiators in various positions (top, side, and rear), compatible with Corsair H60, H100, H115, H150, Nautilus, and Titan liquid coolers.
