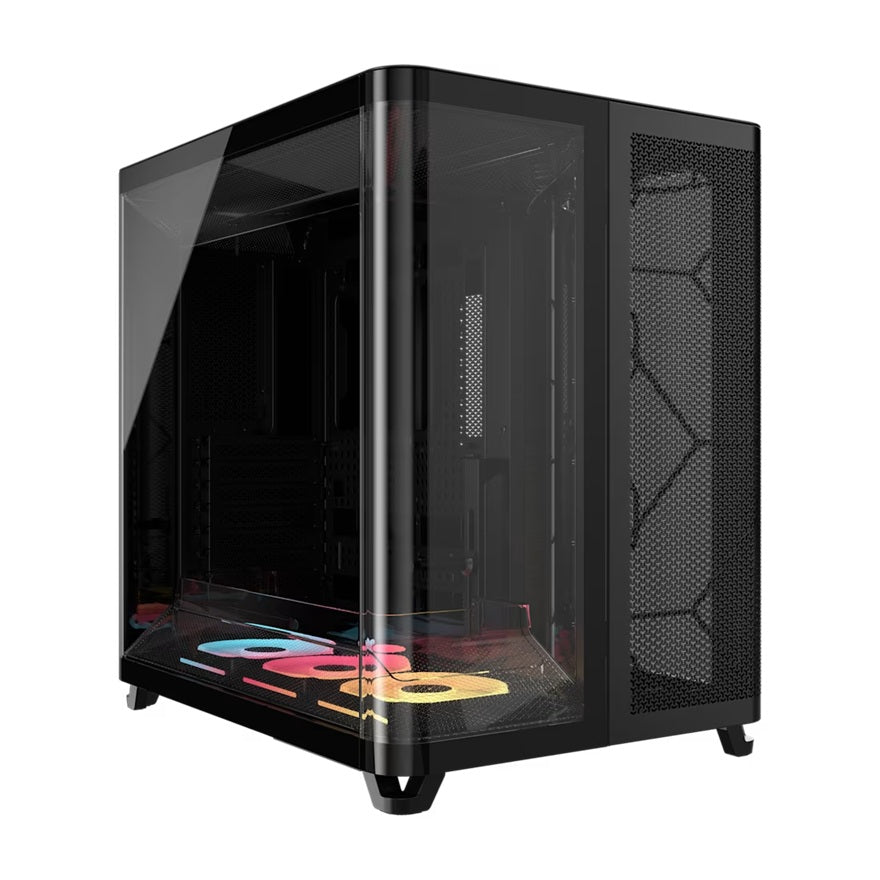

Corsair AIR 5400 LX-R RGB iCUE LINK Mid-Tower PC Case
Corsair AIR 5400 LX-R RGB iCUE LINK Mid-Tower PC Case
SKU:CAC-AIR5400LX-R-BK
The Corsair AIR 5400 LX-R RGB is a triple-chamber mid-tower case designed for high-performance gaming and workstation builds. Featuring dedicated CPU and GPU chambers, tempered glass panels, and integrated iCUE LINK RGB control, it delivers superior thermal management and cable organisation for PC enthusiasts.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-AIR5400LX-R-BK |
| Availability | In Stock |
Overview
- The Corsair AIR 5400 LX-R RGB is a premium mid-tower case engineered for builders who demand both performance and visual appeal. Its triple-chamber design isolates the CPU, GPU, and power supply into dedicated zones, maximising airflow efficiency and component longevity. The dual curved tempered glass panels showcase RGB lighting, while the RapidRoute 2.0 cable management system ensures a clean interior regardless of complexity.
Supporting ATX and E-ATX motherboards, this case accommodates high-end graphics cards up to 360mm and CPU coolers up to 180mm. The flexible radiator mounting options—360mm front, top, and bottom; 240mm front and bottom; and 120mm rear—make it ideal for both air and liquid cooling enthusiasts. Three pre-installed iCUE LINK RGB fans integrate seamlessly with Corsair's iCUE ecosystem for unified lighting and fan control.
With USB 3.2 Gen 2x2 Type-C front-panel connectivity, dust filtration, and 24-month warranty, the AIR 5400 LX-R delivers professional-grade build quality and modern I/O standards.
Specifications
| Brand | Corsair |
|---|---|
| Model | AIR 5400 LX-R RGB |
| Product Type | Mid-Tower PC Case |
| Case Size | Mid-Tower |
| External Dimensions | 467mm (H) × 470mm (L) × 340mm (W) |
| Weight | 16.7kg |
| Material | Steel, Tempered Glass |
| Colour | Black |
| Motherboard Compatibility | Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm × 277mm) |
| Maximum GPU Length | 360mm |
| Maximum CPU Cooler Height | 180mm |
| Maximum PSU Length | 200mm |
| Power Supply Format | ATX |
| Expansion Slots | 7 horizontal |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Case Window | Dual curved tempered glass French door panels (left side) |
| Right Side Panel | Steel |
| Front I/O | 1× USB 3.2 Gen 2x2 Type-C, 2× USB 3.2 Gen 1 Type-A, 1× 3.5mm audio jack |
| Motherboard Connectors | 1× HD Audio, 1× USB 3.2 Gen 1, 1× USB 3.2 Gen 2x2 Type-E, 1× Front Panel |
| Radiator Support - Front | 360mm, 240mm |
| Radiator Support - Top | 360mm |
| Radiator Support - Bottom | 360mm, 240mm |
| Radiator Support - Rear | 120mm |
| Radiator Support - Side | None |
| Fan Support - Front | 3× 120mm |
| Fan Support - Top | 3× 120mm |
| Fan Support - Bottom | 3× 120mm |
| Fan Support - Rear | 1× 120mm |
| Pre-Installed Fans | 3× iCUE LINK LX-R RGB 120mm reverse-rotor fans |
| System Hub | iCUE LINK System Hub included |
| Cable Routing Space | 134mm |
| Cable Management | RapidRoute 2.0 |
| Dust Filtration | Yes |
| Reverse Connector Motherboard Support | Yes |
| Vertical Mount Support | Not supported |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the AIR 5400 LX-R RGB support?
The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305mm × 277mm. This gives builders flexibility across most standard and high-end platforms.
How much space is available for graphics cards and CPU coolers?
The case accommodates graphics cards up to 360mm in length and CPU coolers up to 180mm in height, making it suitable for flagship GPUs and high-performance cooling solutions.
What radiator sizes and configurations does this case support?
The AIR 5400 LX-R supports 360mm radiators on the front, top, and bottom; 240mm radiators on the front and bottom; and a single 120mm radiator on the rear. This flexibility suits both air and liquid cooling builds.
Are the RGB fans included, and how are they controlled?
Yes, three iCUE LINK LX-R RGB 120mm fans are pre-installed. They connect to the included iCUE LINK System Hub and integrate with Corsair's iCUE software for unified RGB lighting and fan speed control.
What front panel I/O ports are available?
The case features one USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and a 3.5mm audio jack, providing modern connectivity for high-speed peripherals.
Does the case support reverse connector motherboards?
Yes, the AIR 5400 LX-R is compatible with reverse connector motherboards, allowing for seamless integration with select high-end and enthusiast platforms.
What warranty is included with this case?
The case comes with a 24-month manufacturer's warranty covering defects in materials and workmanship.
Is cable management space adequate for complex builds?
Yes, the RapidRoute 2.0 cable management system and 134mm cable routing space provide ample room for organised wiring in even the most complex custom builds.
