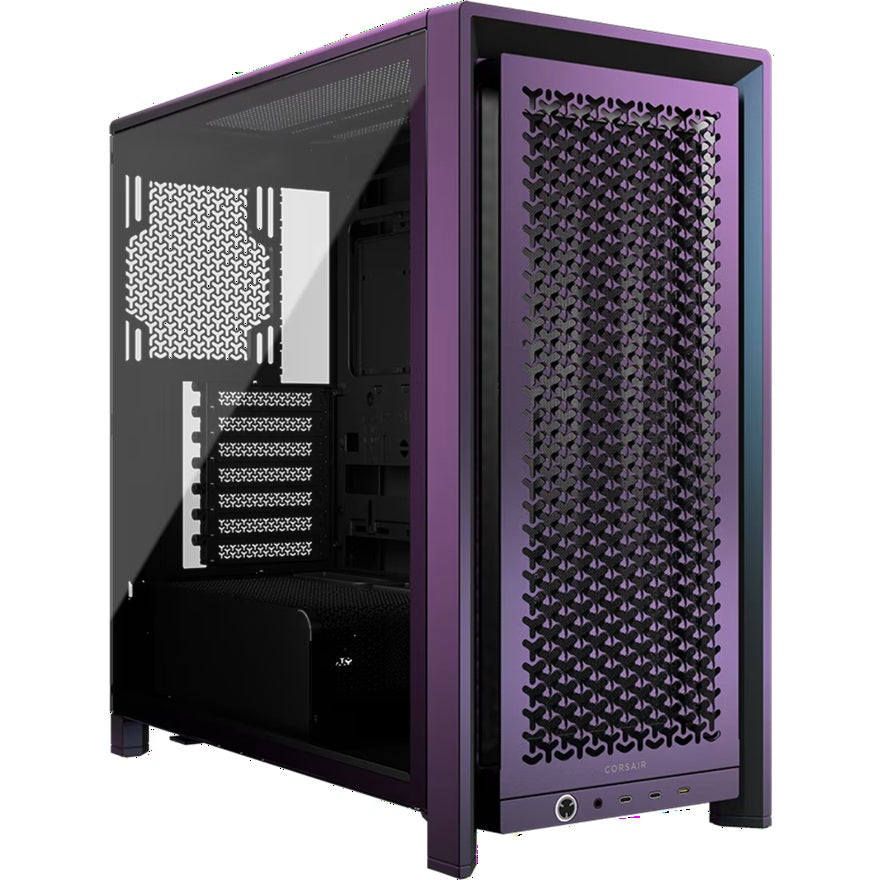

Corsair FRAME 4000D Vault Series Mid-Tower PC Case
Corsair FRAME 4000D Vault Series Mid-Tower PC Case
SKU:CAC-4000D-VAULT-GALAXY
The Corsair FRAME 4000D Vault Series is a premium mid-tower PC case designed for enthusiast builders. Featuring a tempered glass panel, modular design, and InfiniRail fan mounting system, it supports up to 430mm GPUs and dual 360mm radiators for high-performance liquid cooling builds.
Couldn't load pickup availability
- See our return policy
- 2 Years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-4000D-VAULT-GALAXY |
| Availability | In Stock |
Overview
- The Corsair FRAME 4000D Vault Series is a purpose-built mid-tower case for professional and enthusiast PC builders. Its modular design accommodates a wide range of motherboard sizes (Mini-ITX through E-ATX), whilst the InfiniRail fan mounting system simplifies cable management and component installation. The case excels in supporting high-end cooling solutions with dual 360mm radiator compatibility across multiple mounting positions, making it ideal for performance-focused liquid cooling builds.
The full tempered glass side panel provides visibility of internal components, whilst the modern front I/O panel includes three USB Type-C ports for contemporary connectivity demands. Built-in features such as the GPU anti-sag stabilisation arm and compact PSU shroud protect components and reduce cable clutter. With support for reverse connector motherboards from ASUS, MSI, and GIGABYTE, it caters to builders prioritising cable aesthetics and space efficiency.
This is a case-only unit; power supply and fans are not included. It comes with a 2-year manufacturer warranty.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 4000D Vault Series |
| Product Type | Mid-Tower PC Case |
| Form Factor | Mid-Tower |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm max) |
| Colour | Galaxy (chromatic paint) |
| Exterior Dimensions | 486mm (H) x 490mm (L) x 239mm (W) |
| Weight | 12.54kg |
| Material | Steel, Tempered Glass, Plastic |
| Side Panel | Left: Tempered Glass, Right: Steel |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Radiator Support | Front: 360mm/280mm/240mm, Top: 360mm/280mm/240mm, Side: 360mm/280mm/240mm, Rear: 140mm/120mm |
| Fan Support Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support Top | 3x 120mm, 2x 140mm |
| Fan Support Rear | 1x 120mm, 1x 140mm |
| Fan Support Side | 3x 120mm, 2x 140mm |
| Fan Support Bottom | 3x 120mm |
| Internal 3.5 inch Drive Bays | 1 |
| Internal 2.5 inch Drive Bays | 2 |
| Expansion Slots | 7 Horizontal or 3 Vertical |
| Front I/O Ports | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-C, 1x Audio In/Out |
| Front I/O Motherboard Connections | 1x USB 3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |
| PSU Format | ATX |
| Reverse Connector Motherboard Support | Yes (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH compatible) |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| Included Fans | None |
| Warranty | 2 Years |
Key Features
Ideal For
FAQs
What size power supply is compatible with the FRAME 4000D Vault?
The case supports ATX format power supplies with a maximum length of 220mm. This accommodates most standard and modular PSU units. Verify your specific PSU dimensions before purchase to ensure compatibility.
Can I fit a 360mm radiator in this case?
Yes. The FRAME 4000D supports 360mm radiators in the front, top, and side mounting positions, allowing for dual 360mm radiator configurations. The rear supports up to 140mm radiators.
Is this case compatible with reverse connector motherboards?
Yes. The FRAME 4000D is compatible with ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH reverse connector motherboards, enabling clean cable management on the front side of the case.
What is the maximum graphics card length supported?
The case supports graphics cards up to 430mm in length, accommodating most high-end discrete GPUs currently on the market.
Are fans included with the case?
No fans are included with the FRAME 4000D Vault. You will need to purchase compatible fans separately. The case supports 120mm, 140mm, and 200mm fans depending on mounting position.
Does the case include vertical GPU mounting?
Vertical mounting is supported, but a riser card must be purchased separately. Verify the length of your GPU before attempting vertical installation.
What is the warranty period?
The FRAME 4000D Vault Series includes a 2-year manufacturer warranty covering defects in materials and workmanship.
What cooling options does the InfiniRail system support?
The InfiniRail fan mounting system simplifies installation of compatible Corsair liquid coolers including H60, H100, H115, H150, NAUTILUS, and TITAN models, as well as third-party radiators in supported sizes.
