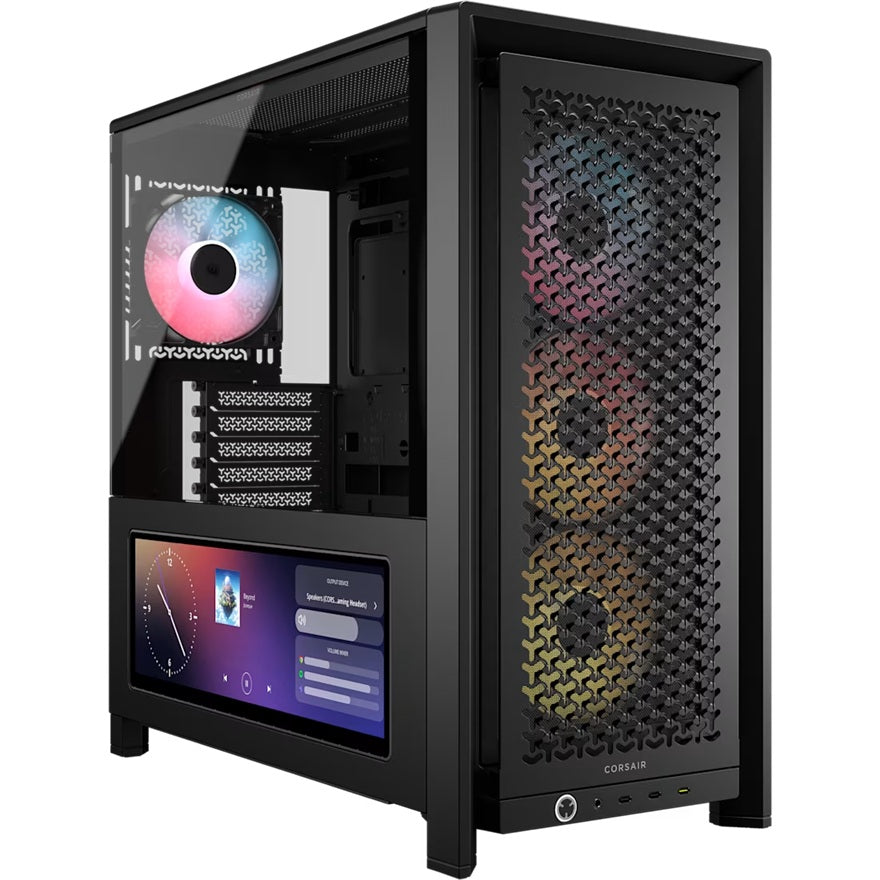

Corsair FRAME 4000D LCD RS ARGB Mid-Tower PC Case
Corsair FRAME 4000D LCD RS ARGB Mid-Tower PC Case
SKU:CAC-4000DLCDRS-ARGB-BK
The Corsair FRAME 4000D LCD RS ARGB is a premium mid-tower PC case designed for high-performance gaming and workstation builds. Featuring a 14.5-inch XENEON EDGE LCD touchscreen, four pre-installed RS120 ARGB fans, and support for graphics cards up to 430mm, it delivers excellent cooling and visibility for enthusiast builders and system integrators.
Couldn't load pickup availability
- See our return policy
- 2 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-4000DLCDRS-ARGB-BK |
| Availability | In Stock |
Overview
- The Corsair FRAME 4000D LCD RS ARGB is a premium mid-tower case designed for builders who demand both aesthetics and performance. The standout feature is the pre-installed 14.5-inch XENEON EDGE LCD touchscreen, which provides real-time monitoring of system temperatures, fan speeds, and performance metrics directly from the case front panel.
With support for E-ATX motherboards, graphics cards up to 430mm, and CPU coolers up to 170mm, this case accommodates high-end components without compromise. The four pre-installed RS120 PWM ARGB fans work in concert with the InfiniRail mounting system to deliver superior airflow and thermal management. Flexible radiator compatibility (120mm, 140mm, 240mm, 280mm, and 360mm) makes this case suitable for both air and custom water-cooling setups.
The front I/O is modern and comprehensive, featuring one USB 3.2 Gen 2 Type-C port and two USB 3.2 Gen 1 Type-A ports, plus audio connectivity. The tempered glass left panel showcases internal components, while the right panel is steel for durability. Dust filtration is integrated throughout, ensuring clean airflow and easier maintenance.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 4000D LCD RS ARGB |
| Product Type | Mid-Tower ATX Case |
| Colour | Black |
| Case Dimensions (H x L x W) | 486mm x 490mm x 239mm |
| Case Weight | 12.36kg |
| Materials | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Expansion Slots | 7 horizontal or 3 vertical |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 4 |
| Front Panel I/O | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out |
| Motherboard Connections | 1x HD Audio, 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-E, 1x F_PANEL |
| Reverse Connector Support | Yes |
| Window | Tempered Glass (left panel) |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Radiator Support - Bottom | None |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Side | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Fan Support - Bottom | 2x 120mm |
| Included Fans | 4x RS120 PWM ARGB |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| Vertical Mount Support | Yes (Riser Card sold separately) |
| Power Supply Type | ATX |
| Warranty | 2 years |
Key Features
Ideal For
FAQs
What is the XENEON EDGE LCD touchscreen and what can it display?
The XENEON EDGE is a 14.5-inch LCD touchscreen pre-installed on the front of the case. It provides real-time system monitoring capabilities, allowing you to view temperatures, fan speeds, performance metrics, and other system information without opening software or a separate application.
Will my graphics card fit in this case?
The FRAME 4000D LCD supports graphics cards up to 430mm in length. Check your GPU specifications to ensure it falls within this limit. Most modern high-end graphics cards fit within this clearance.
Can I use water cooling in this case?
Yes. The case supports radiators up to 360mm on the front, top, and side panels, and 140mm/120mm radiators on the rear. This accommodates most custom water-cooling loop configurations. Check radiator dimensions against mounting locations.
What motherboard types does this case support?
The FRAME 4000D LCD supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards (up to 305mm x 277mm). It also supports reverse connector motherboards, providing compatibility with a wide range of modern boards.
How many storage drives can I install?
The case includes 2 internal 3.5-inch drive bays for mechanical hard drives and 4 internal 2.5-inch bays for SSDs or 2.5-inch drives, allowing for flexible storage configurations.
Does the case come with fans?
Yes, the case includes 4 pre-installed RS120 PWM ARGB fans. These provide efficient cooling and can be controlled via PWM fan headers on your motherboard.
What front I/O connections are available?
The front panel features one USB 3.2 Gen 2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and audio in/out connectivity, providing modern connectivity options for peripherals and audio devices.
Is dust filtration included?
Yes, the case features integrated dust filtration to help keep internal components clean and reduce the frequency of maintenance.
