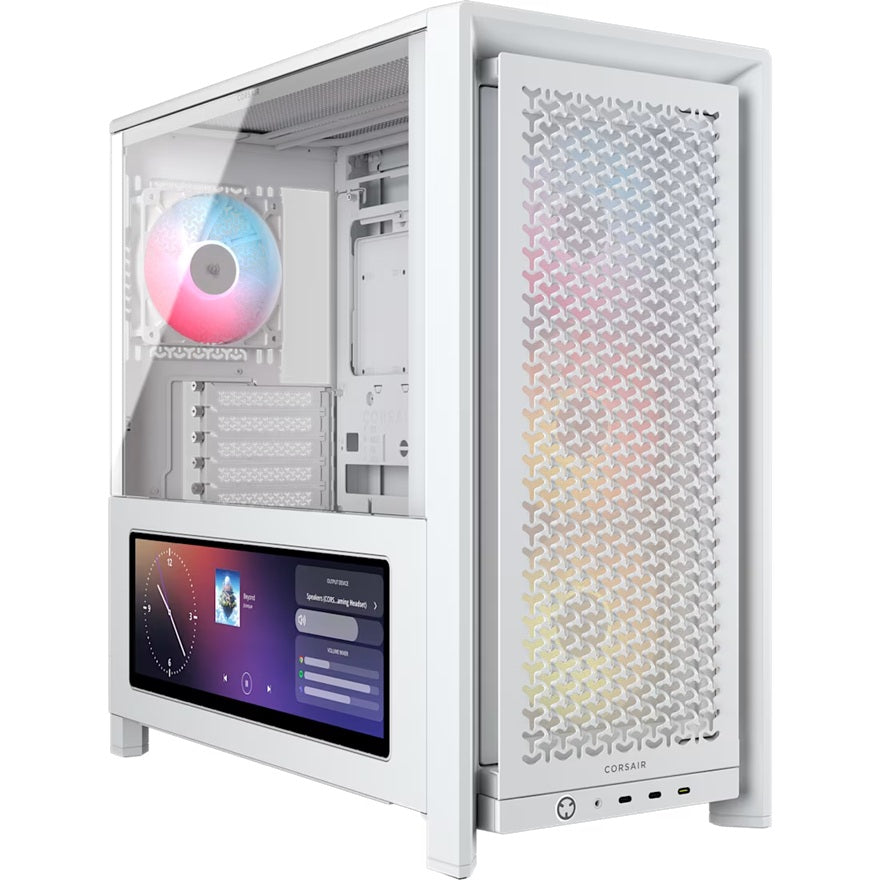

Corsair FRAME 4000D LCD RS ARGB Mid-Tower PC Case White
Corsair FRAME 4000D LCD RS ARGB Mid-Tower PC Case White
SKU:CAC-4000DLCDRS-ARGB-WH
The Corsair FRAME 4000D LCD RS ARGB is a premium mid-tower PC case with a built-in XENEON EDGE 14.5" LCD touchscreen. Supporting ATX, Micro-ATX, Mini-ITX, and E-ATX motherboards, it features four RS120 PWM ARGB fans, tempered glass panels, and flexible cooling options for high-performance builds.
Couldn't load pickup availability
- See our return policy
- 2 Years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-4000DLCDRS-ARGB-WH |
| Availability | In Stock |
Overview
- The Corsair FRAME 4000D LCD RS ARGB combines premium aesthetics with practical functionality. The integrated XENEON EDGE 14.5" LCD touchscreen provides real-time system monitoring, temperature tracking, and intuitive control directly from the case—eliminating the need for separate software interfaces.
Built for flexibility, this mid-tower supports multiple motherboard form factors and features the innovative InfiniRail™ fan mounting system. It accommodates large GPUs (up to 430mm), substantial CPU coolers (up to 170mm), and diverse radiator configurations, making it suitable for both air and liquid cooling solutions.
Designed for builders who demand visibility and control, the tempered glass left panel showcases components whilst the steel right panel provides structural rigidity. Four pre-installed RS120 PWM ARGB fans deliver reliable cooling, and the modern front I/O panel includes USB 3.2 Gen 2 Type-C connectivity for contemporary build requirements.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 4000D LCD RS ARGB |
| Product Type | Mid-Tower PC Case |
| Case Size | Mid-Tower |
| Form Factor Support | ATX, Micro-ATX, Mini-ITX, E-ATX (max 305mm x 277mm) |
| Dimensions (H x L x W) | 486mm x 490mm x 239mm |
| Weight | 12.36kg |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Colour | White |
| Case Window | Tempered Glass (Left Panel) |
| Right Panel | Steel |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Power Supply Type | ATX |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 4 |
| Expansion Slots | 7 Horizontal or 3 Vertical |
| Pre-installed Fans | 4x RS120 PWM ARGB |
| Fan Support Front | 3x 120mm, 2x 140mm, or 2x 200mm |
| Fan Support Top | 3x 120mm or 2x 140mm |
| Fan Support Rear | 1x 120mm or 1x 140mm |
| Fan Support Side | 3x 120mm or 2x 140mm |
| Fan Support Bottom | 2x 120mm |
| Radiator Support Front | 240mm, 280mm, 360mm |
| Radiator Support Top | 240mm, 280mm, 360mm |
| Radiator Support Side | 240mm, 280mm, 360mm |
| Radiator Support Rear | 120mm, 140mm |
| Radiator Support Bottom | None |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Front I/O Ports | 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out |
| Front I/O Motherboard Connections | 1x HD Audio, 1x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type-E, 1x F_PANEL |
| Reverse Connector Motherboard Support | Yes |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| Vertical Mount Support | Yes (Riser Card Sold Separately) |
| Touchscreen | XENEON EDGE 14.5" LCD (Pre-installed) |
| Warranty | 2 Years |
Key Features
Ideal For
FAQs
What is the XENEON EDGE LCD touchscreen and what can it do?
The XENEON EDGE 14.5" LCD touchscreen is a pre-installed display integrated into the case front panel. It provides real-time system monitoring and control, allowing you to track temperatures, fan speeds, and system performance directly from the case without needing a separate monitor or software interface.
Will this case support my graphics card?
The FRAME 4000D LCD RS ARGB accommodates graphics cards up to 430mm in length. Check your GPU specifications to ensure it fits within this limit. Most modern consumer graphics cards fall well within this range.
What motherboard sizes are supported?
This case supports ATX, Micro-ATX, Mini-ITX, and E-ATX motherboards (maximum 305mm x 277mm). It is compatible with reverse connector motherboards, offering additional flexibility for modern builds.
Can I use a liquid cooler in this case?
Yes. The case supports radiators up to 360mm in multiple locations: front, top, and side panels. It is compatible with popular liquid coolers including Corsair H60, H100, H115, and H150 models, as well as other compatible units.
How many fans are included?
Four RS120 PWM ARGB fans are pre-installed in the case. The chassis supports additional fan configurations depending on placement: up to 3x 120mm or 2x 140mm on front, top, and side, and up to 2x 120mm on the bottom.
What are the front I/O connectivity options?
The front I/O panel includes 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1 Type-A ports, and a combined audio in/out connector. These connect to the motherboard via dedicated headers for full functionality.
Does the case come with dust filters?
Yes, the FRAME 4000D LCD RS ARGB includes dust filtration to help maintain component cleanliness and reduce maintenance intervals.
What is the warranty period?
The FRAME 4000D LCD RS ARGB includes a 2-year manufacturer warranty covering defects in materials and workmanship.
