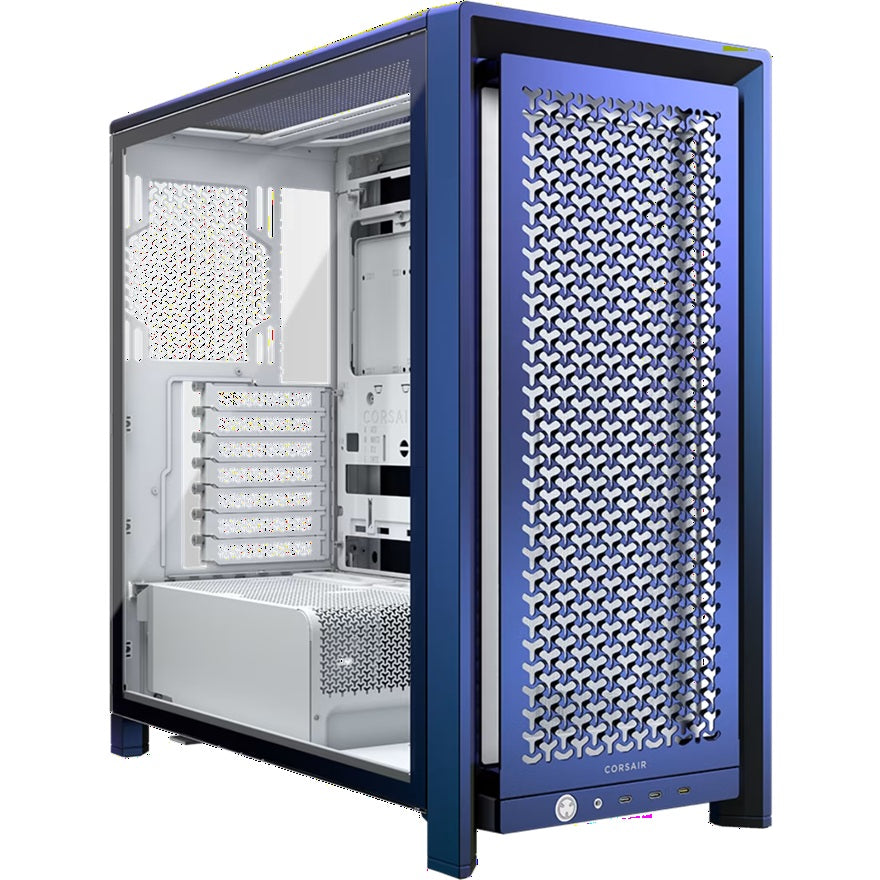

Corsair FRAME 4000D Vault Mid-Tower PC Case Nova
Corsair FRAME 4000D Vault Mid-Tower PC Case Nova
SKU:CAC-4000D-VAULT-NOVA
The Corsair FRAME 4000D Vault is a modular mid-tower case designed for high-performance PC builds. Featuring a tempered glass panel, dual 360mm radiator support, and GPU anti-sag stabilisation, it delivers exceptional cooling and building flexibility for enthusiasts and professionals.
Couldn't load pickup availability
- See our return policy
- 2 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-4000D-VAULT-NOVA |
| Availability | In Stock |
Overview
- The Corsair FRAME 4000D Vault is a premium mid-tower case engineered for builders who demand both performance and aesthetics. Its innovative InfiniRail fan mounting system and extensive radiator support make it ideal for complex liquid cooling loops, while the GPU anti-sag stabilisation arm safely accommodates high-end graphics cards up to 430mm in length.
The case combines practical engineering with visual appeal. The full tempered glass side panel showcases your build, and the chromatic Nova finish shifts colour with viewing angle and lighting. A compact PSU shroud and 37mm cable routing space allow clean, efficient cable management even in a mid-tower form factor.
Reverse connector motherboard support (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH) makes this case future-proof for next-generation motherboard designs. The modern front I/O panel features USB 3.2 Gen 2x2 Type-C and dual USB 3.2 Gen 1 Type-C ports, providing fast data transfer and device connectivity.
With support for Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards, the FRAME 4000D Vault is versatile enough for a wide range of builds while maintaining excellent thermals and build quality.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 4000D Vault |
| Case Type | Mid-Tower |
| Colour | Nova (White with chromatic finish) |
| Material | Steel, tempered glass, plastic |
| Dimensions (H x L x W) | 486mm x 490mm x 239mm |
| Weight | 12.54kg |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Case Window | Tempered glass (left side panel) |
| Right Side Panel | Steel |
| Power Supply | ATX |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Radiator Support - Bottom | None |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Side | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Fan Support - Bottom | 3x 120mm |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Case Expansion Slots | 7 horizontal or 3 vertical |
| Front I/O | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-C, 1x 3.5mm audio in/out |
| Front I/O Motherboard Connections | 1x USB 3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-pin, 1x F_PANEL, 1x HD audio |
| Reverse Connector Motherboard Support | Yes (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH) |
| Cable Routing Space | 37mm |
| Dust Filtration | Yes |
| Vertical Mount Support | Yes (riser card sold separately) |
| Included Fans | None |
| Special Features | InfiniRail fan mounting system, GPU anti-sag stabilisation arm, compact PSU shroud |
| Warranty | 2 years |
| Edition | Limited Edition (1337 units per colour) |
Key Features
Ideal For
FAQs
What motherboards are compatible with this case?
The FRAME 4000D Vault supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards (305mm x 277mm maximum). It also supports reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH.
Can this case accommodate large graphics cards?
Yes. The case supports GPUs up to 430mm in length and includes a GPU anti-sag stabilisation arm to safely support high-end graphics cards.
What radiator and cooling options does it support?
The case supports dual 360mm radiators and is compatible with 120mm, 140mm, 240mm, 280mm, and 360mm radiators mounted on the front, top, side, and rear. CPU coolers up to 170mm in height are supported.
What is included in the box?
The case comes with no pre-installed fans. It includes the chassis, tempered glass panel, PSU shroud, and GPU anti-sag stabilisation arm. Fans and radiators must be purchased separately.
Does the case support liquid cooling?
Yes. The InfiniRail fan mounting system and multiple radiator mounting points (front, top, side, rear) make it excellent for custom liquid cooling loops with support for radiators up to 360mm.
What is the cable routing space?
The case provides 37mm of cable routing space behind the motherboard tray, along with a compact PSU shroud to help manage cables efficiently.
Can this case be used for vertical GPU mounting?
Yes, vertical mount support is included, but a riser card must be purchased separately.
What is the warranty period?
The FRAME 4000D Vault comes with a 2-year manufacturer's warranty.
