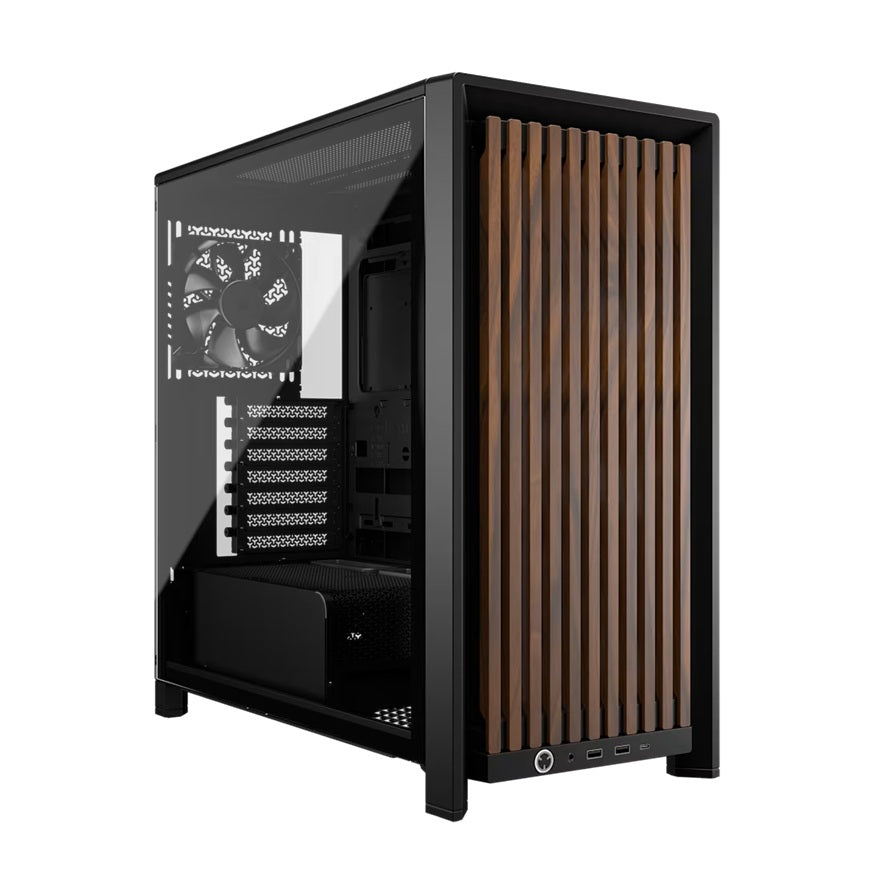

Corsair FRAME 4000D WOOD RS Mid-Tower PC Case
Corsair FRAME 4000D WOOD RS Mid-Tower PC Case
SKU:CAC-4000DWOODRS-BK
The Corsair FRAME 4000D WOOD RS is a premium mid-tower PC case featuring a real wood front panel and fully modular design. With support for E-ATX motherboards, 360mm radiators, and 430mm GPUs, it combines natural aesthetics with advanced cooling flexibility for high-performance builds.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-4000DWOODRS-BK |
| Availability | Out of Stock |
Overview
- The Corsair FRAME 4000D WOOD RS is a premium mid-tower case that blends natural wood craftsmanship with advanced PC building functionality. Its real solid wood front panel delivers a distinctive aesthetic while the fully modular interior provides exceptional flexibility for custom configurations.
The case supports a wide range of motherboard sizes (Mini-ITX through E-ATX) and accommodates high-end components including 430mm graphics cards, 170mm CPU coolers, and triple 360mm radiators. The InfiniRail Fan Mounting System allows tool-free fan placement, while the built-in GPU stabilisation arm prevents component sag in large builds.
With tempered glass side panels, extensive radiator compatibility, and reverse-connector motherboard support, this case is ideal for enthusiasts building high-performance liquid-cooled systems or showcasing premium hardware. The 12-month warranty provides peace of mind for your investment.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 4000D WOOD RS |
| Product Type | Mid-Tower PC Case |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Case Dimensions | 490mm (L) × 239mm (W) × 486mm (H) |
| Case Material | Steel, Solid Wood, Tempered Glass, Plastic |
| Colour | White/Oak |
| Weight | 11.82kg |
| Case Window | Tempered Glass (Left) and Steel (Right) |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Front Radiator Support | 360mm, 280mm, 240mm |
| Top Radiator Support | 360mm, 280mm, 240mm |
| Side Radiator Support | 360mm, 280mm, 240mm |
| Rear Radiator Support | 140mm, 120mm |
| Bottom Radiator Support | None |
| Front Fan Support | 3x 120mm, 2x 140mm, 2x 200mm |
| Top Fan Support | 3x 120mm, 2x 140mm |
| Side Fan Support | 3x 120mm, 2x 140mm |
| Rear Fan Support | 1x 120mm, 1x 140mm |
| Bottom Fan Support | 3x 120mm |
| Included Fans | 4x RS120 PWM fans |
| Internal 3.5-inch Drive Bays | 1 |
| Internal 2.5-inch Drive Bays | 2 |
| Expansion Slots | 7 Horizontal or 3 Vertical |
| Front IO Ports | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out |
| Motherboard Header Connections | 1x USB 3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |
| Reverse Connector Support | Yes |
| Vertical GPU Mount Support | Supported (Riser Card Sold Separately) |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| Power Supply Format | ATX |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the Corsair FRAME 4000D WOOD RS support?
The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305mm × 277mm, making it compatible with most standard and high-end builds.
Can I mount a 360mm radiator in this case?
Yes. The case supports 360mm radiators in three locations: front, top, and side panels, offering excellent flexibility for liquid-cooled systems.
What is the maximum GPU length supported?
The FRAME 4000D WOOD RS supports graphics cards up to 430mm in length, accommodating most high-end GPUs including dual and triple-slot designs.
Does this case support vertical GPU mounting?
Yes, vertical GPU mounting is supported, though a riser card is required and sold separately.
What fans are included with the case?
The case includes four RS120 PWM fans pre-installed for effective low-noise cooling.
Is the wood front panel real wood?
Yes, the FRAME 4000D WOOD RS features a real solid wood front panel in oak, delivering a premium natural aesthetic.
What is the warranty period?
The case comes with a 12-month manufacturer's warranty covering defects in materials and workmanship.
Does the case include dust filters?
Yes, the case features dust filtration to help keep internal components clean and maintain system performance.
