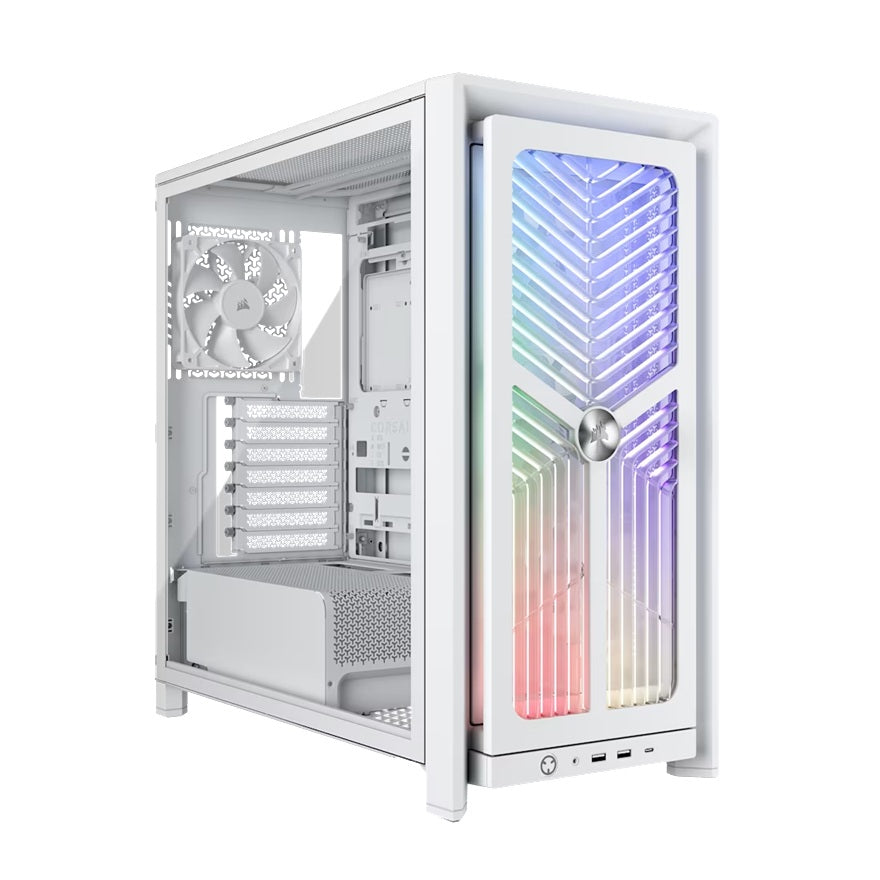

Corsair FRAME 4000X RS Mid-Tower PC Case White
Corsair FRAME 4000X RS Mid-Tower PC Case White
SKU:CAC-4000XRS-WH
The Corsair FRAME 4000X RS is a mid-tower PC case designed for high-performance custom builds. Featuring customizable RGB lighting, modular FRAME design, 405mm GPU clearance, and support for up to 360mm radiators, it delivers flexible cooling and storage options for PC enthusiasts and system builders.
Couldn't load pickup availability
- See our return policy
- 2 Years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-4000XRS-WH |
| Availability | In Stock |
Overview
- The Corsair FRAME 4000X RS is a versatile mid-tower case engineered for builders who demand both performance and customisation. Its fully-modular FRAME design allows you to reconfigure internal layouts to suit your specific cooling and storage needs, while the dual tempered glass panels showcase your build. With 405mm GPU clearance, support for up to 360mm radiators, and compatibility with up to 13 fans, it accommodates modern high-end components and advanced cooling solutions.
This case is ideal for enthusiasts planning liquid cooling loops or multi-GPU setups. The built-in GPU anti-sag stabilisation arm protects expensive graphics cards, whilst the modern front I/O includes USB 3.2 Gen 2x2 Type-C for faster data transfer. Dust filtration and extensive radiator support across multiple mounting positions (front, top, side, and rear) make thermal management straightforward.
Whether you're building a gaming rig, content creation workstation, or high-performance server, the FRAME 4000X RS provides the space, cooling capacity, and flexibility professional builders expect. Its 2-year warranty provides peace of mind on your investment.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 4000X RS |
| Case Type | Mid-Tower |
| Colour | White |
| Material | Steel, Tempered Glass, Plastic |
| Supported Motherboards | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Dimensions (H x L x W) | 486mm x 488mm x 239mm |
| Weight | 11.53kg |
| Case Windows | Dual Tempered Glass (left side and right side options) |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Radiator Support Front | 360mm, 280mm, 240mm |
| Radiator Support Top | 360mm, 280mm, 240mm |
| Radiator Support Side | 360mm, 280mm, 240mm |
| Radiator Support Rear | 140mm, 120mm |
| Fan Support Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support Top | 3x 120mm, 2x 140mm |
| Fan Support Rear | 1x 120mm, 1x 140mm |
| Fan Support Side | 3x 120mm, 2x 140mm |
| Fan Support Bottom | 3x 120mm |
| Maximum Fan Capacity | 13x 120mm fans |
| Included Fans | RS Series fans |
| Internal 3.5" Drive Bays | 1 |
| Internal 2.5" Drive Bays | 2 |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| PSU Compatibility | ATX |
| Front I/O Ports | 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A, 1x Audio in/out |
| Motherboard Connectors | 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio |
| Reverse Connector Support | Yes |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| GPU Anti-Sag Arm | Built-in |
| Vertical Mount Support | Supported (Riser card sold separately) |
| Warranty | 2 Years |
Key Features
Ideal For
FAQs
What motherboard sizes does the Corsair FRAME 4000X RS support?
The case supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards up to 305mm x 277mm. It is compatible with reverse-connector motherboards.
What is the maximum GPU length this case can accommodate?
The case supports graphics cards up to 430mm in length with front fans installed. The built-in GPU anti-sag arm helps stabilise longer cards.
Can I install liquid cooling in this case?
Yes, the case supports radiators up to 360mm in the front, top, and side positions, and 280mm/240mm radiators as well. Rear mounting supports 140mm and 120mm radiators. Compatible with Corsair H60, H100, H115, H150, NAUTILUS, and TITAN coolers.
How many fans can I install in the FRAME 4000X RS?
The case supports up to 13x 120mm fans total across multiple mounting positions: front (3x 120mm or 2x 140mm or 2x 200mm), top (3x 120mm or 2x 140mm), rear (1x 120mm or 1x 140mm), side (3x 120mm or 2x 140mm), and bottom (3x 120mm).
What connectivity options does the front panel provide?
The front panel includes 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-A ports, and 1x audio in/out jack for convenient access.
Is this case suitable for beginners or custom builders?
Yes, the fully-modular FRAME design allows flexible customisation, making it suitable for both experienced builders and those planning custom configurations. The 37mm cable routing space and dust filtration simplify builds.
What is included with the case?
The case includes RS Series fans and comes with a 2-year manufacturer warranty. Please note that the GPU riser card for vertical mounting is sold separately.
