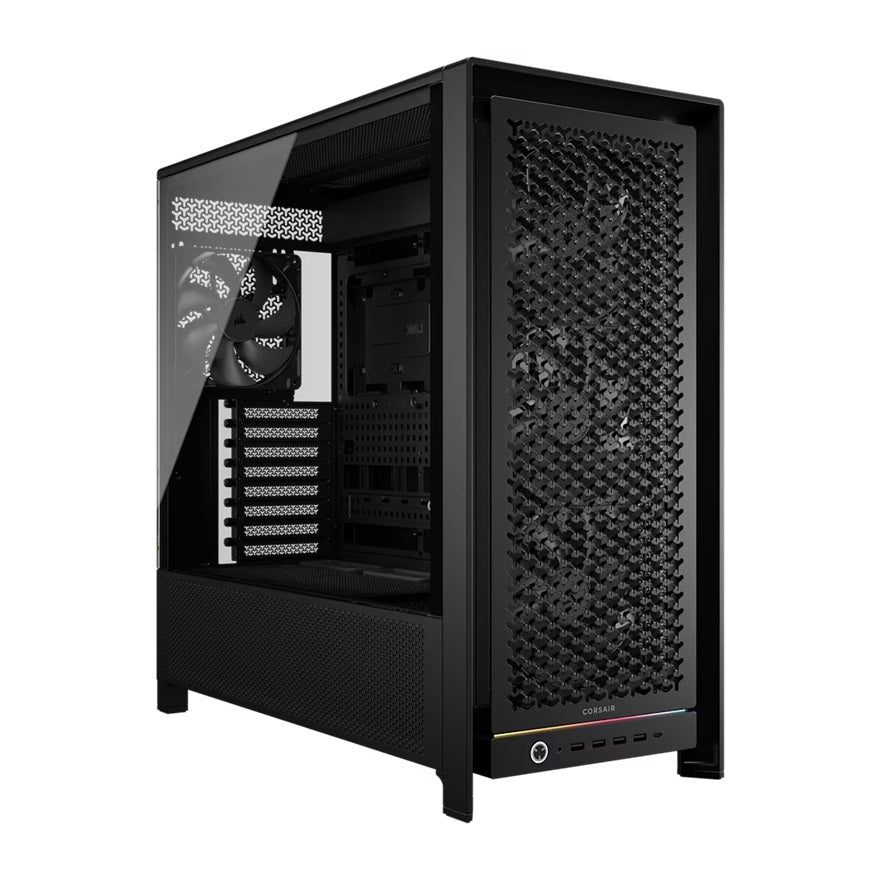

Corsair FRAME 5000D RS Mid-Tower PC Case
Corsair FRAME 5000D RS Mid-Tower PC Case
SKU:CAC-5000DRS-BK
The Corsair FRAME 5000D RS is a modular mid-tower PC case designed for high-performance gaming and workstation builds. Featuring the InfiniRail fan mounting system, RapidRoute 2.0 cable management, and support for 360mm radiators, it delivers superior airflow and customisation for IT professionals and enthusiasts.
Couldn't load pickup availability
- See our return policy
- 24 Months Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-5000DRS-BK |
| Availability | In Stock |
Overview
- The Corsair FRAME 5000D RS is a premium mid-tower case engineered for builders who demand superior cooling, spacious component compatibility, and meticulous cable management. Its fully modular design and InfiniRail fan mounting system eliminate traditional constraints, allowing you to position fans and radiators exactly where airflow matters most.
With support for graphics cards up to 450mm, CPU coolers up to 175mm, and multiple 360mm radiator configurations, this case accommodates the latest high-performance hardware. The included 4x RS140 fans with daisy-chain connections simplify installation, while RapidRoute 2.0 pegboard routing and cable looms keep wiring organised and invisible.
Build quality is exceptional: tempered glass front panel, steel construction, dust filtration, and thoughtful details like the GPU anti-sag stabilization arm protect your investment. Front I/O includes USB 3.2 Gen 2 Type-C and quad USB 3.2 Gen 1 ports for modern connectivity demands. Reverse connector motherboard compatibility ensures compatibility with cutting-edge designs.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 5000D RS |
| Product Type | Mid-Tower PC Case |
| Case Size | Mid-Tower |
| Form Factor Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm × 277mm) |
| Dimensions (H × W × D) | 542mm × 250mm × 556mm |
| Weight | 15.48 kg |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Colour | Black |
| Window | Tempered Glass (Left Side Panel) |
| Right Side Panel | Steel |
| Maximum GPU Length | 450mm |
| Maximum CPU Cooler Height | 175mm |
| Power Supply Compatibility | ATX |
| Expansion Slots | 8 Horizontal or 3 Vertical |
| Drive Bays (3.5 inch) | 2 |
| Drive Bays (2.5 inch) | 6 |
| Front I/O Ports | 1× USB 3.2 Gen 2 Type-C, 4× USB 3.2 Gen 1 Type-A, 1× Audio In/Out |
| Front I/O Motherboard Connections | 1× HD Audio, 1× USB 3.2 Gen 1, 1× USB 3.2 Gen 2 Type-E, 1× F_PANEL, 1× 5V ARGB |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Top | 420mm, 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Fan Support - Front | 3× 120mm, 3× 140mm, 2× 200mm |
| Fan Support - Top | 3× 120mm, 3× 140mm |
| Fan Support - Rear | 1× 140mm, 1× 120mm |
| Fan Support - Bottom | 4× 120mm |
| Fan Support - Side | 3× 120mm, 3× 140mm |
| Included Fans | 4× RS140 Fans with Daisy-Chain Connections |
| Cable Routing Space | 42mm |
| Dust Filtration | Yes |
| RapidRoute 2.0 Included | Yes |
| InfiniRail Fan Mounting System | Yes |
| GPU Anti-Sag Stabilization Arm | Yes |
| Reverse Connector Motherboard Support | Yes |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
| Warranty | 24 Months |
Key Features
Ideal For
FAQs
What graphics cards will fit in the FRAME 5000D RS?
The case supports graphics cards up to 450mm in length, accommodating most modern high-end GPUs including the latest enthusiast-class cards.
How many radiators can I install?
You can install up to a 360mm radiator in the front, top, or side panels; a 280mm or 240mm radiator in front, top, or side; and a 140mm or 120mm radiator in the rear. This supports triple 360mm configurations depending on layout.
Does the case come with fans?
Yes, the FRAME 5000D RS includes 4× RS140 fans with daisy-chain connections, simplifying installation and reducing cable clutter.
Is the case compatible with E-ATX motherboards?
Yes, the case supports E-ATX motherboards up to 305mm × 277mm, along with ATX, Micro-ATX, and Mini-ITX form factors.
What is the cable routing space?
The case provides 42mm of cable routing space behind the motherboard tray, combined with RapidRoute 2.0 pegboard and routing looms for organised cable management.
Does the case support liquid cooling?
Yes, the case supports multiple radiator configurations including triple 360mm setups across front, top, and side panels, making it ideal for custom liquid cooling builds.
What connectivity options are available on the front panel?
The front I/O includes 1× USB 3.2 Gen 2 Type-C, 4× USB 3.2 Gen 1 Type-A ports, and audio input/output, providing modern connectivity for peripherals and audio devices.
