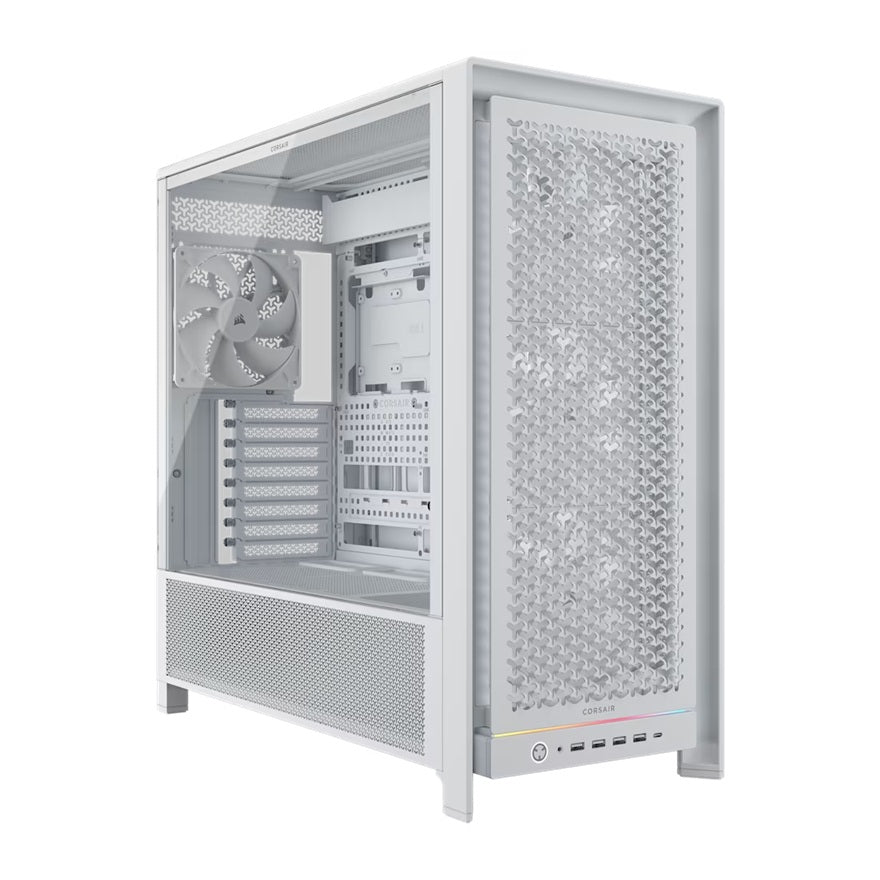

Corsair FRAME 5000D RS Mid-Tower PC Case White
Corsair FRAME 5000D RS Mid-Tower PC Case White
SKU:CAC-5000DRS-WH
The Corsair FRAME 5000D RS is a high-airflow mid-tower PC case designed for custom builds and high-performance gaming systems. Featuring a fully modular design, InfiniRail fan mounting system, and support for up to 360mm radiators, it delivers exceptional cooling and cable management for enthusiast builders.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-5000DRS-WH |
| Availability | In Stock |
Overview
- The Corsair FRAME 5000D RS combines spacious internal volume with intelligent modular design, making it an ideal platform for high-end custom PC builds. The fully modular construction allows builders to remove and reconfigure internal components, whilst the InfiniRail fan mounting system provides unlimited flexibility for cooling configurations. With support for triple 360mm radiators and generous component clearances—including 450mm GPU and 175mm CPU cooler support—this case accommodates modern high-performance hardware without compromise.
The RapidRoute 2.0 cable management system features a pegboard-style motherboard tray and integrated cable looms, significantly simplifying the building process and improving aesthetics. Front I/O includes USB 3.2 Gen 2 Type-C connectivity for modern peripherals, whilst the inclusion of four RS140 fans with daisy-chain connections provides an excellent starting point for new builds.
Tempered glass on the left side panel showcases your build, whilst dust filtration on front and bottom intakes protects components from contamination. The case supports ATX, Micro-ATX, Mini-ITX, and E-ATX motherboards, including those with reverse connector designs, ensuring compatibility with current and emerging platform standards.
Specifications
| Brand | Corsair |
|---|---|
| Model | FRAME 5000D RS |
| Product Type | Mid-Tower ATX Case |
| Case Size | Mid-Tower |
| Colour | White |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Reverse Connector Motherboard Support | Yes |
| Exterior Dimensions (H x W x D) | 542mm x 250mm x 556mm |
| Weight | 15.48kg |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Case Window | Tempered Glass (Left Side Panel) |
| Right Side Panel | Steel |
| Maximum GPU Length | 450mm |
| Maximum CPU Cooler Height | 175mm |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 6 |
| Expansion Slots | 8 Horizontal or 3 Vertical |
| Power Supply Support | ATX |
| Radiator Support Front | 360mm, 280mm, 240mm |
| Radiator Support Top | 420mm, 360mm, 280mm, 240mm |
| Radiator Support Side | 360mm, 280mm, 240mm |
| Radiator Support Rear | 140mm, 120mm |
| Radiator Support Bottom | None |
| Fan Support Front | 3x 120mm, 3x 140mm, 2x 200mm |
| Fan Support Top | 3x 120mm, 3x 140mm |
| Fan Support Side | 3x 120mm, 3x 140mm |
| Fan Support Rear | 1x 140mm, 1x 120mm |
| Fan Support Bottom | 4x 120mm |
| Included Fans | 4x RS140 Fans with daisy-chain connections |
| Front I/O Ports | 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A, 1x Audio In/Out |
| Front I/O Motherboard Connections | 1x HD Audio, 1x USB 3.2 Gen1, 1x USB-3.2 Gen2 Type-E, 1x F_PANEL, 1x 5V ARGB |
| Cable Routing Space | 42mm |
| Dust Filtration | Yes |
| GPU Anti-Sag Stabilization | Yes |
| InfiniRail Fan Mounting | Yes |
| RapidRoute Cable Management | 2.0 Pegboard Tray Included |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the FRAME 5000D RS support?
The FRAME 5000D RS supports Mini-ITX, Micro-ATX, ATX, and E-ATX motherboards (up to 305mm x 277mm). It is also compatible with reverse connector motherboards, providing flexibility for current and emerging platform standards.
What is the maximum GPU and CPU cooler size this case supports?
The case accommodates graphics cards up to 450mm in length and CPU coolers with a maximum height of 175mm. It also supports triple 360mm radiators for liquid cooling solutions.
What radiator configurations are supported?
The FRAME 5000D RS supports 360mm, 280mm, and 240mm radiators on the front panel; 420mm, 360mm, 280mm, and 240mm on the top; 360mm, 280mm, and 240mm on the side; and 140mm or 120mm radiators on the rear. Bottom mounting is not supported.
Does the case include fans?
Yes, the case includes four Corsair RS140 fans with daisy-chain connections, providing immediate cooling capability out of the box.
What cable management features does this case offer?
The case includes RapidRoute 2.0 cable management with a pegboard-style motherboard tray and integrated cable looms. It provides 42mm of cable routing space behind the motherboard tray for clean cable runs.
Does the case support vertical GPU mounting?
Yes, the FRAME 5000D RS supports vertical GPU mounting, though a riser card is required and sold separately.
What front I/O connections are available?
The front I/O includes 1x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A ports, and 1x audio in/out jack. Motherboard connectors include HD Audio, USB 3.2 Gen1, USB 3.2 Gen2 Type-E, F_PANEL, and 5V ARGB.
How much storage space does the case provide?
The case features 2x internal 3.5" drive bays and 6x internal 2.5" drive bays, allowing for flexible storage configurations in custom builds.
