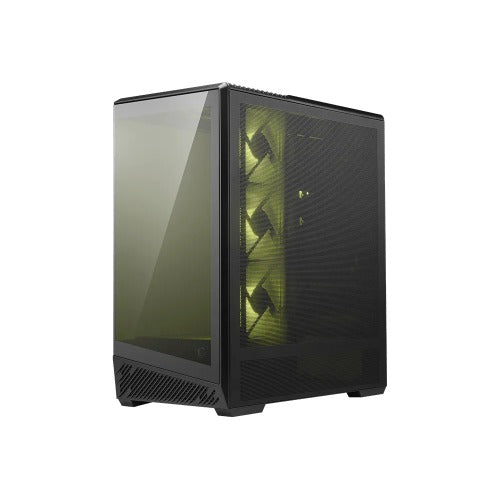

MSI MAG PANO 130R PZ Mid-Tower PC Case
MSI MAG PANO 130R PZ Mid-Tower PC Case
SKU:CAM-PANO130RPZ-BK
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Cases & Accessories |
| SKU | CAM-PANO130RPZ-BK |
| Availability | In Stock |
Overview
- The MSI MAG PANO 130R PZ is a premium mid-tower case engineered for performance-focused builds. Its innovative back-connect motherboard support streamlines cable routing, whilst the rotatable PCIe bracket enables quick switching between horizontal and vertical GPU mounting—ideal for showcase builds or space-constrained setups.
Thermal performance is a key strength. The case supports up to 10 fans and 360mm radiators on both top and side positions, ensuring efficient heat dissipation even in demanding workloads. Pre-installed reverse-blade ARGB fans come ready to display, whilst the lower chamber's ventilation design further enhances airflow.
Build quality and usability are evident throughout. Magnetic dust filters, support for drives up to 3.5 inches, and a spacious 400mm GPU clearance accommodate modern high-end graphics cards. The 7 expansion slots and flexible fan/radiator mounting options provide extensive customisation for both air and liquid cooling systems.
Whether building a gaming machine or professional workstation, the MAG PANO 130R PZ delivers the thermal capacity, connectivity, and flexibility needed for contemporary high-performance systems.
Specifications
| Form Factor | Mid-Tower |
|---|---|
| Motherboard Support | ATX, Micro-ATX, Mini-ITX (back-connect support for ATX and Micro-ATX) |
| Maximum GPU Length | 400mm (15.75 inches) |
| Maximum CPU Cooler Height | 165mm (6.50 inches) |
| Expansion Slots | 7 |
| Drive Mounting | Up to 3x 2.5-inch SSD, Up to 2x 3.5-inch HDD (maximum 3 drives total depending on configuration) |
| Front Panel I/O | 2x USB 5Gbps Type-A, 1x USB 20Gbps Type-C, 1x Audio-Out/Mic-In, 1x Reset Button, 1x Power Button |
| Fan Support | Top: 3x 120mm or 2x 140mm; Rear: 1x 120mm; Side: 3x 120mm; Bottom: 3x 120mm (above power shroud) |
| Pre-installed Fans | 1x 120mm ARGB rear fan, 3x 120mm ARGB reverse-blade side fans |
| Maximum Total Fans | 10 fans |
| Radiator Support | Top: 120/140/240/280/360mm; Rear: 120mm; Side: 120/240/360mm |
| Power Supply Support | ATX, maximum PSU length 180mm (7.09 inches) |
| Dust Filtration | Magnetic top filter, removable bottom filter |
| Dimensions | 460 x 232 x 490mm (18.11 x 9.25 x 19.29 inches) |
| Net Weight | 8.37kg (18.45 lbs) |
| Colour | Black |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the MAG PANO 130R PZ support?
The case supports ATX, Micro-ATX, and Mini-ITX motherboards in standard orientation. Back-connect ATX and Micro-ATX motherboards are also supported for streamlined cable management.
Can I fit a large graphics card in this case?
Yes, the case accommodates graphics cards up to 400mm in length, making it suitable for most modern high-end GPUs. The rotatable PCIe bracket allows flexible mounting in horizontal or vertical orientation.
Does this case support liquid cooling?
Yes. The case supports 360mm radiators on the top and side mounting positions, as well as smaller radiators (120/140/240/280mm) in various locations, making it ideal for both air and liquid cooling builds.
How many fans can I install in total?
The case supports up to 10 fans across multiple mounting positions: top (3x 120mm or 2x 140mm), rear (1x 120mm), side (3x 120mm), and bottom (3x 120mm). It comes pre-installed with 4 ARGB fans.
What storage options are available?
The case supports up to 3x 2.5-inch SSDs and up to 2x 3.5-inch HDDs, though a maximum of 3 drives total can be mounted depending on your configuration and other components.
What front panel connectivity does this case offer?
The front panel includes 2x USB 5Gbps Type-A ports, 1x USB 20Gbps Type-C port, audio-out/mic-in jack, reset button, and power button.
Does the case come with dust filters?
Yes, the case includes magnetic top and removable bottom dust filters to help keep your system clean whilst maintaining optimal airflow.
