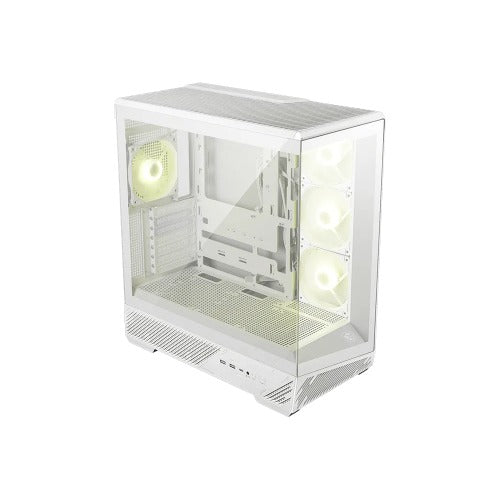

MSI MAG PANO 130R PZ Mid-Tower PC Case White
MSI MAG PANO 130R PZ Mid-Tower PC Case White
SKU:CAM-PANO130RPZ-WH
The MSI MAG PANO 130R PZ is a mid-tower PC case supporting ATX, Micro-ATX, and Mini-ITX motherboards. Featuring a rotatable GPU bracket, advanced airflow layout with support for up to 10 fans and 360mm radiators, and back-connect cable management, it delivers efficient cooling and easy builds for gaming and workstation systems.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Cases & Accessories |
| SKU | CAM-PANO130RPZ-WH |
| Availability | In Stock |
Overview
- The MSI MAG PANO 130R PZ is a mid-tower case engineered for builders who demand flexibility, performance, and clean cable management. Its innovative rotatable GPU bracket allows quick switching between horizontal and vertical installations, making it ideal for both showcase and space-constrained builds. The case supports up to 10 fans and 360mm radiators on the top and side chambers, providing exceptional cooling capacity for high-end components. With support for ATX, Micro-ATX, and Mini-ITX motherboards—including MSI PROJECT ZERO back-connect boards—this case simplifies cable routing and improves internal airflow through optimised vent design. Pre-installed ARGB fans with reverse blade technology on the side showcase lighting without obstruction, while magnetic dust filters keep your system clean and running smoothly.
Specifications
| Brand | MSI |
|---|---|
| Model | MAG PANO 130R PZ |
| Colour | White |
| Case Type | Mid-Tower |
| Form Factor Support | ATX, Micro-ATX, Mini-ITX (Back-connect: ATX, Micro-ATX) |
| Maximum GPU Length | 400mm |
| Maximum CPU Cooler Height | 165mm |
| Expansion Slots | 7 |
| Drive Support | Up to 3 x 2.5" SSD, Up to 2 x 3.5" HDD (3 total drives max depending on configuration) |
| Fan Support Top | 3 x 120mm or 2 x 140mm |
| Fan Support Rear | 1 x 120mm |
| Fan Support Side | 3 x 120mm |
| Fan Support Bottom | 3 x 120mm |
| Pre-installed Fans | 1 x 120mm ARGB rear fan, 3 x 120mm ARGB reverse blade side fans |
| Radiator Support Top | 120/140/240/280/360mm |
| Radiator Support Rear | 120mm |
| Radiator Support Side | 120/240/360mm |
| Power Supply Support | ATX |
| Maximum PSU Length | 180mm |
| Front Panel I/O | 2 x USB 5Gbps Type-A, 1 x USB 20Gbps Type-C, 1 x 3.5mm Audio-Out/Mic-In, Reset Button, Power Button |
| Dimensions | 460 x 232 x 490mm |
| Weight | 8.37kg (White) |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the MSI MAG PANO 130R PZ support?
This case supports ATX, Micro-ATX, and Mini-ITX motherboards. Back-connect compatibility is available for ATX and Micro-ATX formats, allowing streamlined cable management through the rear.
Can I install a vertical GPU with this case?
Yes. The MAG PANO 130R PZ features a rotatable GPU bracket that allows a quick 90° rotation to switch between horizontal and vertical GPU installations without tools.
What cooling options does this case support?
The case supports up to 10 fans and radiators up to 360mm on the top and side chambers. Pre-installed fans include 1 x 120mm rear ARGB and 3 x 120mm side ARGB reverse blade fans.
How much storage can I fit in this case?
The case supports up to 3 x 2.5" SSDs and 2 x 3.5" HDDs, with a maximum of 3 drives total depending on your configuration and other components.
What is the maximum graphics card length supported?
This case accommodates graphics cards up to 400mm in length, suitable for most modern high-performance GPUs.
Does the case come with dust filters?
Yes. The MAG PANO 130R PZ includes magnetic top dust filters and removable bottom filters to maintain airflow while protecting internal components from dust.
What USB ports are available on the front panel?
The front panel features 2 x USB 5Gbps Type-A ports and 1 x USB 20Gbps Type-C port, plus a 3.5mm audio jack and reset/power buttons.
