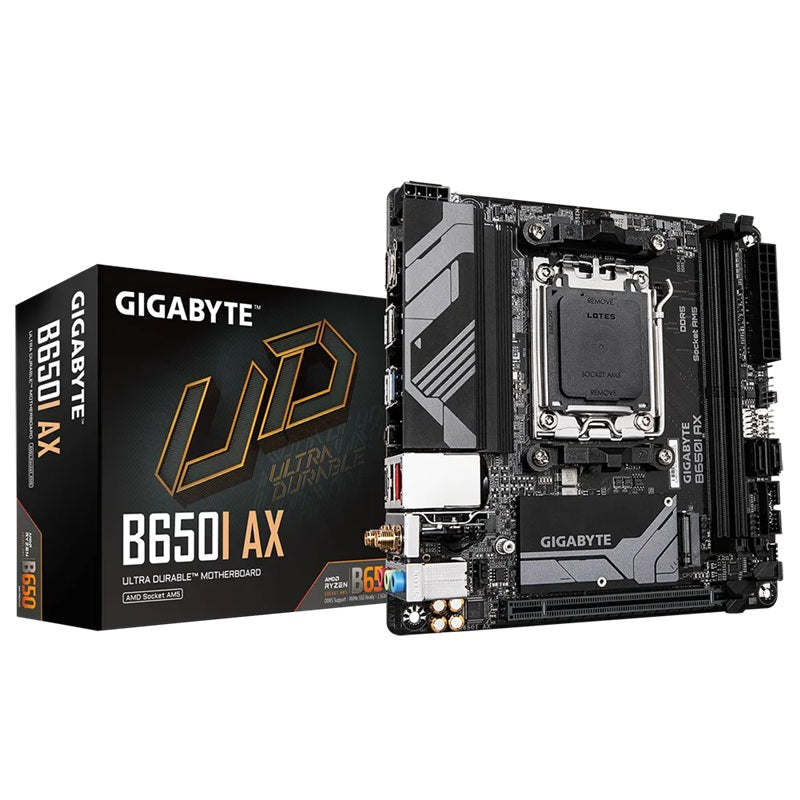

Gigabyte B650I AX Mini-ITX Motherboard
Gigabyte B650I AX Mini-ITX Motherboard
SKU:MBG-B650I-AX
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B650I-AX |
| Availability | In Stock |
Overview
- The Gigabyte B650I AX is a feature-rich Mini-ITX motherboard built on the AMD B650 chipset, delivering modern performance in a compact package. It supports the latest AMD Ryzen 7000 and 8000 series processors via the Socket AM5 platform, making it ideal for builders seeking high-end computing in space-limited environments.
With DDR5 memory support up to 96GB and PCIe 4.0 connectivity, the B650I AX provides the bandwidth needed for demanding workloads. Integrated Wi-Fi 6E and Bluetooth 5.3 eliminate the need for separate network cards, whilst DisplayPort 1.4 and HDMI 2.1 connectivity support 4K gaming and professional displays at high refresh rates.
The motherboard includes storage flexibility with one M.2 NVMe slot and two SATA 6Gb/s connectors, both supporting RAID configurations for data redundancy. The compact Mini-ITX design makes it perfect for small-form-factor systems, gaming rigs, and professional workstations without compromising on features or expandability.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | B650I AX |
| Form Factor | Mini-ITX |
| Chipset | AMD B650 |
| CPU Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 7000 and 8000 series processors |
| Memory Type | DDR5 |
| Memory Slots | 2 x DDR5 DIMM |
| Maximum Memory | 96GB (48GB per DIMM) |
| Memory Speeds | DDR5 4400 / 4800 / 5200 / 5600 / 6000 / 6200 / 6400 MT/s (OC) |
| Memory Features | AMD EXPO, XMP support, Dual channel architecture |
| PCI Express Slots | 1 x PCIe x16 (CPU-integrated, supports GPU or NVMe SSD) |
| PCIe Generations | PCIe 4.0 |
| M.2 Slots | 1 x M.2 Socket 3 (Type 2280, PCIe 4.0 x4/x2) |
| SATA Connectors | 2 x SATA 6Gb/s |
| RAID Support | RAID 0 and RAID 1 (NVMe and SATA) |
| Video Outputs | 1 x DisplayPort 1.4, 1 x HDMI 2.1 |
| Maximum Display Resolution | 3840x2160@144Hz (DisplayPort), 4096x2160@60Hz (HDMI) |
| Integrated Graphics | Yes (AMD integrated graphics processor) |
| Wi-Fi | Realtek Wi-Fi 6E RTL8852CE, 802.11a/b/g/n/ac/ax, 2.4/5/6GHz |
| Bluetooth | Bluetooth 5.3 |
| USB 3.2 Ports | 3 x USB 3.2 |
| USB Type-C Ports | 1 x USB-C |
| USB 2.0 Ports | 4 x USB 2.0 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the Gigabyte B650I AX?
The B650I AX supports AMD Ryzen 7000 and 8000 series processors via the Socket AM5 platform. Refer to the CPU support list for detailed processor compatibility.
What is the maximum memory capacity and speed?
The motherboard supports up to 96GB of DDR5 memory across two DIMM slots. Supported speeds range from DDR5 4400 MT/s up to 6400 MT/s (OC), with AMD EXPO and XMP profile support for easy overclocking.
Does this motherboard have Wi-Fi and Bluetooth?
Yes. The B650I AX features Realtek Wi-Fi 6E (supporting 2.4/5/6GHz bands) and Bluetooth 5.3, eliminating the need for separate wireless expansion cards.
What storage options are available?
The motherboard includes one M.2 NVMe slot (PCIe 4.0 x4/x2) and two SATA 6Gb/s connectors. Both support RAID 0 and RAID 1 configurations for redundancy and performance.
Can I use integrated graphics or do I need a dedicated GPU?
The B650I AX has an integrated graphics processor with DisplayPort 1.4 and HDMI 2.1 outputs, supporting resolutions up to 4K. This allows operation without a dedicated GPU, though a graphics card can be installed in the PCIe x16 slot if needed.
Is the B650I AX suitable for small-form-factor builds?
Yes. The Mini-ITX form factor makes it ideal for compact and small-form-factor systems, whilst maintaining features like PCIe 4.0, DDR5 support, and modern connectivity options.
What video outputs and resolutions does it support?
The motherboard features one DisplayPort 1.4 and one HDMI 2.1 port. DisplayPort supports up to 3840x2160@144Hz, while HDMI supports up to 4096x2160@60Hz, both with HDR support.
What is the warranty period?
The Gigabyte B650I AX includes a 36-month warranty, providing peace of mind for your investment.
