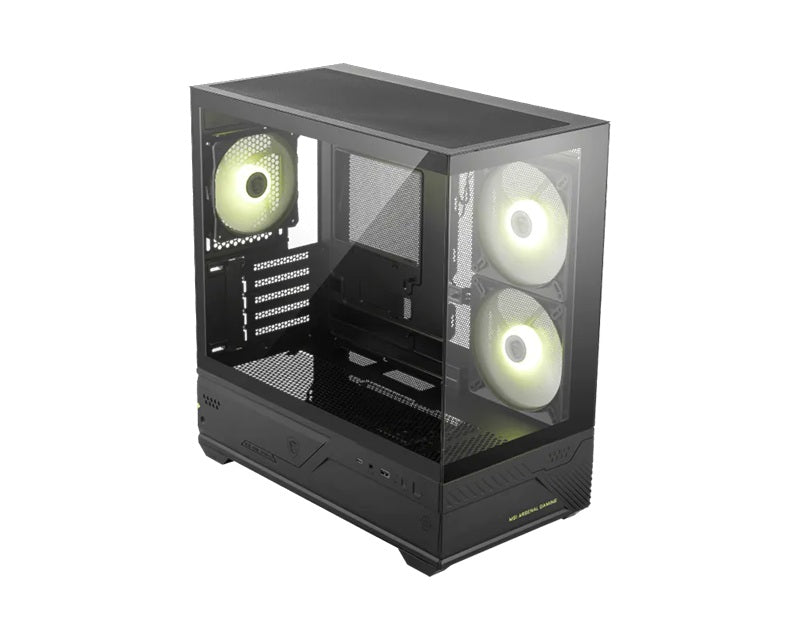

MSI MAG PANO M110R Mini Tower PC Case
MSI MAG PANO M110R Mini Tower PC Case
SKU:CAM-MAGPANOM110R
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Cases & Accessories |
| SKU | CAM-MAGPANOM110R |
| Availability | In Stock |
Overview
- The MSI MAG PANO M110R is a modern mini tower case engineered for builders who demand both performance and visual impact. Its signature 270-degree panoramic glass panel creates an immersive three-sided view, transforming your PC into a visual centerpiece worthy of any desk setup.
The case combines practical engineering with aesthetics. It comes pre-loaded with dual 140mm ARGB side fans and a 120mm rear ARGB fan, all controlled via an integrated 1-to-4 ARGB control board for clean cable management. The tool-free front and side panels make installation and maintenance straightforward, even for first-time builders.
With support for up to 9 fans, 360mm radiator mounting, and graphics cards up to 410mm, the MAG PANO M110R delivers cooling flexibility typically found in larger chassis. It accommodates both Micro-ATX and Mini-ITX motherboards across 5 expansion slots, making it ideal for compact high-performance gaming builds, content creation systems, or custom showcase builds. The case includes USB Type-C and USB 3.0 front connectors for modern connectivity.
Specifications
| Brand | MSI |
|---|---|
| Model | MAG PANO M110R |
| Case Type | Mini Tower |
| Form Factor | Mini Tower |
| Motherboard Compatibility | Micro-ATX, Mini-ITX |
| Colour | Black |
| Dimensions (DxWxH) | 434 x 225 x 444 mm |
| Net Weight | 5.7 kg |
| Gross Weight | 8.0 kg |
| Glass Panel | 270-degree panoramic tempered glass |
| Maximum GPU Length | 410 mm |
| Maximum CPU Cooler Height | 165 mm |
| Expansion Slots | 5 |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm |
| Front I/O Ports | 1 x USB Type-C 20Gbps, 1 x USB Type-A 5Gbps, 1 x 3.5mm audio/mic jack, 1 x LED switch, 1 x power button |
| Drive Mount Support | 1 x 2.5-inch, 1 x 3.5-inch, 2 x 2.5-inch/3.5-inch combo |
| Pre-installed Fans | 2 x 140mm ARGB reverse blade side fans, 1 x 120mm ARGB rear fan |
| Fan Support (Top) | 3 x 120mm or 2 x 140mm |
| Fan Support (Rear) | 1 x 120mm |
| Fan Support (Side) | 2 x 120mm or 2 x 140mm |
| Fan Support (Bottom) | 3 x 120mm |
| Radiator Support (Top) | 120mm, 140mm, 240mm, 280mm, 360mm |
| Radiator Support (Rear) | 120mm |
| Radiator Support (Side) | 120mm, 240mm |
| ARGB Control | 1-to-4 ARGB control board with PWM support |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Is the MSI MAG PANO M110R suitable for water cooling?
Yes. The case supports radiators up to 360mm on the top mount and up to 240mm on the side mount, making it compatible with custom water cooling loops and AIO (all-in-one) liquid coolers.
What motherboard types does this case support?
The MAG PANO M110R supports Micro-ATX and Mini-ITX motherboards. It does not support full-size ATX boards.
How many fans can I install in this case?
The case supports up to 9 fans total across multiple mounting points: top (3 x 120mm or 2 x 140mm), rear (1 x 120mm), side (2 x 120mm or 2 x 140mm), and bottom (3 x 120mm). It comes pre-installed with 3 ARGB fans.
Can I install a large graphics card in this case?
Yes, the MAG PANO M110R supports graphics cards up to 410mm in length, accommodating most modern high-performance GPUs within this compact form factor.
Do I need any special tools to open the panels?
No. Both the front and side tempered glass panels are tool-free and easily removable, providing quick access to internal components for installation and maintenance.
What power supply size does this case require?
The case supports standard ATX power supplies with a maximum length of 200mm. Ensure your PSU fits within this dimension when selecting a unit.
Does the case include ARGB fans?
Yes. It comes pre-installed with dual 140mm ARGB fans on the sides and one 120mm ARGB fan at the rear. These are controlled via the integrated 1-to-4 ARGB control board.
