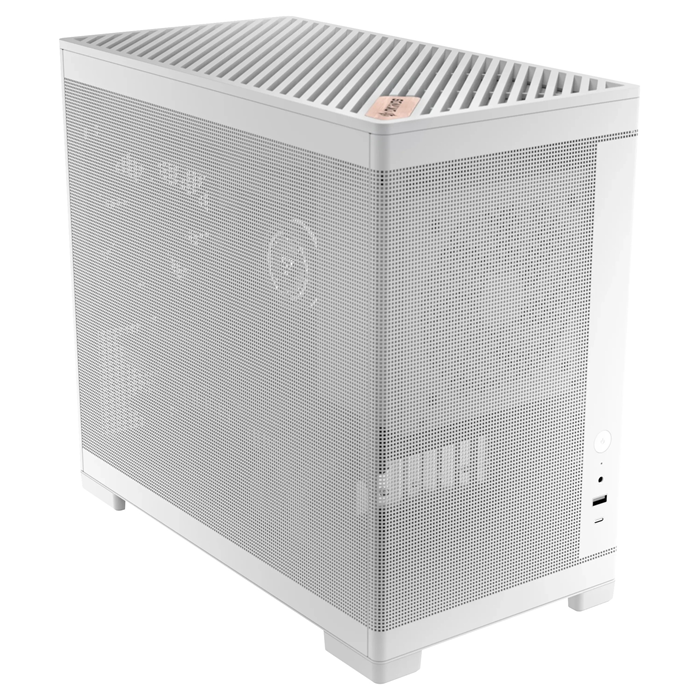

OKINOS Mini Art 4 White Mini Tower Case
OKINOS Mini Art 4 White Mini Tower Case
SKU:CAO-MINIART-4-WH
The OKINOS Mini Art 4 is a compact 24.5L mini tower case designed for Micro-ATX and ITX builds. Featuring vertical airflow design, USB-C 10Gbps front I/O, 240mm radiator support, and tool-free mesh panels, it delivers excellent thermals and cable management for high-performance compact systems.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | OKINOS |
|---|---|
| Category | Cases & Accessories |
| SKU | CAO-MINIART-4-WH |
| Availability | In Stock |
Overview
- The OKINOS Mini Art 4 is a thoughtfully designed mini tower case that maximises performance in a compact footprint. Its 24.5L chassis accommodates Micro-ATX and ITX motherboards whilst supporting modern cooling solutions, including 240mm top radiators and high-performance air cooling.
Built for builders who refuse to compromise on thermals or aesthetics, the Mini Art 4 features a vertical airflow design that promotes smooth upward airflow from the base to the top of the case, effectively dissipating heat from GPU, CPU, and power supply. The full mesh construction paired with top and bottom dust filters maintains excellent ventilation whilst protecting your components.
Convenience is built in with USB-C 3.2 Gen 2 (10Gbps) front I/O, tool-free panel access, and intelligent cable management that accommodates up to 150mm power supplies. The case supports GPUs up to 330mm in length and CPU coolers up to 165mm, making it suitable for high-spec compact builds without unnecessary compromises.
Specifications
| Model | Mini Art 4 |
|---|---|
| Model Number | OKICC-MA4-MATXW |
| Form Factor | Mini Tower |
| Chassis Volume | 24.5L |
| Dimensions (DWH) | 395 x 200 x 343 mm |
| Materials | Steel, Plastic, Wood |
| Motherboard Support | Micro-ATX, ITX |
| Front Panel I/O | Power switch, 1x USB 3.0, 1x USB-C 3.2 Gen 2 (10Gbps), 3.5mm headphone/mic combo jack |
| Side Panel | Full mesh |
| Drive Bays | 1x 3.5", 1x 2.5", 1x 2.5" |
| Expansion Slots | 4 |
| Fan Support Top | 2x 120mm |
| Fan Support Bottom | 2x 120mm |
| Fan Support Rear | 1x 120mm |
| Included Fans | 2x 120mm H12R 3-pin reverse fans (bottom), 1x 120mm H12 3-pin fan (rear) |
| Radiator Support Top | 240mm or 120mm |
| Radiator Support Rear | 120mm |
| Max GPU Length | 330mm (PSU ≤140mm) or 280mm (PSU >140mm) |
| Max CPU Cooler Height | 165mm |
| Max PSU Length | 150mm (without cable) |
| Dust Filters | Top and bottom |
| Net Weight | 4.04 kg |
| Gross Weight | 4.99 kg |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard types does the OKINOS Mini Art 4 support?
The Mini Art 4 supports Micro-ATX and ITX form factor motherboards, making it ideal for compact builds without limiting component selection.
Can I install liquid cooling in this case?
Yes, the case supports a 240mm radiator at the top and a 120mm radiator at the rear, making it suitable for custom liquid cooling builds.
What is the maximum GPU length this case can accommodate?
The case supports GPUs up to 330mm in length if your power supply is 140mm or shorter, or up to 280mm with larger power supplies.
How many fans are included with the Mini Art 4?
The case includes three 120mm fans: two reverse-flow fans at the bottom and one standard fan at the rear.
Does the Mini Art 4 have good dust protection?
Yes, it features full-size dust filters at the top and bottom, combined with full mesh panels that filter dust whilst maintaining excellent airflow.
What cooling capacity does the Mini Art 4 support?
It supports air coolers up to 165mm in height and liquid cooling solutions up to 240mm radiators, providing flexible thermal management options.
Is cable management easy in this compact case?
Yes, the case offers optimised cable management with 25mm clearance at the front and 8mm behind the motherboard tray, plus tool-free panels for easy access.
