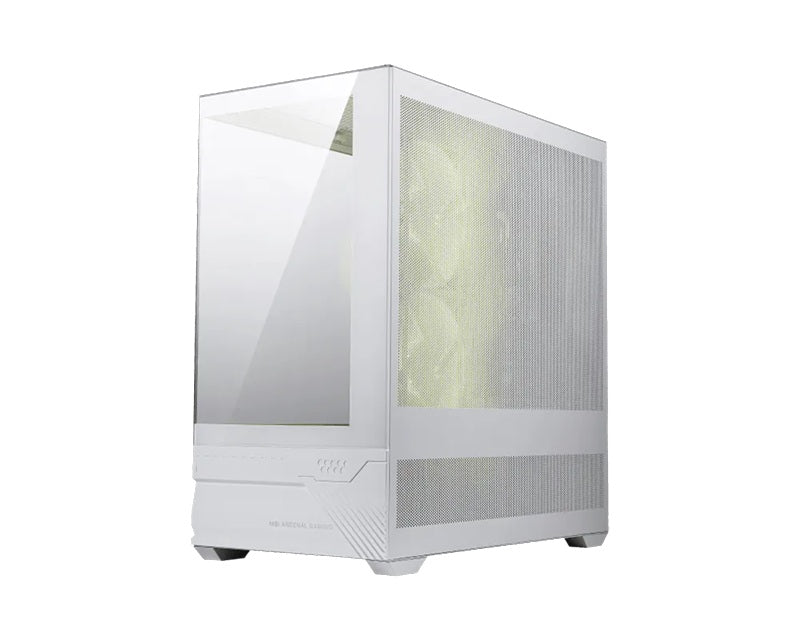

MSI MAG PANO M110R White Mini Tower PC Case

MSI MAG PANO M110R White Mini Tower PC Case

CAM-MAGPANOM110R-WH

The MSI MAG PANO M110R is a compact mini-tower case designed for high-end PC builds. Featuring a 270-degree panoramic glass panel, pre-installed ARGB fans, and support for up to 360mm radiators, it delivers stunning visuals and efficient cooling for micro-ATX and mini-ITX syst...
$123.20 AUD
$123.20 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
No reviews yet

Product Information

BrandMSI
CategoryCases & Accessories
SKUCAM-MAGPANOM110R-WH
AvailabilityIn Stock
MSI MAG PANO M110R White Mini Tower PC Case$123.20
$123.20
Overview
  • The MSI MAG PANO M110R is a premium mini-tower case engineered for builders who demand both performance and visual impact. Its signature 270-degree panoramic glass panel transforms your PC into a stunning display piece, while the tool-free panel design and generous fan/radiator support make it equally practical for installation and upgrades.

    With support for micro-ATX and mini-ITX motherboards, the case offers surprising versatility within a compact 434 x 225 x 444mm footprint. Pre-installed ARGB fans and an integrated 1-to-4 control board provide seamless RGB customisation without additional controllers or complex wiring.

    The case excels in thermal management, accommodating up to nine fans and a 360mm radiator across multiple mounting positions. Its side-panel ventilation and flexible mounting options ensure efficient heat dissipation for high-end components, whilst the 410mm GPU clearance and 165mm CPU cooler support accommodate most modern high-performance hardware.
Specifications
BrandMSI
ModelMAG PANO M110R
Product TypeMini Tower PC Case
Case Form FactorMini Tower
Supported Motherboard Form FactorsMicro-ATX, Mini-ITX
Expansion Slots5
Maximum GPU Length410 mm
Maximum CPU Cooler Height165 mm
Dimensions434 x 225 x 444 mm (D x W x H)
Net Weight5.7 kg
Gross Weight8.0 kg
Front Panel I/O - USB Type-C1 x USB 20Gbps
Front Panel I/O - USB Type-A1 x USB 5Gbps
Front Panel I/O - Audio1 x Mic In / Audio Out
Front Panel I/O - Buttons1 x Power Button, 1 x LED Switch Button
Drive Bays - 2.5 inch1 x 2.5"
Drive Bays - 3.5 inch1 x 3.5"
Drive Bays - Combo2 x 2.5" / 3.5" Combo
Power Supply SupportATX
Maximum PSU Length200 mm
Pre-installed Fans - Side2 x 140 mm ARGB (Reverse Blade)
Pre-installed Fans - Rear1 x 120 mm ARGB
Fan Mount - Top3 x 120 mm or 2 x 140 mm
Fan Mount - FrontNone
Fan Mount - Rear1 x 120 mm
Fan Mount - Side2 x 120 mm or 2 x 140 mm
Fan Mount - Bottom3 x 120 mm
Radiator Support - Top120 / 140 / 240 / 280 / 360 mm
Radiator Support - FrontNone
Radiator Support - Rear120 mm
Radiator Support - Side120 / 240 mm
Radiator Support - BottomNone
Tempered Glass Panel270-degree panoramic, tool-free removal
ARGB Control1-to-4 ARGB + PWM control board
Warranty12 months
Key Features
270-degree panoramic tempered glass panel for immersive edge-to-edge viewing
Pre-installed dual 140mm ARGB side fans and 120mm rear fan with 1-to-4 ARGB control board
Supports up to nine fans and one 360mm radiator for advanced cooling configurations
Tool-free removable front and side panels for easy installation and maintenance
Supports micro-ATX and mini-ITX motherboards with five expansion slots
Accommodates graphics cards up to 410mm and CPU coolers up to 165mm
USB-C 20Gbps and USB-A 5Gbps front I/O connectivity
Ideal For
High-performance gaming PC builds with custom cooling loops
Compact enthusiast systems that prioritise aesthetics and RGB lighting
Small form factor builds requiring efficient thermal management
PC builders wanting showcase-quality cases with tool-free assembly
Systems integrators building compact workstations and content creation rigs
FAQs
What motherboard sizes does the MAG PANO M110R support?

The case supports micro-ATX and mini-ITX motherboards, making it ideal for compact yet powerful builds.

Can I install a liquid cooler in this case?

Yes, the case supports radiators up to 360mm on the top panel, 240mm on the side, and 120mm on the rear, allowing for various liquid cooling configurations.

How many fans can the case accommodate?

The case supports up to nine fans across multiple mounting positions, with three pre-installed ARGB fans included.

What is the maximum GPU length supported?

The case supports graphics cards up to 410mm in length, accommodating most high-end modern GPUs.

Is RGB control included?

Yes, the case includes a 1-to-4 ARGB + PWM control board for managing up to four independent ARGB and PWM fans with clean cable management.

Are the glass panels easy to remove?

Yes, the front and side tempered glass panels are tool-free and easily removable for hassle-free installation and maintenance.

What front I/O connections are available?

The case features one USB Type-C 20Gbps port, one USB Type-A 5Gbps port, and a combined mic in / audio out jack for modern connectivity.

What power supplies are compatible?

The case supports standard ATX power supplies up to 200mm in length.
