OKINOS AQUA UNO SCARLET Mini Tower PC Case
OKINOS AQUA UNO SCARLET Mini Tower PC Case
SKU:CAO-AQUA-UNO-SCARLET
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | OKINOS |
|---|---|
| Category | Cases & Accessories |
| SKU | CAO-AQUA-UNO-SCARLET |
| Availability | In Stock |
Overview

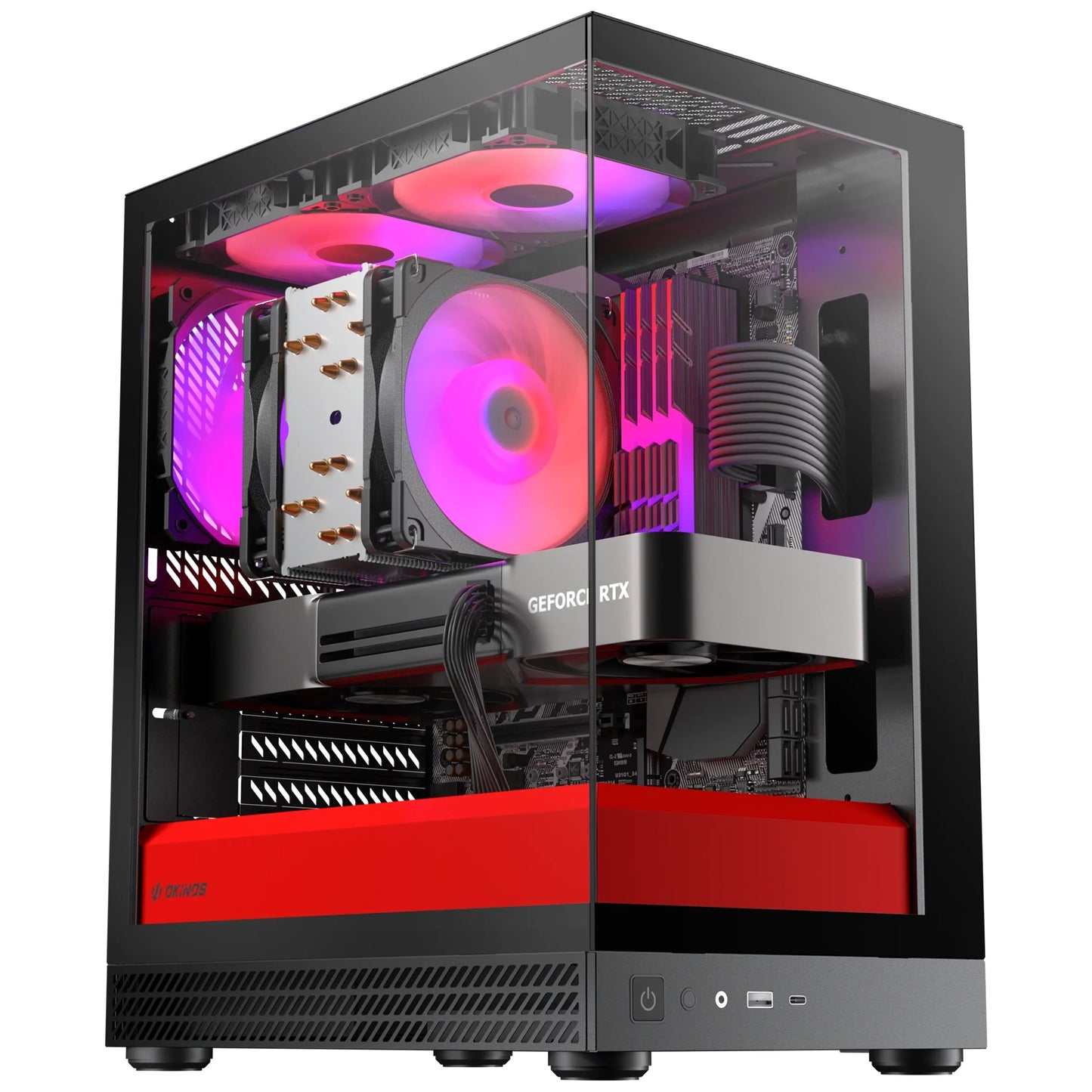

- The OKINOS AQUA UNO SCARLET is a purpose-built mini tower case that combines compact form factor with premium build quality. The striking 270° panoramic tempered glass panel showcases your components while the three pre-installed ARGB fans and multiple colour options let you fully customise your build's aesthetics.
Designed for Micro-ATX and ITX motherboards, this case accommodates graphics cards up to 309mm and CPU coolers up to 165mm, making it versatile for both gaming and workstation builds. The front panel offers modern connectivity including USB-C 5Gbps, USB 3.0, and a headphone/mic combo jack, addressing the needs of content creators and power users.
Practicality is built in with tool-free quick-release panels and magnetic dust filters that keep your system clean without compromising airflow. The generous cable routing clearance (32mm front, 24mm rear) simplifies cable management even in tight spaces. At just 3.94kg, it's portable enough for LAN events and desk moves.
Whether you're building a high-end gaming rig or a compact workstation, the AQUA UNO SCARLET delivers professional aesthetics and functional design.
Specifications
| Model Name | AQUA UNO SCARLET |
|---|---|
| Model Number | OKICC-AQUNO-SCARLET |
| Form Factor | Mini Tower |
| Motherboard Support | Micro-ATX, ITX |
| Dimensions (DWH) | 315 × 210 × 395mm |
| Material | Steel |
| Side Panel | Tempered Glass (270° panoramic) |
| Front Panel Ports | 1× USB 3.0, 1× USB-C 3.2 Gen 1 (5Gbps), 1× Headphone/Mic Combo Jack |
| Front Panel Controls | Power button, LED control button |
| Expansion Slots | 4 |
| Drive Bays 3.5 inch | 1 |
| Drive Bays 2.5 inch | 1 |
| Top Fan Support | 2× 120mm or 2× 140mm |
| Rear Fan Support | 1× 120mm |
| Pre-Installed Fans | 2× 120mm ARGB fans (top), 1× 120mm ARGB fan (rear) |
| Maximum GPU Length | ≤309mm |
| Maximum CPU Cooler Height | ≤165mm |
| Maximum PSU Length | ≤160mm (without cable) |
| Dust Filters | Top, right side, bottom (magnetic) |
| Cable Routing Clearance Front | 32mm |
| Cable Routing Clearance Rear | 24mm |
| Net Weight | 3.94kg |
| Gross Weight | 4.70kg |
| Warranty | 12 months |
| EAN | 4897121941642 |
Key Features
Ideal For
FAQs
What motherboard sizes does the AQUA UNO SCARLET support?
The case supports Micro-ATX and ITX form factor motherboards, making it ideal for compact builds without sacrificing connectivity or upgrade potential.
How many fans come pre-installed?
Three ARGB fans are pre-installed: two 120mm fans on the top and one 120mm fan at the rear. Additional fans can be added to the top (up to 2× 140mm or 2× 120mm).
Can I fit a large graphics card in this case?
Yes. The case supports graphics cards up to 309mm in length, which accommodates most high-performance GPUs on the market today.
Does it have USB-C connectivity?
Yes. The front panel includes USB-C 3.2 Gen 1 (5Gbps) for fast data transfer and charging, along with USB 3.0 and a headphone/mic combo jack.
Are the dust filters removable?
Yes. The magnetic dust filters on the top, right side, and bottom are tool-free and easy to remove for cleaning.
How much cable routing space is available?
The case provides 32mm clearance behind the front panel and 24mm behind the rear panel, offering spacious cable management for clean builds.
Is this case suitable for desk placement?
Yes. At 315 × 210 × 395mm, it's compact enough for desk-side placement while the 270° panoramic glass panel makes it a striking display piece.
