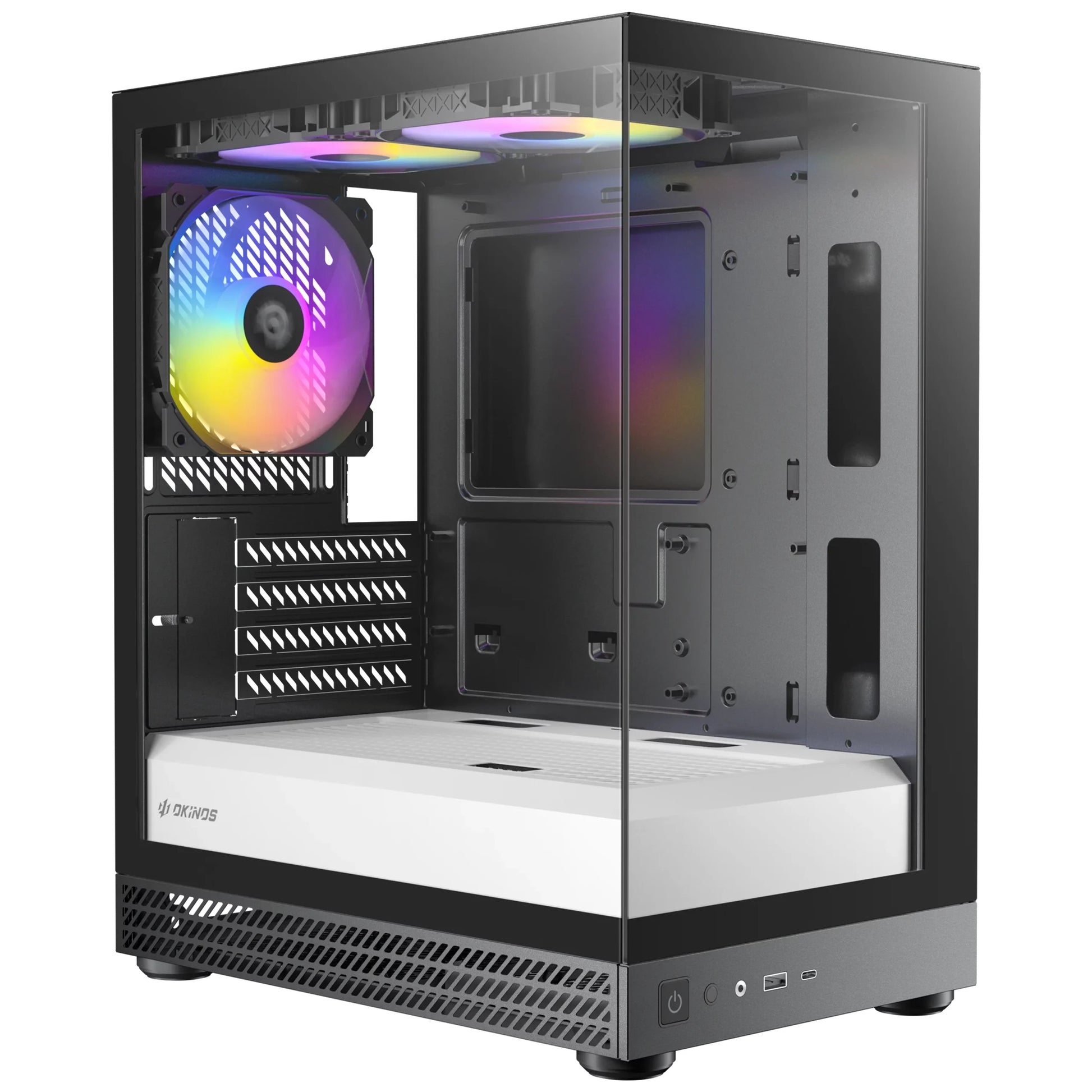

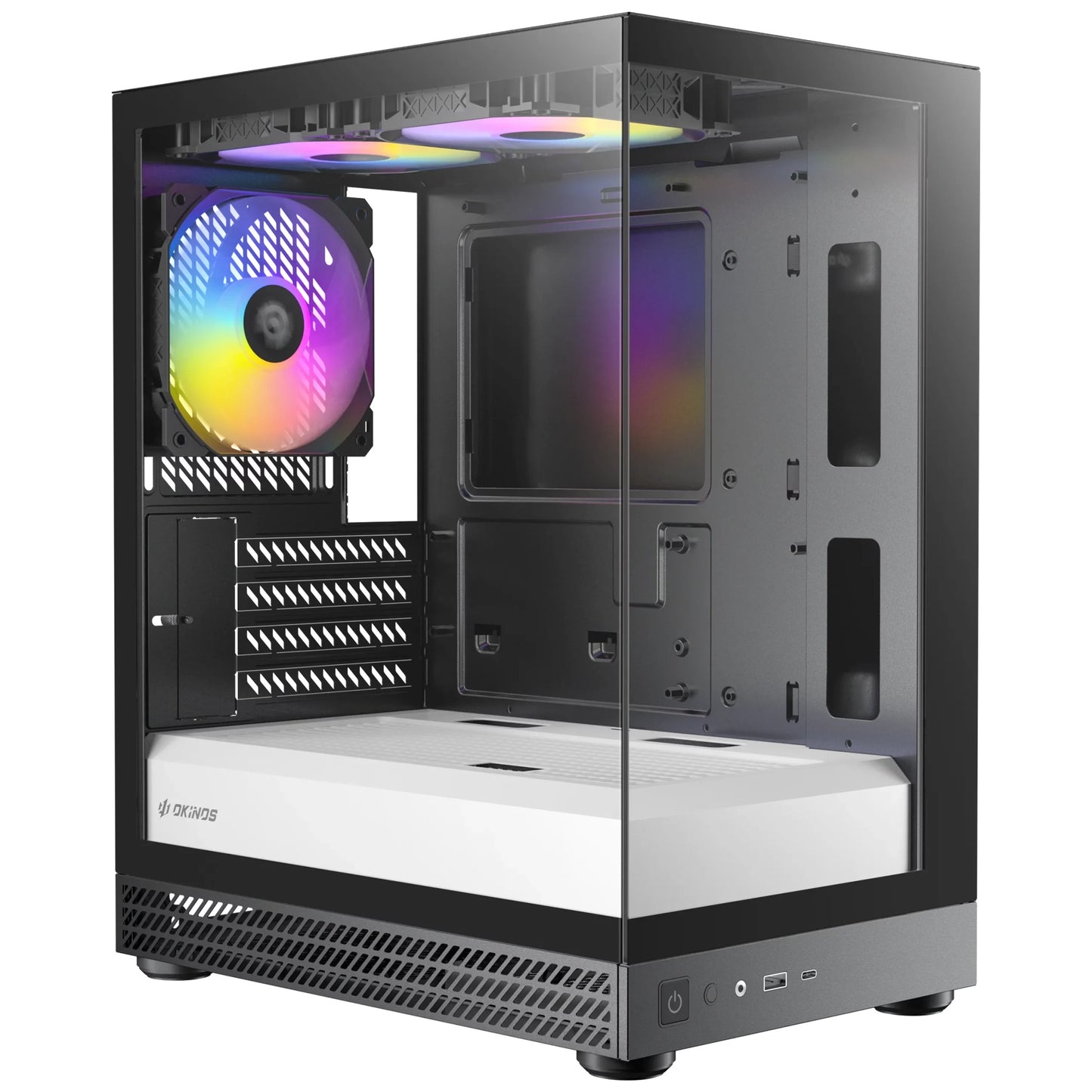

OKINOS AQUA UNO ZEBRA Mini Tower PC Case
OKINOS AQUA UNO ZEBRA Mini Tower PC Case
SKU:CAO-AQUA-UNO-ZEBRA
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | OKINOS |
|---|---|
| Category | Cases & Accessories |
| SKU | CAO-AQUA-UNO-ZEBRA |
| Availability | In Stock |
Overview
- The OKINOS AQUA UNO ZEBRA is a premium mini tower case engineered for builders who prioritise compact design without compromising performance or aesthetics. Its distinctive 270° panoramic tempered glass panel provides exceptional visibility of internal components whilst maintaining structural integrity across multiple colour variants.
The case comes pre-installed with three ARGB fans—two 120mm units at the top and one at the rear—delivering efficient airflow management for modern components. Support for Micro-ATX and ITX motherboards makes it ideal for space-constrained environments, whether home offices, LANs, or compact workstations.
Practicality is built in through tool-free quick-release panels and magnetic dust filters, reducing assembly time and maintenance overhead. Generous cable routing clearance (32mm front, 24mm rear) and USB 3.0 plus Type-C 3.2 Gen 1 connectivity ensure modern connectivity standards are met. With a 12-month warranty, this case represents a reliable foundation for quality PC builds.
Specifications
| Brand | OKINOS |
|---|---|
| Model | AQUA UNO ZEBRA |
| Form Factor | Mini Tower |
| Dimensions (DWH) | 315 × 210 × 395 mm |
| Materials | Steel with tempered glass side panel |
| Motherboard Support | Micro-ATX, ITX |
| Drive Bays | 1 × 3.5″, 1 × 2.5″ |
| Expansion Slots | 4 |
| Fan Support | Top: 2 × 120mm or 2 × 140mm; Rear: 1 × 120mm |
| Pre-installed Fans | 2 × 120mm ARGB (top) + 1 × 120mm ARGB (rear) |
| Maximum GPU Length | ≤309 mm |
| Maximum CPU Cooler Height | ≤165 mm |
| Maximum PSU Length | ≤160 mm (without cables) |
| Front I/O | 1 × USB 3.0, 1 × USB Type-C 3.2 Gen 1 (5 Gbps), 3.5 mm audio jack, Power button, LED control button |
| Dust Filters | Magnetic filters on top, right side, and bottom |
| Cable Routing Clearance | 32 mm (front), 24 mm (rear) |
| Net Weight | 3.94 kg |
| Gross Weight | 4.70 kg |
| Side Panel | Tempered glass |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What motherboard sizes does the OKINOS AQUA UNO ZEBRA support?
The case supports Micro-ATX and ITX motherboards, making it ideal for compact and space-efficient builds.
Are fans included with this case?
Yes, three 120mm ARGB fans are pre-installed: two at the top and one at the rear. The case also supports additional 120mm or 140mm fans on the top for improved cooling.
Can I fit a large graphics card in this case?
The case supports graphics cards up to 309 mm in length. Ensure your GPU dimensions do not exceed this limit before purchasing.
What CPU cooler heights are supported?
CPU air coolers up to 165 mm in height are supported. This accommodates most mainstream tower coolers on the market.
Does the case have modern connectivity options?
Yes, the front panel includes USB 3.0, USB Type-C 3.2 Gen 1 (5 Gbps), and a 3.5 mm audio jack for headphones and microphone.
How easy is it to assemble and maintain?
The case features tool-free quick-release panels on the front, left, and right sides for easy access. Magnetic dust filters on the top, side, and bottom simplify regular cleaning and maintenance.
Is the tempered glass panel durable?
Yes, the tempered glass panel is designed for durability and provides a 270° panoramic view of internal components. It is also available in multiple colour options.
What is the warranty period for this case?
The OKINOS AQUA UNO ZEBRA includes a 12-month warranty covering manufacturing defects.
