Brateck LDT33-C012 Single Monitor Articulating Arm
Brateck LDT33-C012 Single Monitor Articulating Arm
SKU:MABT-LDT33-C012
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT33-C012 |
| Availability | In Stock |
Overview

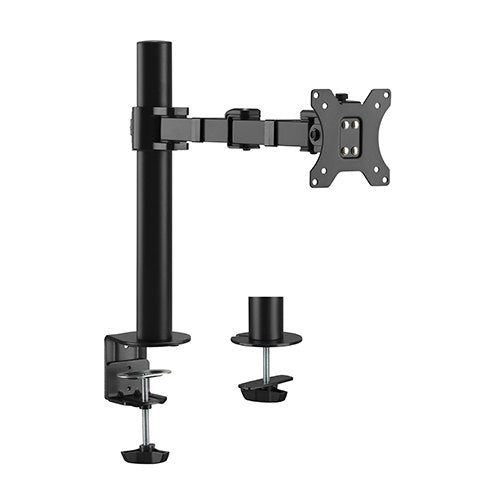

- The Brateck LDT33-C012 is a robust single monitor articulating arm engineered for professional and home office environments. Built with steel construction and a powder-coated finish, it supports monitors from 17' to 32' with a 9kg weight capacity, making it compatible with most modern displays via standard VESA 75x75 and 100x100 mounts.
Designed with ergonomics in mind, the arm features freely adjustable height, ±35° tilt range, ±90° swivel capability, and a 360° rotating VESA plate. This combination allows users to achieve optimal viewing angles from any position at the desk, reducing neck and eye strain during extended work sessions.
Installation is straightforward thanks to the quick-release VESA plate and choice of grommet or clamp mounting options, accommodating desktop thicknesses from 10–88mm. Integrated cable management keeps cables neatly organised and out of sight, maintaining a clean workspace. With a 60-month warranty, the LDT33-C012 represents a cost-effective solution for businesses and individuals seeking improved ergonomic comfort and monitor flexibility.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT33-C012 |
| Product Type | Articulating Monitor Arm |
| Material | Steel |
| Finish | Powder-coated matte black |
| Dimensions | 114 × 514 × 556mm |
| Compatible Screen Size | 17'–32' |
| VESA Compatibility | 75×75, 100×100 |
| Weight Capacity | 9kg per screen |
| Tilt Range | +35° to −35° |
| Swivel Range | +90° to −90° |
| Screen Rotation | +180° to −180° |
| Arm Full Extension | 380mm |
| Pole Height | 405mm |
| Installation Methods | Grommet, Clamp |
| Desktop Thickness Range | 10–88mm (clamp), 10–75mm (grommet) |
| VESA Plate | Quick-release detachable |
| Cable Management | Yes |
| Curved Monitor Support | No |
| Warranty | 60 months |
Key Features
Ideal For
FAQs
What monitor sizes does the Brateck LDT33-C012 support?
The arm accommodates monitors from 17' to 32' with VESA 75×75 or 100×100 mounting patterns and a maximum weight capacity of 9kg per screen.
How is the monitor arm installed?
The LDT33-C012 offers two installation options: grommet mount (for desktops 10–75mm thick) or clamp mount (for desktops 10–88mm thick). The quick-release VESA plate enables fast setup.
What adjustment range does the arm provide?
The arm offers freely adjustable height, ±35° tilt, ±90° swivel, and 360° VESA plate rotation for comprehensive viewing flexibility from any seat position.
Does the arm support curved monitors?
No, the LDT33-C012 is designed for flat monitors only and does not support curved displays.
Is cable management included?
Yes, the arm features integrated cable management to keep cables organised and hidden, maintaining a clean workspace.
What is the warranty period?
The Brateck LDT33-C012 comes with a 60-month (5-year) warranty covering defects in materials and workmanship.
Can the VESA plate be removed or replaced?
Yes, the VESA plate is detachable and uses a quick-release design, making it easy to remove, reposition, or replace.
