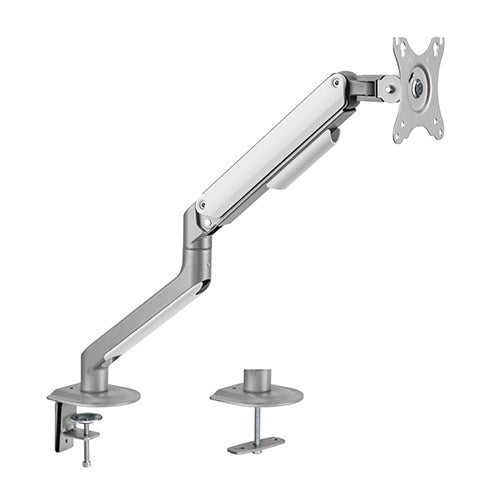

Brateck LDT63-C012 Single Monitor Arm Spring-Assisted
Brateck LDT63-C012 Single Monitor Arm Spring-Assisted
SKU:MABT-LDT63-C012-S
The Brateck LDT63-C012 is a spring-assisted single monitor arm designed for most 17–32 inch displays up to 9kg. Featuring integrated 180° rotation stop, dual mounting options, and built-in cable management, it delivers ergonomic flexibility and workspace organisation for office professionals.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT63-C012-S |
| Availability | In Stock |
Overview
- The Brateck LDT63-C012 is an economical spring-assisted monitor arm that combines functionality with modern design. Its durable aluminium and steel construction supports most monitors between 17 and 32 inches, with a weight capacity of up to 9kg per screen. The integrated spring mechanism allows smooth, fingertip adjustment for height and positioning, eliminating the need for manual counterbalance frustration.
Designed for flexibility, the arm offers a full range of motion with +55° to −55° tilt, +90° to −90° swivel, and 180° rotation capability. The integrated rotation stop prevents the arm from colliding with adjacent partitions or walls—a practical safety feature in busy office environments. Both desk clamp and grommet mounting options are included, making installation straightforward on most desk thicknesses from 10–80mm.
Built-in cable management keeps your workspace tidy and professional, whilst the compact design reduces shipping and storage costs. Available in matte grey, the LDT63-C012 complements modern office décor without visual clutter. A 3-year warranty provides peace of mind for business buyers.
Specifications
| Product Type | Mechanical Spring Monitor Arm |
|---|---|
| Manufacturer | Brateck |
| Model | LDT63-C012 |
| Material | Aluminium, steel, plastic |
| Surface Finish | Powder coating |
| Colour | Matte grey |
| Dimensions | 117 × 520 × 655mm |
| Monitor Compatibility | 17–32 inch |
| Curved Monitor Support | Yes |
| Screen Quantity | 1 |
| Weight Capacity | 2–9kg per screen |
| VESA Standard | 75×75, 100×100 |
| Tilt Range | +55° to −55° |
| Swivel Range | +90° to −90° |
| Screen Rotation | +180° to −180° |
| Arm Full Extension | 515mm |
| Mounting Options | Desk clamp and grommet |
| Desktop Thickness (Clamp) | 10–80mm |
| Desktop Thickness (Grommet) | 10–40mm |
| Quick-Release VESA Plate | No |
| Cable Management | Yes |
| Direction Indicator | Yes |
| USB Port | No |
| Anti-Theft | No |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size monitors does the Brateck LDT63-C012 support?
The arm fits most monitors between 17 and 32 inches with VESA mounting patterns of 75×75 or 100×100, and supports up to 9kg per screen. It is also compatible with curved monitors.
What mounting options are available?
Both desk clamp and grommet mounting options are included in the box. The clamp suits desks 10–80mm thick, whilst the grommet option works with desks 10–40mm thick.
How does the spring-assisted mechanism work?
The integrated spring mechanism provides self-adjusting counterbalance, allowing smooth fingertip adjustment of monitor height without manual effort. This reduces fatigue and makes repositioning effortless throughout the day.
Can the monitor arm rotate?
Yes. The arm offers +55° to −55° tilt, +90° to −90° swivel, and full 180° screen rotation. An integrated rotation stop prevents the arm from swinging into adjacent walls or partitions.
Is cable management included?
Yes, the arm features built-in cable management to keep cables organised and out of sight, maintaining a clean workspace.
How long is the warranty?
The Brateck LDT63-C012 comes with a 36-month (3-year) manufacturer warranty.
What is included in the box?
The package includes the monitor arm, desk clamp, grommet mount, and all necessary installation hardware. The quick-release VESA plate design allows rapid setup.
