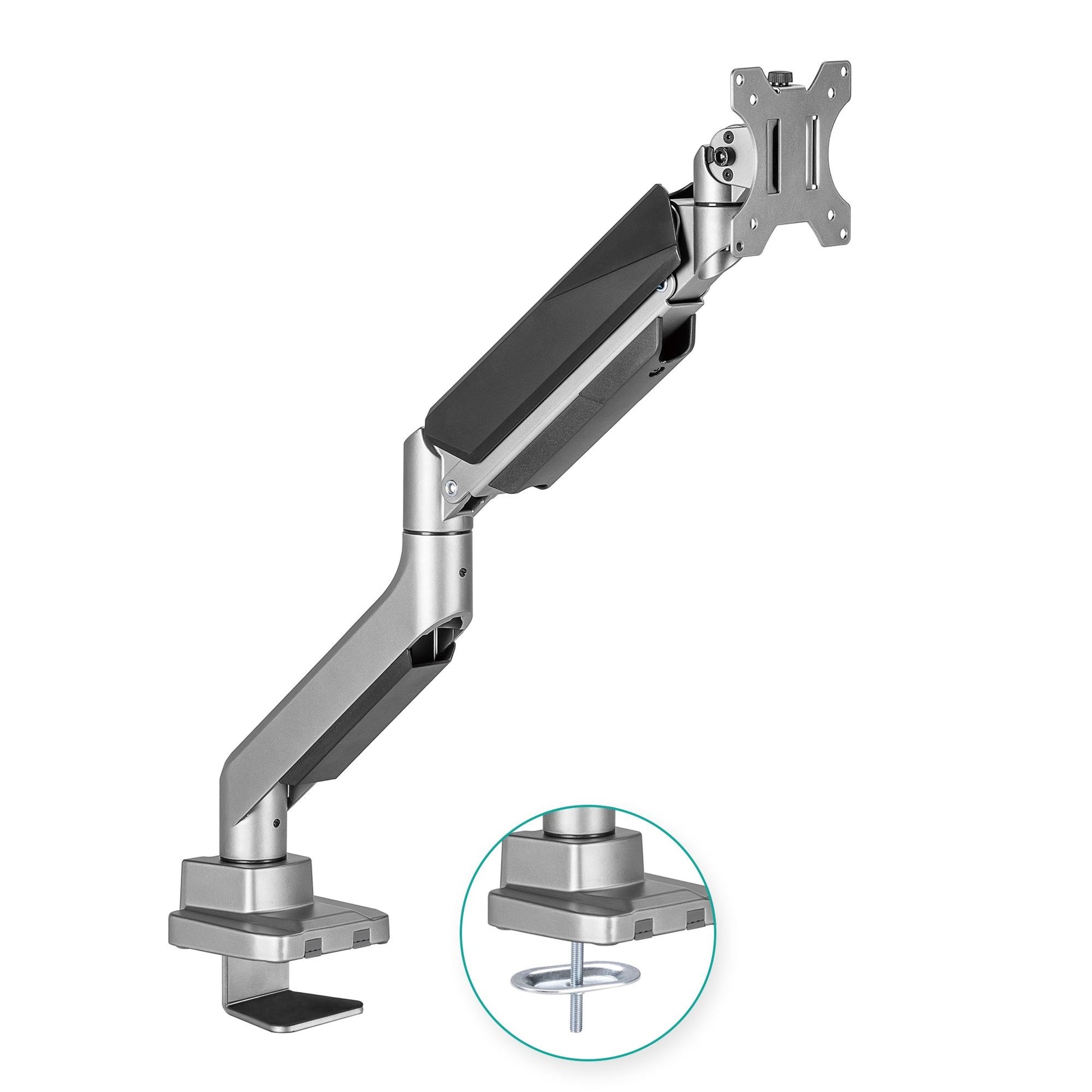

mbeat Activiva ACA-HMA-SGS01Y Heavy Duty Monitor Arm
mbeat Activiva ACA-HMA-SGS01Y Heavy Duty Monitor Arm
SKU:MAMB-ACA-HMA-SGS01Y
The mbeat Activiva ACA-HMA-SGS01Y is a heavy duty gas spring monitor arm designed for 17–49'' flat panel and curved displays up to 18kg. Featuring 180° screen rotation, integrated cable management, and free-tilting adjustment, it delivers ergonomic support and workspace organisation for professional environments.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MBEAT |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MAMB-ACA-HMA-SGS01Y |
| Availability | In Stock |
Overview
- The mbeat Activiva ACA-HMA-SGS01Y is a heavy duty single monitor gas spring arm engineered for demanding professional environments. It supports displays from 17 to 49 inches, accommodating both flat panel and curved monitors weighing up to 18kg, making it ideal for large format displays that standard arms cannot support.
The gas spring mechanism provides effortless height adjustment (25.5–55cm range) and smooth counterbalancing, reducing neck and shoulder strain during extended work sessions. With ±90° swivel, ±45° tilt, and a unique 180° rotation capability, the arm enables precise ergonomic positioning for any viewing requirement whilst protecting against accidental collision with walls or partitions through its integrated rotation stop.
Practical workplace features include integrated cable management that keeps power and signal cables concealed and organised, reducing trip hazards and improving desk aesthetics. The robust aluminium and steel construction with powder-coated finish ensures durability in busy professional settings. Dual VESA mounting options (75×75 and 100×100) and two mounting configurations provide flexibility for various desk and partition types.
This is a purpose-built solution for organisations prioritising ergonomics, workspace safety, and professional presentation.
Specifications
| Brand | mbeat |
|---|---|
| Model | ACA-HMA-SGS01Y |
| Product Type | Single Monitor Gas Spring Arm |
| Monitor Compatibility (Diagonal) | 17–49 inches |
| Monitor Type Support | Flat panel and curved |
| Weight Capacity (Flat Panel Monitor) | 1–18kg |
| Weight Capacity (Curved Monitor) | 1–14kg |
| VESA Compatibility | 75×75, 100×100 |
| Height Adjustment Range | 25.5cm–55cm (minimum to maximum) |
| Arm Full Extension | 46cm |
| Screen Rotation Range | +180° to −180° |
| Tilt Range | +45° to −45° |
| Swivel Range | +90° to −90° |
| Rotation Stop | Integrated 180° rotation stop |
| Adjustment Mechanism | Gas spring |
| Material | Aluminium, steel, plastic |
| Surface Finish | Powder coating |
| Colour | Metallic grey |
| Dimensions | 120mm × 510mm × 620mm |
| Cable Management | Integrated |
| Mounting Options | Two mounting configurations |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What monitor sizes and weights does the mbeat Activiva ACA-HMA-SGS01Y support?
The arm supports flat panel monitors from 17–49 inches weighing up to 18kg, and curved monitors up to 14kg. It features VESA 75×75 and 100×100 compatibility, making it suitable for most modern displays in this size range.
How does the gas spring mechanism work?
The gas spring counterbalances the weight of your monitor, allowing smooth, effortless height adjustment without sudden dropping or jerking. This reduces fatigue and enables one-handed fine-tuning of monitor position throughout the day.
Can I rotate the monitor 180 degrees?
Yes, the arm features a full +180° to −180° rotation range with an integrated rotation stop to prevent the arm from striking walls or partition panels. This allows portrait and landscape orientation changes safely.
What mounting options are available?
The ACA-HMA-SGS01Y offers two mounting configurations, providing flexibility for desk clamps, wall mounts, or partition attachment depending on your workspace setup.
Is cable management included?
Yes, the arm includes integrated cable management to keep power and signal cables organised and hidden, reducing clutter and trip hazards at your workspace.
What warranty does the arm come with?
The mbeat Activiva includes a 12-month manufacturer warranty covering defects in materials and workmanship.
Is this arm suitable for curved monitors?
Yes, the arm is designed to support both flat panel and curved monitors. Curved monitors have a maximum weight capacity of 14kg, whilst flat panels can be up to 18kg.
