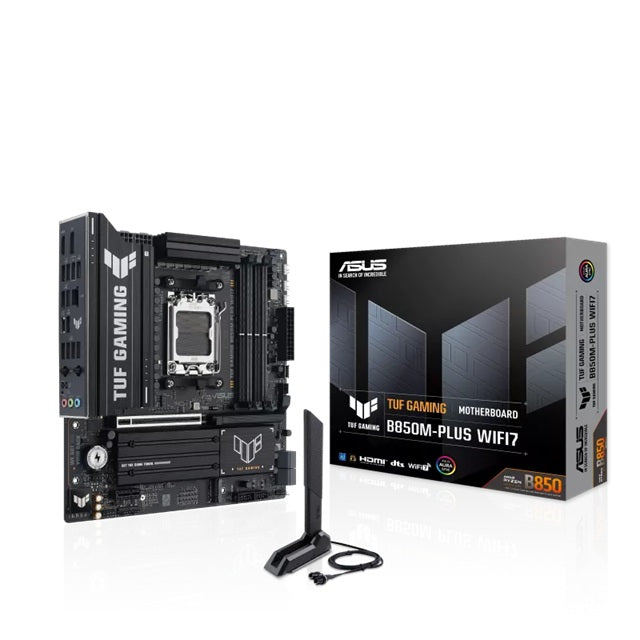

ASUS TUF GAMING B850M-PLUS WIFI7 Micro-ATX Motherboard
ASUS TUF GAMING B850M-PLUS WIFI7 Micro-ATX Motherboard
SKU:MBA-B850M-PLUS-WIFI7
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-B850M-PLUS-WIFI7 |
| Availability | In Stock |
Overview
- The ASUS TUF GAMING B850M-PLUS WIFI7 is a feature-rich micro-ATX motherboard built for AMD Ryzen enthusiasts and professionals. It combines the compact micro-ATX form factor with cutting-edge connectivity, including PCIe 5.0 support for next-generation GPUs and NVMe drives, and WiFi 7 for ultra-fast wireless performance.
This board supports up to 256GB of DDR5 memory with EXPO and AEMP profiles, enabling optimised memory overclocking with compatible kits. The three M.2 slots (with primary PCIe 5.0 support on Ryzen 9000/7000 processors) accommodate multiple fast storage drives for content creators and gamers. RAID support varies by processor generation, providing data redundancy options for relevant builds.
With 2.5GbE Ethernet, TUF LANGuard protection, and comprehensive connectivity via DisplayPort and HDMI, this motherboard handles demanding workloads while maintaining reliability. The TUF series heritage ensures quality components and a 3-year warranty, making it a trusted choice for builders seeking performance without full-size ATX dimensions.
Specifications
| Processor Socket | AMD Socket AM5 |
|---|---|
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 series |
| Chipset | AMD B850 |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB DDR5 |
| Memory Speed | Up to 8000+MT/s (OC) with compatible processors |
| Memory Features | EXPO, AEMP, ECC/Non-ECC support |
| PCIe Slots | 1 x PCIe 5.0 x16 (Ryzen 9000/7000); 1 x PCIe 4.0 x1 |
| M.2 Slots | 3 x M.2 (Key M) - Primary PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (Ryzen 9000); RAID 0/1 (Ryzen 8000); RAID 0/1/10 (Ryzen 7000) |
| Video Outputs | 1 x DisplayPort 1.4 (8K@30Hz), 1 x HDMI 2.1 (4K@60Hz) |
| Networking | 1 x 2.5GbE Realtek Ethernet with TUF LANGuard |
| Wireless | WiFi 7, Bluetooth 5.4 |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Management | WOL by PME, PXE |
| Operating System | Windows 11 |
| Warranty | 3 years |
Key Features
Ideal For
FAQs
Which AMD Ryzen processors does this motherboard support?
The TUF GAMING B850M-PLUS WIFI7 supports AMD Ryzen 9000, 8000, and 7000 series processors in the AM5 socket. For a complete CPU support list, refer to the ASUS support website or product information site.
What is the maximum memory capacity and speed?
This motherboard features 4 x DDR5 DIMM slots supporting up to 256GB total capacity. Memory speeds reach 8000+MT/s (overclocked) with compatible Ryzen 9000, 8000, and 7000 series processors, and supports EXPO and AEMP profiles for optimised overclocking.
Does this board support PCIe 5.0?
Yes, the primary PCIe x16 slot supports PCIe 5.0 when paired with Ryzen 9000 or 7000 series processors. Ryzen 8000 series processors use PCIe 4.0. Please check the CPU support list for specific compatibility.
How many M.2 slots are available and what speeds do they support?
There are 3 x M.2 slots. With Ryzen 9000/7000 processors: M.2_1 supports PCIe 5.0 x4, M.2_2 supports PCIe 4.0 x4. With Ryzen 8000 processors: M.2_1 supports PCIe 4.0 x4, M.2_2 supports PCIe 4.0 x4/x2. M.2_3 (chipset) supports PCIe 4.0 x4.
What networking features does this motherboard have?
The board includes 1 x 2.5GbE Realtek Ethernet with TUF LANGuard protection, WiFi 7, and Bluetooth 5.4 for comprehensive wired and wireless connectivity.
What is the warranty period?
This motherboard includes a 3-year warranty from ASUS.
Is RAID supported?
RAID support varies by processor generation: Ryzen 9000 supports RAID 0/1/5/10; Ryzen 8000 supports RAID 0/1; Ryzen 7000 supports RAID 0/1/10. See the specification sheet for details on your specific processor.
What video outputs are available?
The motherboard features 1 x DisplayPort 1.4 (supporting 8K@30Hz) and 1 x HDMI 2.1 (supporting 4K@60Hz) for multi-display configurations. Graphics output is dependent on the installed CPU.
