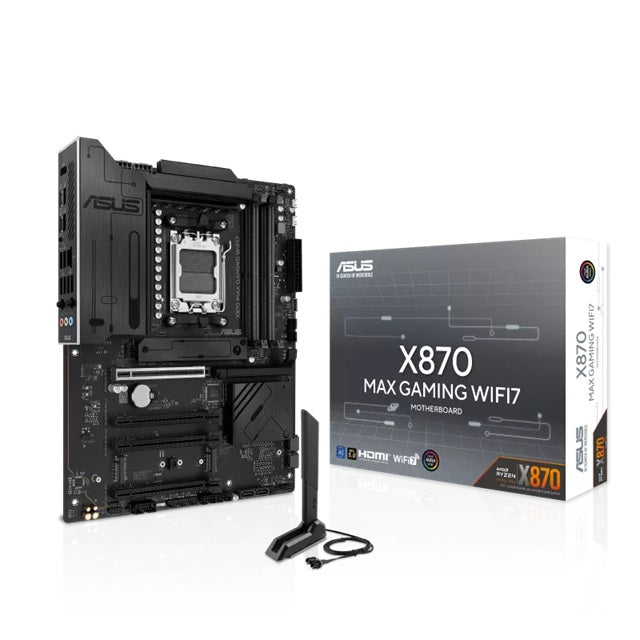

ASUS X870 MAX GAMING WIFI7 Motherboard
ASUS X870 MAX GAMING WIFI7 Motherboard
SKU:MBA-X870-MAX-GM-WIFI7
The ASUS X870 MAX GAMING WIFI7 is a high-performance ATX motherboard for AMD Ryzen 9000, 8000 and 7000 series processors. Featuring PCIe 5.0 support, WiFi 7, USB4, and dual M.2 slots, it delivers enterprise-grade connectivity and expandability for gaming and professional workstations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | ASUS |
|---|---|
| Category | Motherboards |
| SKU | MBA-X870-MAX-GM-WIFI7 |
| Availability | In Stock |
Overview
- The ASUS X870 MAX GAMING WIFI7 is a feature-rich ATX motherboard built on the AMD X870 chipset, designed to support the latest Ryzen 9000, 8000 and 7000 series processors. It combines next-generation connectivity standards including PCIe 5.0, WiFi 7, and dual USB4 ports, making it ideal for professionals and enthusiasts who demand both performance and future-proofing.
With support for up to 256GB of DDR5 memory, three M.2 slots, and EXPO overclocking profiles, this motherboard provides the bandwidth and expandability required for demanding workloads. The 2.5Gb Ethernet with ASUS LANGuard protection ensures reliable network connectivity, while the dual USB4 ports enable high-speed external device connections at 40Gbps.
Designed for those building serious computing systems, the X870 MAX GAMING WIFI7 offers robust RAID support, advanced BIOS features, and comprehensive power delivery. Backed by a 36-month warranty, it represents a reliable foundation for long-term system investment.
Specifications
| Brand | ASUS |
|---|---|
| Model | X870 MAX GAMING WIFI7 |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Chipset | AMD X870 |
| CPU Socket | AMD Socket AM5 |
| CPU Compatibility | AMD Ryzen 9000, 8000 and 7000 series processors |
| Memory Slots | 4 x DIMM |
| Maximum Memory | 256GB DDR5 |
| Memory Speed | Up to 8000+ MT/s (OC) |
| Memory Features | ECC and Non-ECC support, EXPO, AEMP |
| PCIe Slots | 1 x PCIe 5.0 x16 (CPU-connected), 2 x PCIe 4.0 x16 (x1 mode), 1 x PCIe 3.0 x16 (x1 mode) |
| M.2 Slots | 3 (M.2_1: PCIe 5.0 x4 / PCIe 4.0 x4 depending on CPU; M.2_2: PCIe 4.0 x4/x2; M.2_3: PCIe 4.0 x4) |
| SATA Ports | 4 x SATA 6Gb/s |
| Storage Support | RAID 0/1/5/10 (varies by CPU series) |
| Graphics Outputs | 1 x HDMI 2.1 (4K@60Hz), 2 x USB4 DisplayPort (4K@60Hz) |
| Ethernet | 1 x 2.5Gb Realtek Ethernet with LANGuard |
| Wireless | WiFi 7, Bluetooth 5.4 |
| USB Ports | 2 x USB4 (40Gbps) |
| BIOS | 256 Mb Flash ROM, UEFI AMI |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 11 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors are compatible with the X870 MAX GAMING WIFI7?
The motherboard supports AMD Ryzen 9000, 8000 and 7000 series desktop processors on Socket AM5. For a detailed CPU support list, refer to the ASUS support download centre.
What is the maximum memory capacity and speed?
The motherboard supports up to 256GB of DDR5 memory across four DIMM slots, with speeds up to 8000+ MT/s (overclocked) on Ryzen 9000 and 8000 series. It supports both ECC and Non-ECC unbuffered modules with EXPO and AEMP profiles.
Does this motherboard support PCIe 5.0?
Yes. The primary PCIe x16 slot supports PCIe 5.0 when paired with Ryzen 9000 or 7000 series processors. Ryzen 8000 series uses PCIe 4.0. Additional PCIe 4.0 and 3.0 slots are available for expansion.
How many M.2 slots does it have and what speeds are supported?
The X870 MAX GAMING WIFI7 has three M.2 slots: M.2_1 supports PCIe 5.0 x4 (Ryzen 9000/7000) or PCIe 4.0 x4 (Ryzen 8000), M.2_2 supports PCIe 4.0 x4/x2, and M.2_3 supports PCIe 4.0 x4. Note that M.2_2 shares bandwidth with USB4 ports.
What connectivity options are available?
The motherboard features WiFi 7, Bluetooth 5.4, dual USB4 ports (40Gbps), 2.5Gb Realtek Ethernet with LANGuard, and HDMI 2.1 output. USB4 ports also support DisplayPort for external displays.
Is RAID support included?
Yes. AMD RAIDXpert2 Technology is supported with varying configurations depending on CPU series: Ryzen 9000 supports RAID 0/1/5/10, Ryzen 8000 supports RAID 0/1, and Ryzen 7000 supports RAID 0/1/10.
What warranty is included?
The ASUS X870 MAX GAMING WIFI7 comes with a 36-month warranty covering manufacturing defects and hardware failures.
Can I use this motherboard for overclocking?
Yes. The motherboard supports ASUS Enhanced Memory Profile (AEMP) and AMD EXPO overclocking profiles for both memory and CPU tuning through the UEFI BIOS.
