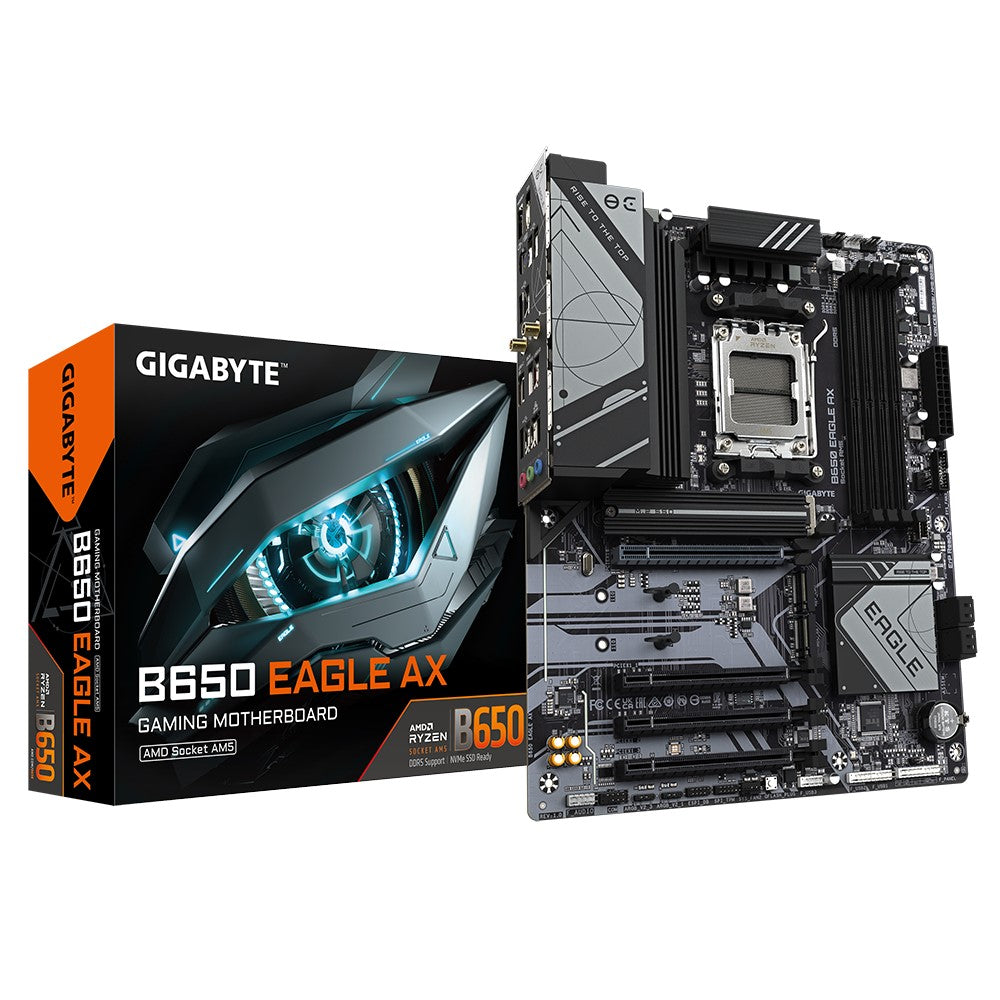

Gigabyte B650 EAGLE AX AM5 Motherboard
Gigabyte B650 EAGLE AX AM5 Motherboard
SKU:MBG-B650EAGLEAX
Couldn't load pickup availability
- See our return policy
- 36 Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B650EAGLEAX |
| Availability | In Stock |
Overview
- The Gigabyte B650 EAGLE AX is a mid-range AM5 motherboard engineered for Ryzen 7000 and 8000 series processors. It combines DDR5 memory support with PCIe 4.0 connectivity, delivering the bandwidth needed for modern workloads including content creation, professional computing, and high-performance gaming.
The board features four DDR5 DIMM slots capable of supporting up to 192 GB of memory, with support for AMD EXPO and XMP profiles for optimised memory performance. Connectivity includes dual video outputs (DisplayPort 1.4 and HDMI 2.1), three M.2 NVMe slots, and multiple USB 3.2 ports, making it suitable for complex system configurations.
With a 36-month manufacturer warranty, the B650 EAGLE AX provides a solid foundation for reliable business workstations, professional systems, and performance-focused builds.
Specifications
| brand | Gigabyte |
|---|---|
| model | B650 EAGLE AX |
| socket | AMD AM5 |
| chipset | AMD B650 |
| cpu_support | AMD Ryzen 7000 and 8000 series processors |
| memory_slots | 4 x DDR5 DIMM |
| max_memory | 192 GB |
| memory_speeds_supported | DDR5 4400/4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600 MT/s (OC) |
| memory_architecture | Dual channel |
| memory_features | AMD EXPO, XMP support, non-ECC Un-buffered DIMM |
| video_output_1 | 1 x DisplayPort 1.4 (up to 3840x2160@144 Hz) |
| video_output_2 | 1 x HDMI 2.1 (up to 4096x2160@60 Hz, HDCP 2.3) |
| pcie_slots | 4 x PCI Express slots (1 x PCIe 4.0 x16 CPU-integrated, 2 x PCIe 3.0 x1 CPU-integrated, 1 x PCIe 3.0 x1 Chipset-integrated) |
| m2_slots | 3 x M.2 NVMe |
| usb_3_2_ports | 4 x USB 3.2 |
| warranty_months | 36 |
Key Features
Ideal For
FAQs
Is the Gigabyte B650 EAGLE AX compatible with Ryzen 8000 series processors?
Yes, the B650 EAGLE AX supports both Ryzen 7000 and Ryzen 8000 series processors via AMD Socket AM5. Note that PCIe lane allocation varies by processor generation (7000 series: PCIe 4.0 x16; Phoenix 1: PCIe 4.0 x8; Phoenix 2: PCIe 4.0 x4). Refer to Gigabyte's CPU support list for full compatibility details.
What memory speeds does this motherboard support?
The B650 EAGLE AX supports DDR5 memory speeds from 4400 MT/s up to 7600 MT/s (overclocked). It features AMD EXPO and XMP profile support for optimised memory performance. Consult Gigabyte's Memory Support List for specific module compatibility.
How much memory can I install?
The board has 4 x DDR5 DIMM slots supporting up to 192 GB total system memory (48 GB single DIMM capacity). Memory configuration may affect supported speeds and module types.
What video outputs are available?
The B650 EAGLE AX includes 1 x DisplayPort 1.4 (supporting up to 3840x2160@144 Hz) and 1 x HDMI 2.1 (supporting up to 4096x2160@60 Hz with HDCP 2.3 support). These are integrated graphics outputs.
Can I use multiple graphics cards on this motherboard?
The board has 4 PCI Express slots including 1 x PCIe 4.0 x16 slot (CPU-integrated) suitable for modern GPUs, plus 2 x PCIe 3.0 x1 slots (CPU-integrated) and 1 x PCIe 3.0 x1 slot (Chipset-integrated). Multi-GPU support depends on your CPU generation and application requirements.
How many NVMe SSDs can I connect?
The B650 EAGLE AX features 3 x M.2 slots for NVMe SSDs, supporting high-speed PCIe storage expansion for fast boot times and application performance.
What is the warranty period?
The Gigabyte B650 EAGLE AX includes a 36-month (3-year) manufacturer warranty covering defects in materials and workmanship.
Is overclocking supported?
Yes, the board supports AMD EXPO and XMP memory profiles for optimised overclocking. Refer to Gigabyte's documentation for detailed overclocking guidance and stability recommendations.
