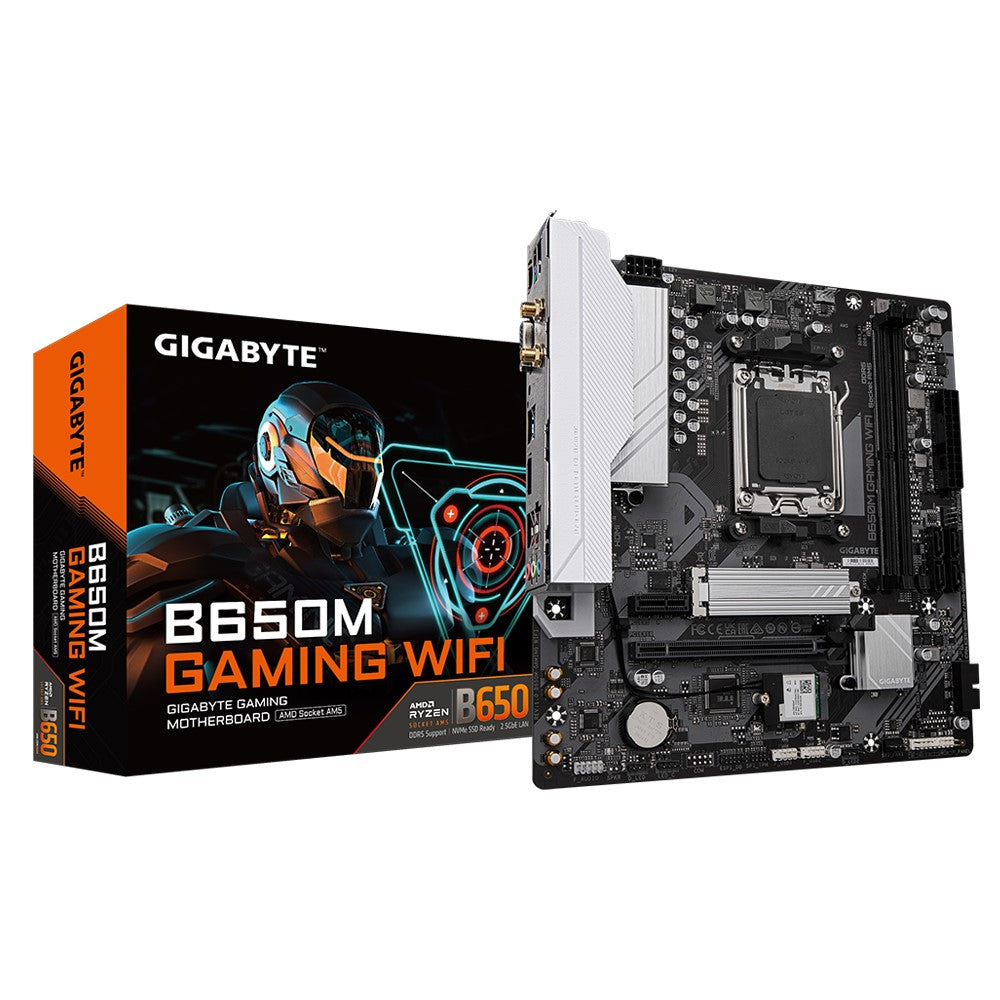

Gigabyte B650M GAMING WIFI AMD AM5 Motherboard
Gigabyte B650M GAMING WIFI AMD AM5 Motherboard
SKU:MBG-B650MGAMINGWIFI
The Gigabyte B650M GAMING WIFI is a mid-range AMD AM5 motherboard designed for Ryzen 7000 and 8000 series builds. Featuring integrated WiFi 6 and Bluetooth 4.2, DDR5 support up to 128 GB, and PCIe 4.0 connectivity, it delivers reliable performance for gaming and productivity workstations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B650MGAMINGWIFI |
| Availability | In Stock |
Overview
- The Gigabyte B650M GAMING WIFI is a feature-rich micro-ATX motherboard built on the AMD B650 chipset, delivering strong support for current and next-generation Ryzen processors. It combines essential performance features with practical connectivity options, including integrated WiFi 6 and Bluetooth, making it ideal for modern systems that require wireless capability without additional expansion cards.
Designed for builders seeking a balanced platform, the board supports up to 128 GB of DDR5 memory and includes PCIe 4.0 connectivity for both graphics and storage. The single M.2 slot and four SATA ports provide flexible storage configuration, while the HDMI 2.1 output ensures compatibility with modern displays at 4K resolution.
With 36 months manufacturer warranty, the B650M GAMING WIFI offers reliable performance for gaming, creative work, and general business computing without excessive cost or complexity.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | B650M GAMING WIFI |
| Chipset | AMD B650 |
| Socket | AMD Socket AM5 |
| CPU Support | AMD Ryzen 7000 and 8000 series processors |
| Form Factor | Micro-ATX |
| Memory Slots | 2x DDR5 DIMM |
| Max Memory | 128 GB (64 GB per module) |
| Memory Speed Support | DDR5 4400–6400 MT/s (JEDEC and overclocking) |
| Memory Features | Dual channel, AMD EXPO, XMP support |
| PCIe Slots | 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) |
| M.2 Slots | 1x M.2 Socket 3 (PCIe 4.0 x4/x2) |
| SATA Ports | 4x SATA 6Gb/s |
| Graphics Output | 1x D-Sub (1920x1200@60Hz), 1x HDMI 2.1 (4096x2160@60Hz) |
| Wireless | WiFi 6 802.11ac (2.4/5 GHz dual-band), Bluetooth 4.2 |
| USB 3.2 Gen 1 | 4 ports total (2 rear, 2 via header) |
| USB 2.0 | 10 ports total (5 rear, 5 via headers) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD processors are supported by the B650M GAMING WIFI?
The motherboard supports AMD Ryzen 7000 and 8000 series processors with Socket AM5. For a complete list of supported CPUs, consult Gigabyte's official website.
How much RAM can this motherboard support?
The B650M GAMING WIFI has two DDR5 DIMM slots supporting up to 128 GB total (64 GB per module). It supports speeds from 4400 to 6400 MT/s, including AMD EXPO and XMP profiles.
Does this motherboard have built-in WiFi?
Yes, it includes integrated WiFi 6 (802.11ac) supporting 2.4/5 GHz dual-band and Bluetooth 4.2, eliminating the need for a separate WiFi card.
What storage options are available?
The motherboard has one M.2 NVMe slot supporting PCIe 4.0 drives and four SATA 6Gb/s ports for traditional drives and SSDs, providing flexible storage configuration.
What video outputs does the B650M GAMING WIFI have?
It features one D-Sub port (1920x1200@60Hz maximum) and one HDMI 2.1 port (4K 4096x2160@60Hz). Both utilise the integrated AMD Radeon graphics processor.
Is the B650M GAMING WIFI suitable for gaming?
Yes, it is designed for gaming builds. It supports the latest Ryzen processors, fast DDR5 memory, PCIe 4.0 graphics slots, and M.2 NVMe storage, providing excellent gaming performance.
How many PCI Express slots does it have?
It has one PCIe x16 slot for graphics cards or expansion and one PCIe x1 slot. The x16 slot supports PCIe 4.0 with varying lane configurations depending on the processor generation.
