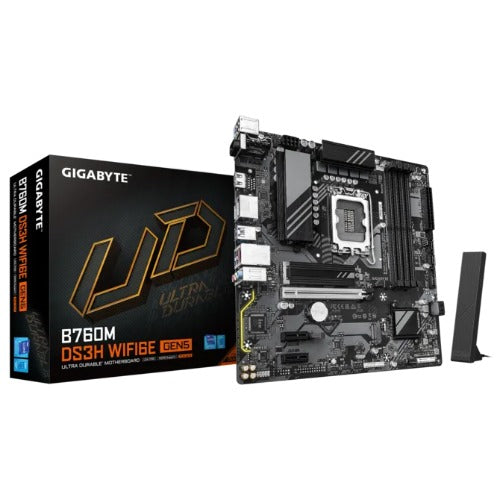

Gigabyte B760M DS3H WIFI6E GEN5 Micro-ATX Motherboard
Gigabyte B760M DS3H WIFI6E GEN5 Micro-ATX Motherboard
SKU:MBG-B760MDS3HWF6EGEN5
The Gigabyte B760M DS3H WIFI6E GEN5 is a micro-ATX motherboard designed for Intel 12th to 14th generation processors. Featuring PCIe 5.0 support, DDR5 memory compatibility, Wi-Fi 6E connectivity, and comprehensive storage options, it delivers high-performance computing for business workstations and gaming builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B760MDS3HWF6EGEN5 |
| Availability | In Stock |
Overview
- The Gigabyte B760M DS3H WIFI6E GEN5 is a feature-rich micro-ATX motherboard designed to support Intel's latest processor generations in a compact footprint. It combines modern connectivity standards including PCIe 5.0, DDR5 memory support, and Wi-Fi 6E, making it suitable for both professional workstations and high-performance gaming systems.
This motherboard excels in delivering storage flexibility with dual M.2 connectors and four SATA ports, alongside comprehensive rear I/O including USB 3.2 Gen 2 Type-C, DisplayPort, and HDMI outputs. The hybrid 6+2+1 phase VRM solution ensures stable power delivery for demanding workloads.
Built-in convenience features such as Smart Fan 6 thermal management, Q-Flash Plus BIOS updates, and WIFI Compass antenna optimisation reduce setup complexity. With a 36-month warranty and support for Windows 11 and Windows 10 64-bit, it provides reliability and longevity for business-critical and performance-focused builds.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | B760M DS3H WIFI6E GEN5 |
| Form Factor | Micro-ATX (244mm x 244mm) |
| CPU Socket | Intel LGA 1700 |
| Supported Processors | Intel Core 12th, 13th, 14th Generation; Pentium Gold; Celeron |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual Channel |
| Memory Speeds | DDR5 5600/5200/4800/4400 MT/s (varies by CPU generation) |
| Memory Features | XMP support, ECC Un-buffered DIMM compatible |
| PCI Express Slots | 1 x PCIe 5.0 x16 (graphics/NVMe SSD), 2 x PCIe 3.0 x1 |
| M.2 Connectors | 2 x PCIe 4.0 x4 (M2A_CPU and M2P_SB) |
| SATA Ports | 4 x SATA 6Gb/s |
| Integrated Graphics | Intel HD Graphics (supported on all CPUs) |
| Video Outputs | 1 x HDMI (up to 4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 2 x DisplayPort (up to 4096x2304@60Hz, DisplayPort 1.2, HDCP 2.3) |
| Network | 2.5 GbE Ethernet LAN |
| Wireless | Wi-Fi 6E (802.11ax) with dual antenna connectors |
| USB Ports (Rear) | 3 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 2.0 |
| PS/2 Port | 1 x Keyboard/Mouse |
| Audio | 3 x 3.5mm audio jacks |
| Power Delivery | Hybrid 6+2+1 Phase VRM |
| Thermal Management | Smart Fan 6 with hybrid fan headers, multiple temperature sensors, FAN STOP function |
| BIOS Features | Q-Flash Plus (update without CPU/Memory/GPU) |
| Operating System Support | Windows 11 64-bit, Windows 10 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with this motherboard?
The B760M DS3H WIFI6E GEN5 supports Intel 12th, 13th, and 14th generation Core, Pentium Gold, and Celeron processors via the LGA 1700 socket. DDR5 memory speed support varies by CPU generation.
How much DDR5 memory can this motherboard support?
The motherboard features 4 DDR5 DIMM slots supporting up to 256 GB of system memory (64 GB per DIMM). Memory speeds range from DDR5 4400 to 5600 MT/s depending on your CPU generation.
Does this motherboard support NVMe SSDs?
Yes, it includes two M.2 connectors (both PCIe 4.0 x4) supporting NVMe SSDs. One connects directly to the CPU for maximum speed, while the second connects via the chipset.
What are the Wi-Fi specifications?
The motherboard features Wi-Fi 6E (802.11ax) connectivity with WIFI Compass antenna auto-detection for optimal signal strength. Two antenna connectors support 2T2R configuration.
Can I update the BIOS without installing the CPU and memory?
Yes, the Q-Flash Plus feature allows you to update the BIOS without installing the CPU, memory, or graphics card, making it convenient for initial setup and future updates.
What expansion slots are available?
The motherboard includes 1 PCIe 5.0 x16 slot (supporting graphics cards or NVMe SSDs) and 2 PCIe 3.0 x1 slots via the chipset. It also has 4 SATA ports and 2 M.2 connectors.
Is this motherboard suitable for professional workstations?
Yes, it supports ECC memory operation (though in non-ECC mode), features 2.5 GbE networking, dual M.2 NVMe, and comprehensive I/O options including USB 3.2 Gen 2 and DisplayPort outputs, making it suitable for professional builds.
What is the warranty period?
The B760M DS3H WIFI6E GEN5 includes a 36-month (3-year) manufacturer's warranty.
