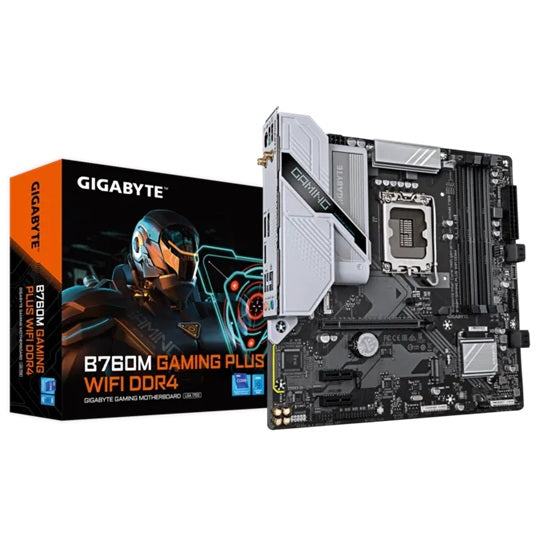

Gigabyte B760M GAMING PLUS WIFI DDR4 Motherboard
Gigabyte B760M GAMING PLUS WIFI DDR4 Motherboard
SKU:MBG-B760MGPWIFIDDR4
The Gigabyte B760M GAMING PLUS WIFI DDR4 is a micro-ATX motherboard designed for 12th–14th generation Intel processors. Featuring PCIe 4.0 support, Wi-Fi 6, DDR4 memory compatibility up to 128 GB, and integrated graphics, it delivers excellent performance for gaming and productivity builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B760MGPWIFIDDR4 |
| Availability | Out of Stock |
Overview
- The Gigabyte B760M GAMING PLUS WIFI DDR4 is a feature-rich micro-ATX motherboard built on the Intel B760 chipset. It supports 12th to 14th generation Intel processors via the LGA1700 socket, making it compatible with a wide range of current-generation CPUs. The board delivers fast storage performance with dual M.2 slots (one PCIe 4.0 from CPU, one PCIe 4.0 from chipset) and four SATA ports with full RAID support.
Memory flexibility is a key strength, supporting DDR4 modules up to 128 GB with overclocking profiles (XMP) for enthusiasts. The integrated Intel HD Graphics processor handles everyday computing and light gaming without a discrete GPU, whilst the single PCIe 4.0 x16 slot accommodates modern graphics cards. Wi-Fi 6 and Gigabit Ethernet provide modern connectivity options, and the compact micro-ATX form factor fits smaller cases without compromising features.
Designed for builders seeking a balanced platform, this motherboard combines gaming capability with productivity performance and practical expansion options. The 36-month warranty provides confidence in reliability for system builds.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | B760M GAMING PLUS WIFI DDR4 |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| CPU Support | 12th, 13th, and 14th generation Intel Core, Pentium Gold, and Celeron processors |
| Form Factor | Micro-ATX (24.4 cm x 24.4 cm) |
| Memory Type | DDR4 |
| Memory Slots | 4 x DDR4 DIMM |
| Maximum Memory | 128 GB |
| Memory Speed Support | DDR4-2133 to DDR4-5333 (JEDEC and overclocking profiles) |
| Memory Architecture | Dual channel |
| ECC Support | Un-buffered ECC memory supported in non-ECC mode |
| XMP Support | Yes |
| CPU PCIe Slot 1 | 1 x PCI Express x16, PCIe 4.0 |
| Chipset PCIe Slots | 2 x PCI Express x1, PCIe 3.0 |
| M.2 Slot 1 (CPU) | 1 x M.2 Socket 3, M key, PCIe 4.0 x4/x2, type 2280 |
| M.2 Slot 2 (Chipset) | 1 x M.2 Socket 3, M key, PCIe 4.0 x4/x2, type 2280 |
| SATA Ports | 4 x SATA 6 Gb/s connectors |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 |
| Integrated Graphics | Intel HD Graphics (HDMI and DisplayPort) |
| HDMI Output | 1 x HDMI, up to 4096x2160@60 Hz, HDMI 2.1, HDCP 2.3 |
| DisplayPort Output | 1 x DisplayPort, up to 4096x2304@60 Hz, DisplayPort 1.2, HDCP 2.3 |
| Audio Codec | Realtek Audio CODEC |
| Audio Channels | 2/4/5.1/7.1-channel support |
| S/PDIF Output | Yes |
| LAN | Realtek Gigabit Ethernet (1 Gbps/100 Mbps/10 Mbps) |
| Wi-Fi | Wi-Fi 6 |
| Operating System Support | Windows 10 64-bit, Windows 11 64-bit |
| Management Software | GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Included Software | Norton Internet Security (OEM), LAN bandwidth management software |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with the Gigabyte B760M GAMING PLUS WIFI DDR4?
The motherboard supports 12th, 13th, and 14th generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. Compatibility includes the latest Intel desktop CPUs across three generations.
How much RAM can this motherboard support?
The B760M GAMING PLUS WIFI DDR4 supports up to 128 GB of DDR4 memory across four DIMM slots, with speeds ranging from DDR4-2133 to DDR4-5333 (including overclocking profiles).
Does this motherboard have Wi-Fi built in?
Yes, the motherboard includes Wi-Fi 6 connectivity built-in, eliminating the need for a separate Wi-Fi adapter.
Can I use this motherboard without a dedicated graphics card?
Yes. The motherboard features integrated Intel HD Graphics that supports HDMI and DisplayPort outputs, making it suitable for office work, web browsing, and light gaming without a discrete GPU.
How many NVMe SSDs can I install?
The motherboard has two M.2 slots supporting NVMe SSDs. Both slots support PCIe 4.0 and accept type 2280 form factor drives.
What storage options are available?
You can connect up to two M.2 NVMe SSDs and four SATA drives. The motherboard supports RAID 0, 1, 5, and 10 for SATA storage devices, providing flexibility for data protection and performance.
Is this a good motherboard for gaming?
Yes. It supports current-generation Intel processors, includes PCIe 4.0 for fast graphics cards and storage, and provides robust power delivery suitable for gaming builds. The micro-ATX form factor also fits smaller gaming cases.
What is the warranty period?
The motherboard comes with a 36-month manufacturer warranty.
