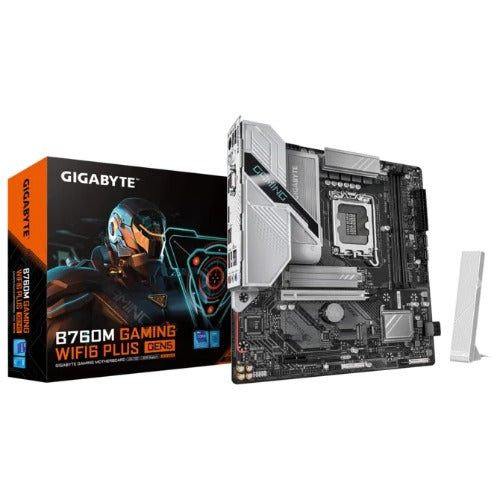

Gigabyte B760M GAMING WIFI6 PLUS GEN5 Motherboard
Gigabyte B760M GAMING WIFI6 PLUS GEN5 Motherboard
SKU:MBG-B760MGAMINGWF6PLGN5
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B760MGAMINGWF6PLGN5 |
| Availability | In Stock |
Overview
- The Gigabyte B760M GAMING WIFI6 PLUS GEN5 is a feature-rich micro-ATX motherboard designed for builders and businesses seeking high-performance computing in a compact package. Built on the Intel B760 chipset, it supports 12th through 14th generation Intel Core processors and combines modern connectivity with expandability. DDR5 memory support and dual M.2 NVMe slots enable fast boot times and responsive application performance, while the PCIe 5.0 x16 slot future-proofs graphics and storage upgrades.
Wireless and wired networking are covered with integrated Wi-Fi 6, Bluetooth 5.3, and a 2.5 GbE Realtek LAN chip, making it suitable for office, home office, and creative workloads. The onboard audio codec supports up to 7.1-channel configurations via software, and three video output options (D-Sub, HDMI 2.1, DisplayPort) provide flexibility for multi-monitor setups.
With an extensive array of USB ports, internal fan headers, addressable LED support, and RAID capabilities, this motherboard caters to builders and IT managers balancing performance, reliability, and space constraints. The 36-month warranty reflects Gigabyte's confidence in the product's durability.
Specifications
| brand | Gigabyte |
|---|---|
| model | B760M GAMING WIFI6 PLUS GEN5 |
| form_factor | Micro-ATX |
| dimensions | 24.4 cm × 22.5 cm |
| chipset | Intel B760 Express |
| cpu_socket | LGA 1700 |
| supported_processors | Intel Core 12th, 13th, 14th generation; Pentium Gold; Celeron |
| memory_slots | 2x DDR5 DIMM |
| max_memory | 128 GB (64 GB per DIMM) |
| memory_speeds_i9_i7 | DDR5 5600/5200/4800/4400 MT/s |
| memory_speeds_i5_i3 | DDR5 4800/4400 MT/s |
| memory_features | Dual-channel architecture, ECC Un-buffered, XMP support |
| pcie_slots | 1x PCIe 5.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset) |
| m2_slots | 2x M.2 Socket 3 (both PCIe 4.0 x4/x2) |
| sata_connectors | 4x SATA 6 Gb/s |
| raid_support | RAID 0, RAID 1, RAID 5, RAID 10 |
| video_outputs | 1x D-Sub (1920×1200@60Hz), 1x HDMI 2.1 (4096×2160@60Hz), 1x DisplayPort 1.2 (4096×2304@60Hz) |
| audio_codec | Realtek High Definition Audio |
| audio_channels | 2/4/5.1/7.1-channel (configurable) |
| spdif_output | Yes |
| lan_controller | Realtek 2.5 GbE (2.5/1/0.1 Gbps) |
| wireless_module | Realtek Wi-Fi 6 RTL8851BE |
| wifi_standard | 802.11a/b/g/n/ac/ax (2.4/5 GHz, 80 MHz) |
| bluetooth | Bluetooth 5.3 |
| usb_32_gen1_ports | 5x USB 3.2 Gen 1 (3x rear panel, 2x internal header) |
| usb_type_c_ports | 1x USB Type-C with USB 3.2 Gen 1 |
| usb_20_ports | 6x USB 2.0/1.1 (2x rear panel, 4x internal headers) |
| power_connectors | 1x 24-pin ATX, 1x 8-pin 12V |
| fan_headers | 1x CPU fan, 3x system fan |
| led_headers | 2x addressable LED, 1x RGB LED |
| internal_connectors | 1x front panel, 1x front panel audio, 1x S/PDIF Out, 1x TPM, 1x serial port header |
| rear_io | 2x USB 2.0, 1x PS/2, 3x USB 3.2 Gen 1, 1x USB Type-C, 1x RJ-45, 3x audio jacks, 2x antenna connectors |
| bios | AMI UEFI (128 Mbit flash), PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| q_flash_plus | Yes |
| warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors does the B760M GAMING WIFI6 PLUS GEN5 support?
This motherboard supports 12th, 13th, and 14th generation Intel Core processors (Core i9, i7, i5, i3), as well as Pentium Gold and Celeron models on the LGA 1700 socket.
How much DDR5 memory can this motherboard support?
The B760M GAMING WIFI6 PLUS GEN5 has two DDR5 DIMM slots and supports up to 128 GB of memory (64 GB per DIMM). 14th and 13th gen i9/i7 processors support DDR5 5600/5200/4800/4400 MT/s, while i5/i3 and 12th gen processors support DDR5 4800/4400 MT/s.
Does this motherboard support NVMe SSDs?
Yes, it features two M.2 Socket 3 connectors, both supporting PCIe 4.0 x4/x2 NVMe SSDs. One slot connects to the CPU and one to the chipset.
What wireless connectivity options are included?
The motherboard includes Realtek Wi-Fi 6 (802.11ax) supporting 2.4 GHz and 5 GHz bands with 80 MHz bandwidth, plus Bluetooth 5.3 for wireless peripherals.
What graphics output options are available?
The B760M GAMING WIFI6 PLUS GEN5 provides three video outputs: D-Sub (up to 1920×1200), HDMI 2.1 (up to 4096×2160), and DisplayPort 1.2 (up to 4096×2304).
Can I use this motherboard for RAID storage?
Yes, the four SATA 6 Gb/s connectors support RAID 0, RAID 1, RAID 5, and RAID 10 configurations for data redundancy and performance.
Is this motherboard suitable for compact PC builds?
Yes, the micro-ATX form factor (24.4 cm × 22.5 cm) makes it ideal for small form factor cases while still providing comprehensive connectivity and performance features.
What is the warranty period for this motherboard?
This product includes a 36-month warranty for peace of mind and reliability assurance.
