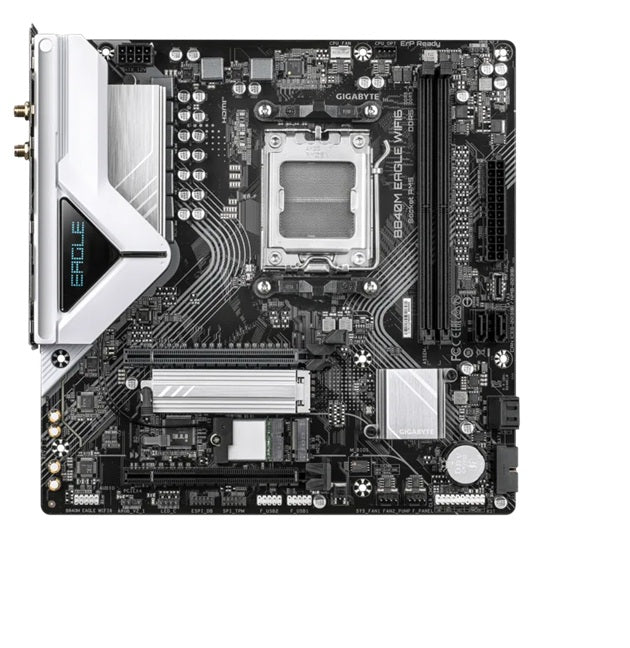

Gigabyte B840M EAGLE AMD AM5 Motherboard
Gigabyte B840M EAGLE AMD AM5 Motherboard
SKU:MBG-B840MEAGLEWIFI6
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B840MEAGLEWIFI6 |
| Availability | Out of Stock |
Overview
- The Gigabyte B840M EAGLE is a mid-range AM5 motherboard designed for builders seeking solid performance and modern connectivity. Supporting the latest AMD Ryzen 7000/8000/9000 series processors, it provides a practical platform for gaming, content creation, and general computing without premium pricing.
With dual DDR5 support up to 128 GB, dual M.2 NVMe slots, and four SATA ports, storage and memory configurations are flexible. The inclusion of Wi-Fi 6E and 2.5GbE LAN ensures modern network performance, while DisplayPort 1.4 and HDMI 2.1 outputs support high-resolution displays with HDR.
The board integrates CPU-connected PCIe lanes for rapid M.2 access and graphics expansion, with additional connectivity through the B840 chipset. Realtek audio codec supports multi-channel output for gaming and multimedia. Built-in RAID support for both NVMe and SATA devices adds data redundancy options.
Backed by a 36-month warranty, the B840M EAGLE suits builders and businesses planning AM5 system upgrades in 2024 and beyond.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | B840M EAGLE |
| Processor Socket | AMD AM5 |
| Supported Processors | AMD Ryzen 9000/8000/7000 Series |
| Chipset | AMD B840 |
| Memory Type | DDR5 |
| Memory Slots | 2 x DIMM |
| Maximum Memory | 128 GB (64 GB per DIMM) |
| Memory Speed Support | DDR5 7600/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MT/s |
| Memory Features | AMD EXPO, XMP, Dual Channel |
| M.2 Slots | 2 x Socket 3 M key |
| M.2 Slot 1 Spec | CPU-connected, PCIe 4.0 x4/x2, type 2580/2280 |
| M.2 Slot 2 Spec | Chipset-connected, PCIe 3.0 x2, type 2280 |
| SATA Ports | 4 x SATA 6Gb/s |
| PCIe Expansion Slots | 1 x PCIe x16 (CPU), 1 x PCIe x16 running at x4 (Chipset) |
| PCIe Gen Support | PCIe 4.0/3.0 (varies by CPU and slot) |
| Storage RAID Support | RAID 0/1/5/10 (NVMe), RAID 0/1/10 (SATA) |
| Video Output 1 | 1 x DisplayPort 1.4, max 3840x2160@144 Hz, HDR |
| Video Output 2 | 1 x HDMI 2.1, max 4096x2160@60 Hz, HDCP 2.3, HDR |
| Onboard Graphics | AMD Radeon Graphics (CPU-integrated) |
| Network | 1 x Realtek 2.5GbE LAN (2.5/1/0.1 Gbps) |
| Wireless | Wi-Fi 6E |
| Audio Codec | Realtek High Definition Audio |
| Audio Channels | 2/4/5.1/7.1-channel |
| USB Rear Ports | 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| USB Internal Headers | 1 x USB Type-C 3.2 Gen 1, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Power Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| Fan Headers | 1 x CPU, 1 x CPU/Water Pump, 1 x System, 1 x System/Water Pump |
| RGB Headers | 2 x Addressable RGB Gen2, 1 x RGB LED |
| Internal Connectors | Front panel, front audio, M.2 sockets, SATA, TPM header |
| Form Factor | Micro-ATX |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Which AMD Ryzen processors are compatible with the B840M EAGLE?
The B840M EAGLE supports AMD Ryzen 9000, 8000, and 7000 series processors in the AM5 socket. For the full CPU compatibility list, consult Gigabyte's official website, as support may vary by BIOS version.
What is the maximum memory capacity and speed?
The board supports up to 128 GB of DDR5 memory via two DIMM slots. Supported speeds range from DDR5-4400 to DDR5-7600 MT/s (with overclocking). The board supports AMD EXPO and Intel XMP memory profiles.
Can I use both M.2 slots simultaneously?
Yes, both M.2 slots can be used at the same time. The first slot (CPU-connected) supports PCIe 4.0 x4/x2, while the second (chipset-connected) runs at PCIe 3.0 x2. Both support NVMe SSDs and RAID configurations.
Does the B840M EAGLE have Wi-Fi connectivity?
Yes, the B840M EAGLE includes built-in Wi-Fi 6E, providing modern wireless connectivity alongside the 2.5GbE wired Ethernet port.
What video outputs are available?
The board features one DisplayPort 1.4 (supporting up to 3840x2160@144 Hz) and one HDMI 2.1 port (supporting up to 4096x2160@60 Hz). Both support HDR for high-quality displays.
Is the B840M EAGLE suitable for water cooling?
Yes, the board includes dedicated headers for water cooling pumps, with separate CPU and system cooling fan/pump headers for flexible liquid cooling setups.
What is the warranty coverage?
The Gigabyte B840M EAGLE includes a 36-month manufacturer warranty covering defects and hardware failure.
