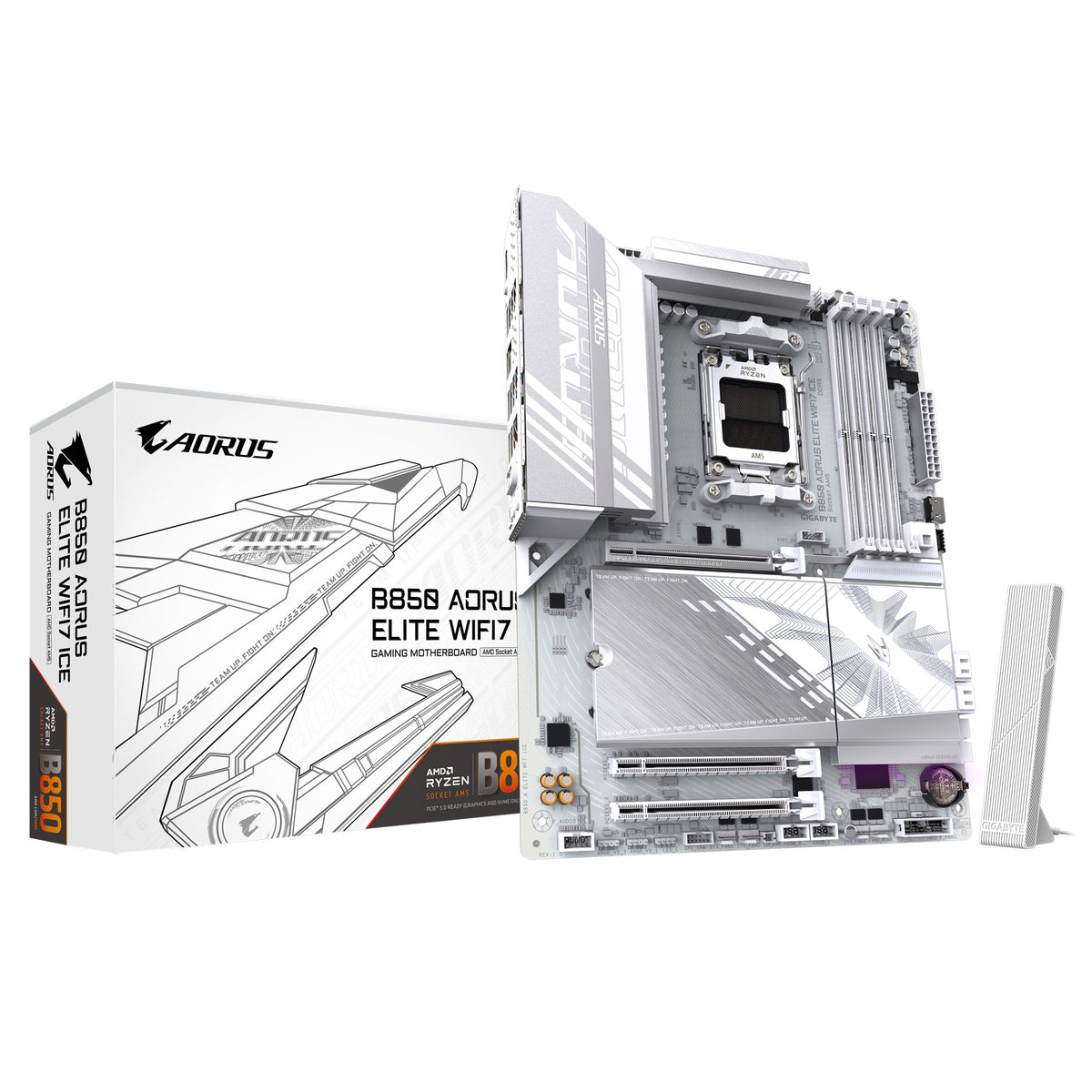

Gigabyte B850 A ELITE WF7 ICE AMD AM5 Motherboard
Gigabyte B850 A ELITE WF7 ICE AMD AM5 Motherboard
SKU:MBG-B850AELITEWF7ICE
The Gigabyte B850 A ELITE WF7 ICE is an AMD AM5 motherboard engineered for Ryzen 9000, 8000, and 7000 series processors. Featuring PCIe 5.0 support, Wi-Fi 7, DDR5 memory compatibility, and extensive storage options, it delivers performance and connectivity for modern gaming and workstation builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B850AELITEWF7ICE |
| Availability | In Stock |
Overview
- The Gigabyte B850 A ELITE WF7 ICE is a feature-rich AMD AM5 motherboard designed to support the latest Ryzen processors with modern connectivity and storage options. Built on the B850 chipset, it delivers PCIe 5.0 support on the primary expansion slot, Wi-Fi 7 wireless capability, and dual-channel DDR5 memory architecture for demanding gaming and professional workloads.
This motherboard excels in versatility with three M.2 slots (supporting up to PCIe 5.0), four SATA ports, and comprehensive RAID support for both NVMe and traditional storage. The integrated AMD Radeon graphics processor provides DisplayPort 1.4 and HDMI outputs, eliminating the need for a discrete GPU in non-gaming scenarios.
Connectivity is a strong point, with Wi-Fi 7, 2.5GbE Realtek LAN, and extensive USB 3.2 options (9 ports total) across the back panel and internal headers. A 36-month warranty provides peace of mind for system builders and businesses investing in reliable platform hardware.
Ideal for gamers, content creators, and workstation users, the B850 A ELITE WF7 ICE balances performance, expandability, and future-ready technology in a feature-complete platform.
Specifications
| Socket | AMD Socket AM5 |
|---|---|
| Chipset | AMD B850 |
| CPU Support | AMD Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series |
| Memory Type | DDR5 DIMM |
| Memory Slots | 4 x DDR5 DIMM sockets |
| Maximum Memory | 256 GB (64 GB single DIMM maximum) |
| Memory Speeds Supported | DDR5 8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MT/s |
| Memory Architecture | Dual channel |
| Memory Profiles | AMD EXPO, XMP (Extreme Memory Profile) |
| Primary PCIe Slot | 1 x PCI Express x16 (CPU-integrated, PCIe 5.0 x16 for Ryzen 9000/7000) |
| Secondary PCIe Slots | 2 x PCI Express x16 (Chipset, PCIe 3.0 x1 mode) |
| M.2 Slot 1 (M2A_CPU) | PCIe 5.0 x4/x2 (Ryzen 9000/7000), PCIe 4.0 x4/x2 (Ryzen 8000) |
| M.2 Slot 2 (M2B_CPU) | PCIe 4.0 x4/x2 (Ryzen 9000/8000), PCIe 4.0 x2 (Phoenix 2) |
| M.2 Slot 3 (M2C_SB) | PCIe 4.0 x4/x2 |
| M.2 Supported Sizes | 2280, 2580, 22110, 25110 |
| SATA Ports | 4 x SATA 6Gb/s connectors |
| NVMe RAID Support | RAID 0, RAID 1, RAID 5 (Ryzen 9000 only), RAID 10 |
| SATA RAID Support | RAID 0, RAID 1, RAID 10 |
| Wireless | Realtek Wi-Fi 7 (RTL8922AE) |
| LAN | Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) |
| GPU Output 1 | 1 x DisplayPort 1.4 (up to 3840x2160@144 Hz with HDR) |
| GPU Output 2 | 1 x HDMI 1.4 (up to 1920x1080@30 Hz) |
| USB 3.2 Gen 2 Type-C (Rear) | 1 x USB Type-C port |
| USB 3.2 Gen 2 Type-A (Rear) | 2 x USB Type-A ports (red) |
| USB 3.2 Gen 2x2 (Internal Header) | 1 x USB Type-C port |
| USB 3.2 Gen 1 (Rear) | 1 x USB 3.2 Gen 1 Type-A port |
| USB 3.2 Gen 1 (Internal Headers) | 2 x USB 3.2 Gen 1 Type-A ports |
| USB 3.2 Gen 1 (Rear Panel via Hub) | 4 x USB 3.2 Gen 1 Type-A ports |
| USB 2.0 Ports (Rear) | 4 x USB 2.0/1.1 ports |
| USB 2.0 Headers | 4 x USB 2.0/1.1 ports (internal headers) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors are compatible with the B850 A ELITE WF7 ICE?
This motherboard supports AMD Ryzen 9000, 8000, and 7000 series processors in the AM5 socket. For the most up-to-date CPU compatibility list, refer to Gigabyte's official website.
Does this motherboard support DDR5 memory overclocking?
Yes. The board supports DDR5 memory up to 8200 MT/s (overclocked), and is compatible with both AMD EXPO and Intel XMP memory profiles for optimised performance.
What is the maximum NVMe storage capacity this motherboard supports?
With three M.2 slots, you can install three NVMe SSDs simultaneously. Each slot supports 2280, 2580, 22110, and 25110 form factors, with capacities dependent on the drives you choose.
Does the B850 A ELITE WF7 ICE have integrated graphics?
Yes. The motherboard features integrated AMD Radeon Graphics with DisplayPort 1.4 (up to 3840x2160@144 Hz) and HDMI 1.4 (up to 1920x1080@30 Hz) outputs.
Can I use this motherboard without a dedicated graphics card?
Yes, for non-gaming workloads. The integrated AMD Radeon Graphics is sufficient for office applications and general computing, but a discrete GPU is recommended for gaming and graphics-intensive tasks.
What wireless and wired connectivity options are available?
The board includes Wi-Fi 7 (Realtek RTL8922AE) for wireless connectivity and a 2.5GbE Realtek LAN port for wired networking. Multiple USB 3.2 ports provide additional connectivity options.
Does this motherboard support RAID configurations?
Yes. It supports RAID 0, 1, 5 (Ryzen 9000 only), and 10 for NVMe SSDs, and RAID 0, 1, and 10 for SATA drives.
What is the warranty period for the Gigabyte B850 A ELITE WF7 ICE?
Gigabyte provides a 36-month (3-year) warranty on this motherboard.
