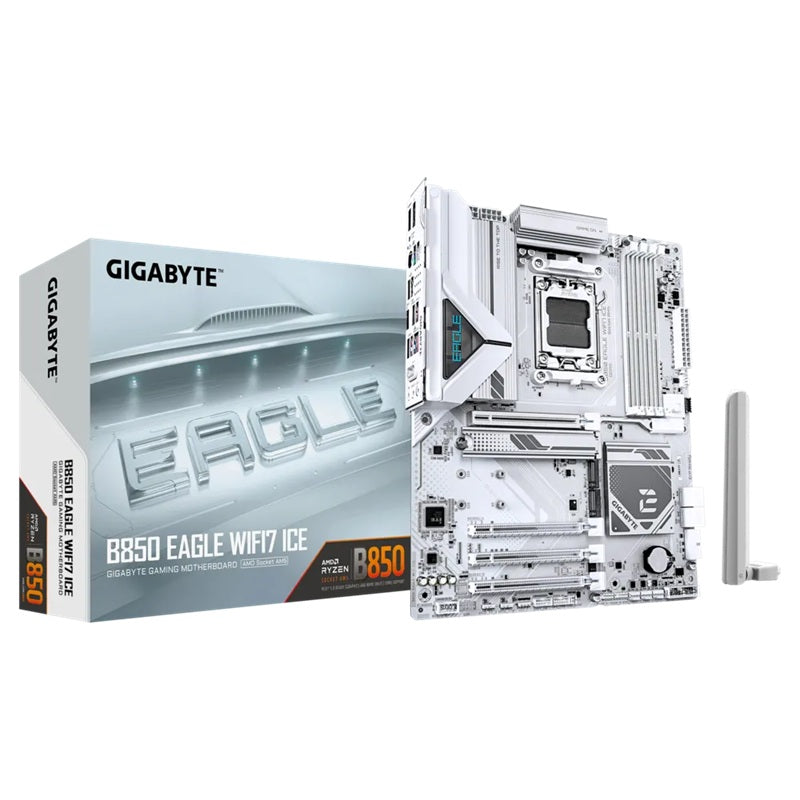

Gigabyte B850 EAGLE WF7 ICE AMD AM5 Motherboard
Gigabyte B850 EAGLE WF7 ICE AMD AM5 Motherboard
SKU:MBG-B850EAGLEWF7ICE
The Gigabyte B850 EAGLE WF7 ICE is a high-performance AMD AM5 motherboard designed for modern Ryzen builds. Featuring DDR5 support up to 256 GB, PCIe 5.0 connectivity, Wi-Fi 7, and extensive expansion options, it delivers excellent platform stability for gaming, content creation, and productivity workstations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B850EAGLEWF7ICE |
| Availability | In Stock |
Overview
- The Gigabyte B850 EAGLE WF7 ICE is a feature-rich AMD B850 chipset motherboard built for enthusiasts and professionals. It supports all current and upcoming Ryzen processors on the AM5 socket, providing compatibility across three generations of CPUs. The board delivers cutting-edge connectivity with PCIe 5.0 support, Wi-Fi 7, and 2.5GbE networking, making it ideal for demanding workloads.
With four DDR5 DIMM slots supporting up to 256 GB of memory and three M.2 NVMe connections, the board offers substantial bandwidth for memory-intensive applications and fast storage access. The integrated AMD Radeon graphics support dual video outputs via HDMI 2.1 and DisplayPort 1.4, both capable of 4K and high-refresh-rate displays.
The B850 EAGLE WF7 ICE includes comprehensive expansion capabilities with four PCI Express slots and multiple USB 3.2 ports. Whether building a high-end gaming system, content creation workstation, or professional productivity machine, this motherboard provides the performance, connectivity, and reliability needed for modern computing demands.
Specifications
| CPU Socket | AMD Socket AM5 |
|---|---|
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 Series |
| Chipset | AMD B850 |
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Architecture | Dual channel |
| Memory Speeds | DDR5 4400–8200 MT/s (with overclocking) |
| Memory Profiles | AMD EXPO, XMP |
| Onboard GPU | AMD Radeon Graphics (CPU integrated) |
| HDMI Output | 1 × HDMI 2.1, max 4096×2160@60 Hz |
| DisplayPort Output | 1 × DisplayPort 1.4, max 3840×2160@144 Hz |
| Network | Realtek 2.5GbE Ethernet (2.5/1/0.1 Gbps) |
| Wireless | Realtek Wi-Fi 7 RTL8922AE (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz) |
| Bluetooth | 5.4 |
| PCI Express Slots | 4 total (1 × PCIe x16 CPU, 1 × PCIe x4 Chipset, 2 × PCIe x1 Chipset) |
| PCIe Support | PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0/3.0 (Ryzen 8000) |
| M.2 Connectors | 3 total (1 × PCIe 5.0/4.0, 1 × PCIe 4.0, 1 × PCIe 4.0) |
| M.2 Form Factors | Type 22110/2280 |
| SATA Ports | 4 × SATA 6 Gbps |
| USB 3.2 Gen 2 | 2 × Type-A (rear), 1 × Type-C (rear) |
| USB 3.2 Gen 1 | 1 × Type-C (rear), 4 × Type-A (2 rear + 2 internal header) |
| USB 2.0 Ports | 8 total (4 rear + 4 internal header) |
| Form Factor | ATX |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors does this motherboard support?
The B850 EAGLE WF7 ICE supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. For the most current compatibility list, check Gigabyte's official CPU support page.
What is the maximum memory capacity and speed?
The motherboard supports up to 256 GB of DDR5 memory across four DIMM slots. It supports speeds from DDR5 4400 MT/s up to 8200 MT/s with overclocking, and includes AMD EXPO and XMP profile support.
Does this board support PCIe 5.0?
Yes. The primary x16 PCIe slot supports PCIe 5.0 x16 when paired with Ryzen 9000 or 7000 Series processors. Ryzen 8000 Series support PCIe 4.0. Secondary slots operate at PCIe 4.0 x4 and PCIe 3.0 x1.
What Wi-Fi and Bluetooth standards are included?
The board includes Realtek Wi-Fi 7 (802.11be) with support for 2.4, 5, and 6 GHz bands, plus Bluetooth 5.4 for wireless peripherals and devices.
How many NVMe M.2 slots are available?
There are three M.2 slots: two connected to the CPU (supporting PCIe 5.0 and 4.0) and one via the chipset (PCIe 4.0). All support type 22110/2280 form factor SSDs.
What video outputs are available?
The board provides one HDMI 2.1 port (4096×2160@60 Hz) and one DisplayPort 1.4 (3840×2160@144 Hz) for dual-monitor support with integrated AMD Radeon graphics.
Is this motherboard suitable for gaming and content creation?
Yes. The combination of DDR5 memory, PCIe 5.0 expansion, fast NVMe storage, and modern networking makes it well-suited for gaming systems, video editing, 3D rendering, and professional workstations.
What warranty is included?
The B850 EAGLE WF7 ICE comes with a 36-month manufacturer warranty.
