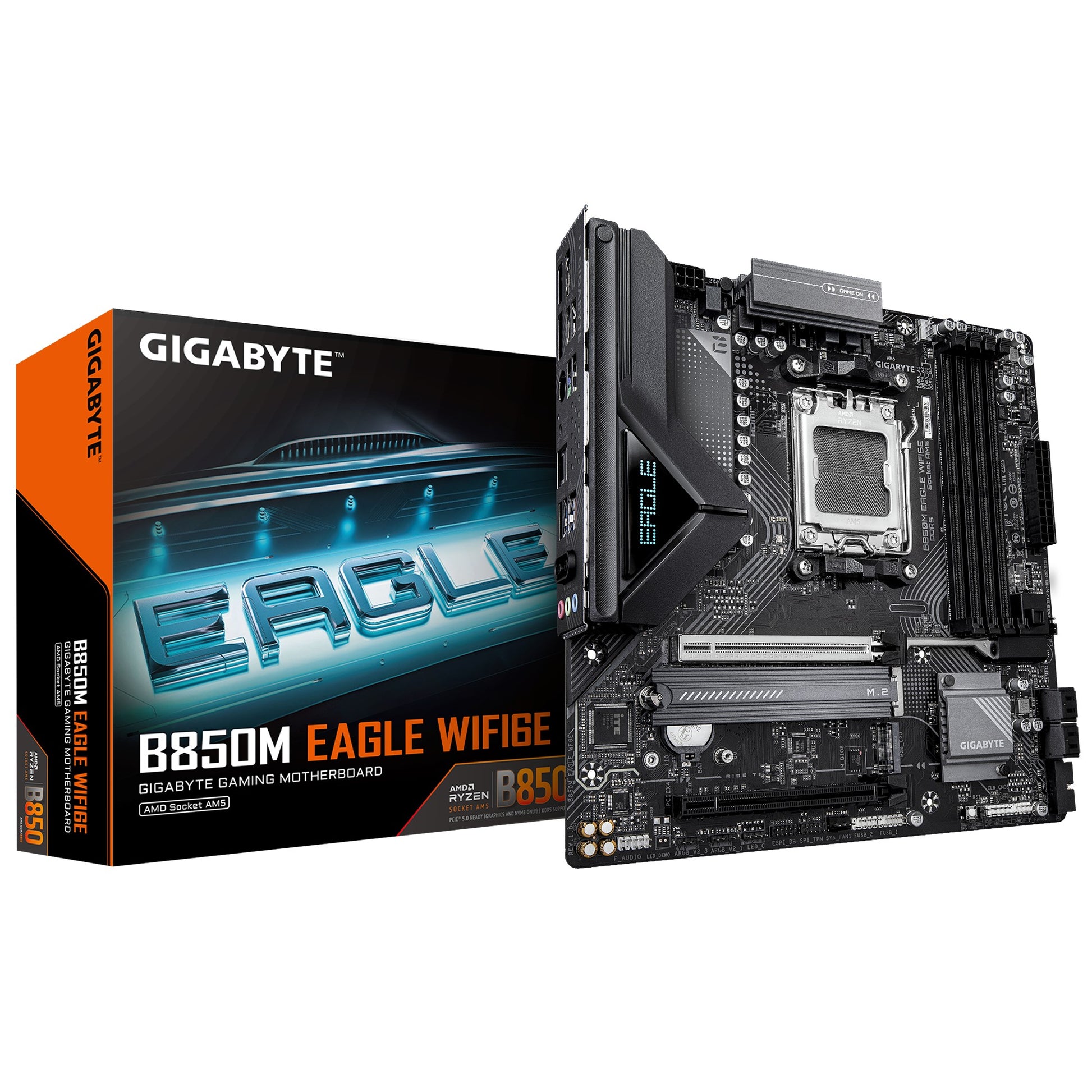

Gigabyte B850M EAGLE WF6E AMD AM5 Motherboard
Gigabyte B850M EAGLE WF6E AMD AM5 Motherboard
SKU:MBG-B850MEAGLEWF6E
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B850MEAGLEWF6E |
| Availability | In Stock |
Overview
- The Gigabyte B850M EAGLE WF6E is a robust micro-ATX motherboard built for modern AMD Ryzen processors. It delivers enterprise-grade performance in a compact form factor, making it ideal for space-constrained builds without compromising connectivity or expandability.
This board supports the latest Ryzen 7000 and 9000 series processors with full PCIe 5.0 compatibility on supported CPUs, ensuring future-proof performance for demanding workloads. The four DDR5 DIMM slots accommodate up to 256GB of memory with AMD EXPO and XMP support for optimised overclocking.
Connectivity is comprehensive, featuring Wi-Fi 6E for fast wireless speeds, a 2.5GbE LAN port, dual M.2 NVMe slots with RAID capabilities, and four SATA ports. Multiple USB 3.2 ports (both Type-A and Type-C) provide ample expansion options for storage, peripherals, and external devices.
Backed by a 36-month warranty, the B850M EAGLE WF6E is a reliable choice for builders, content creators, and IT professionals seeking compact, high-performance computing.
Specifications
| Form Factor | Micro-ATX |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Supported CPUs | Ryzen 9000, 8000, and 7000 series processors |
| Chipset | AMD B850 |
| Memory Slots | 4 x DDR5 DIMM |
| Max Memory | 256GB (64GB per DIMM) |
| Memory Architecture | Dual channel |
| Memory Speeds Supported | 4400–8200 MT/s (DDR5) |
| Memory Profiles | AMD EXPO, XMP |
| Video Outputs | 1 x HDMI (4096x2160@60Hz, HDMI 2.1), 2 x DisplayPort (3840x2160@144Hz, DP 1.4) |
| Max Simultaneous Displays | 3 |
| Expansion Slots | 1 x PCIe x16 (CPU, PCIe 5.0 on Ryzen 9000/7000), 1 x PCIe x16 (Chipset, PCIe 3.0 x4) |
| M.2 Slots | 2 (M2A_CPU: PCIe 5.0/4.0, M2B_CPU: PCIe 4.0) |
| NVMe Support | Socket 3, M key; RAID 0, 1, 5, 10 (RAID 5 only on Ryzen 9000) |
| SATA Ports | 4 x SATA 6Gb/s |
| SATA RAID | RAID 0, 1, 10 |
| LAN | Realtek 2.5GbE (2.5/1/0.1 Gbps) |
| Wireless | Realtek Wi-Fi 6E RTL8852CE |
| USB (Rear Panel) | 1 x USB 3.2 Gen 2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 |
| USB (Internal Headers) | 1 x USB 3.2 Gen 2 Type-C header, 2 x USB 3.2 Gen 1 headers, 4 x USB 2.0 headers |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors are compatible with the B850M EAGLE WF6E?
This motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with Socket AM5. For the most current CPU support list, please refer to Gigabyte's official website.
Does this motherboard support PCIe 5.0?
Yes, the PCIe x16 slot supports PCIe 5.0 on Ryzen 7000 and 9000 series processors. Ryzen 8000 series support varies (PCIe 4.0 x8 on Phoenix 1, PCIe 4.0 x4 on Phoenix 2).
How much DDR5 memory can this motherboard support?
The B850M EAGLE WF6E has 4 DDR5 DIMM slots and supports up to 256GB of memory (64GB per DIMM). It supports AMD EXPO and XMP memory profiles.
Can I use M.2 NVMe SSDs in RAID configuration?
Yes, the motherboard supports RAID 0, 1, 5, and 10 for NVMe SSDs. Note that RAID 5 is only available on Ryzen 9000 series processors.
What wireless connectivity options are available?
The board includes Wi-Fi 6E (Realtek RTL8852CE) for wireless connectivity and a Realtek 2.5GbE LAN chip for wired networking.
Does the B850M EAGLE WF6E have integrated graphics output?
Yes, it features integrated AMD Radeon Graphics with 1 x HDMI (up to 4096x2160@60Hz) and 2 x DisplayPorts (up to 3840x2160@144Hz). It supports up to three displays simultaneously. Graphics support depends on CPU compatibility.
Is this motherboard suitable for small form factor builds?
Yes, the micro-ATX form factor makes it ideal for compact builds, ITX cases, and space-constrained environments where full-size ATX boards won't fit.
What is the warranty period?
The Gigabyte B850M EAGLE WF6E comes with a 36-month manufacturer warranty.
