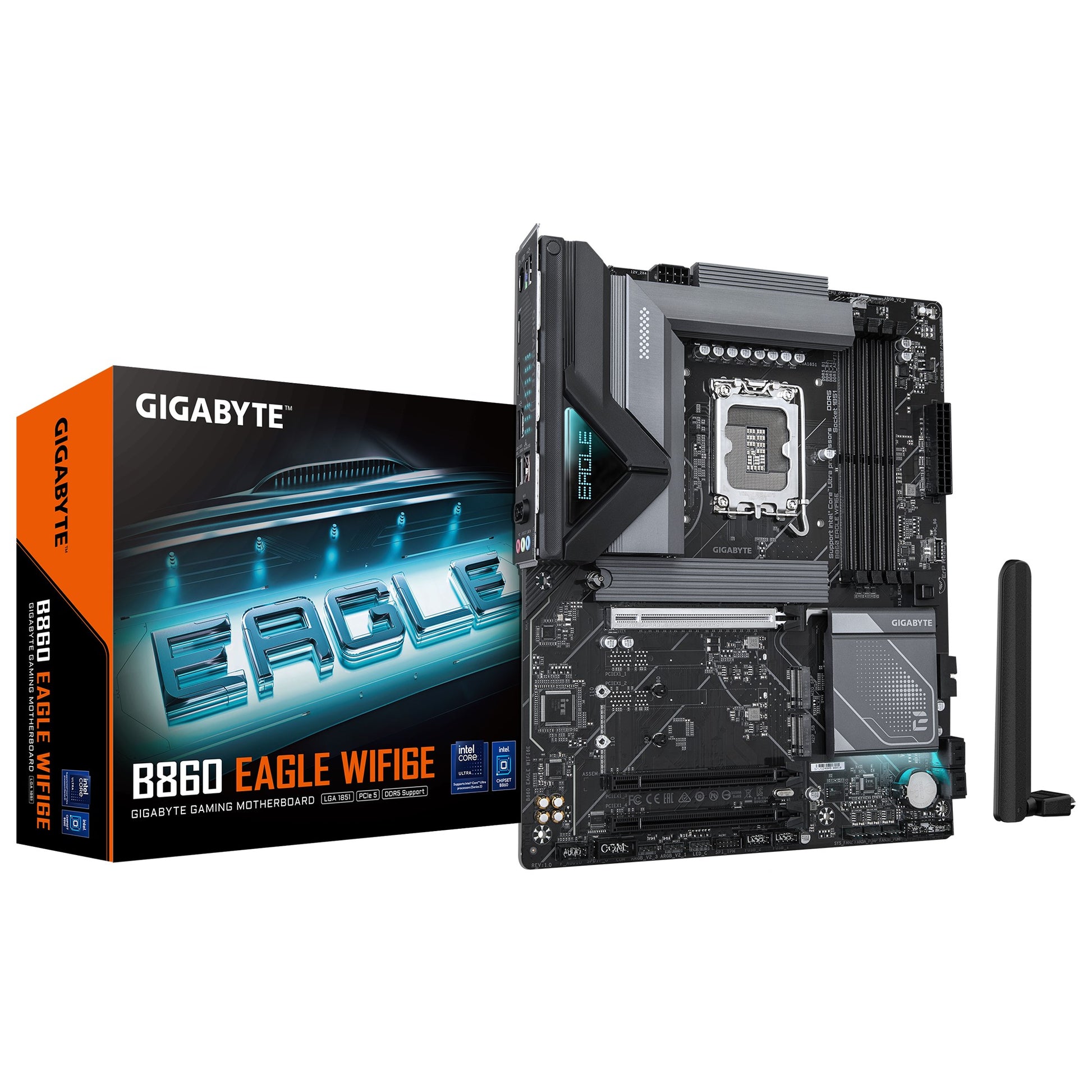

Gigabyte B860 EAGLE WIFI6E Intel LGA1851 Motherboard
Gigabyte B860 EAGLE WIFI6E Intel LGA1851 Motherboard
SKU:MBG-B860EAGLEWF6E
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B860EAGLEWF6E |
| Availability | In Stock |
Overview
- The Gigabyte B860 EAGLE WIFI6E is a feature-rich Intel LGA1851 motherboard built for Intel Core Ultra processors. It combines cutting-edge PCIe 5.0 technology with comprehensive connectivity options, including Wi-Fi 6E and 2.5 GbE LAN, making it suitable for demanding workloads and modern office environments.
This motherboard supports up to 256 GB of DDR5 memory across four DIMM slots, providing headroom for memory-intensive applications. The three M.2 slots deliver fast NVMe SSD integration, with the CPU-connected slot offering PCIe 5.0 speeds for maximum performance.
With four SATA ports and RAID 0/1/5/10 support, the B860 EAGLE WIFI6E accommodates mixed storage configurations. The integrated graphics support dual-monitor output via HDMI 2.1 and DisplayPort 2.1, eliminating the need for a dedicated graphics card in office and productivity scenarios.
Three-year manufacturer warranty and comprehensive USB connectivity, including USB Type-C ports, round out a robust platform for Australian businesses seeking reliability and performance.
Specifications
| Chipset | Intel B860 Express |
|---|---|
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra Processors |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM |
| Max Memory Support | 256 GB |
| Memory Speeds Supported | DDR5 5600–9066 MT/s (including overclocked profiles) |
| Memory Features | Dual channel, XMP support, ECC Un-buffered support |
| PCIe Slot 1 | 1 x PCI Express x16 (PCIe 5.0, CPU-connected) |
| PCIe Slots 2–3 | 2 x PCI Express x16 (PCIe 4.0, running at x1, chipset-connected) |
| M.2 Slot 1 | 1 x M.2 Socket 3 (PCIe 5.0 x4/x2, CPU-connected) |
| M.2 Slots 2–3 | 2 x M.2 Socket 3 (PCIe 4.0 x4/x2, chipset-connected) |
| SATA Ports | 4 x SATA 6 Gb/s |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 |
| HDMI Output | 1 x HDMI 2.1 (up to 4096 x 2160 @ 60 Hz, HDCP 2.3) |
| DisplayPort Output | 1 x DisplayPort 2.1 (up to 3840 x 2160 @ 144 Hz) |
| LAN | 1 x Realtek 2.5 GbE (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Intel Wi-Fi 6E AX211 |
| USB 3.2 Gen 2x2 | 1 x Type-C (back panel) |
| USB 3.2 Gen 2 | 1 x Type-A (back panel) |
| USB 3.2 Gen 1 | 1 x Type-C (internal header), 2 x Type-A (internal headers) |
| USB 2.0/1.1 | 4 x back panel, 4 x internal headers |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors are compatible with the Gigabyte B860 EAGLE WIFI6E?
This motherboard supports Intel Core Ultra processors via the LGA1851 socket. For the complete and latest CPU support list, please refer to Gigabyte's official website.
What is the maximum amount of memory supported?
The B860 EAGLE WIFI6E supports up to 256 GB of DDR5 memory across four DIMM slots, with single DIMM capacity up to 64 GB.
Does this motherboard support PCIe 5.0?
Yes. The primary PCI Express x16 slot (CPU-connected) supports PCIe 5.0. The two secondary slots support PCIe 4.0. The M.2 slot connected to the CPU also supports PCIe 5.0.
Can I use this motherboard without a dedicated graphics card?
Yes. The B860 EAGLE WIFI6E features integrated graphics via Intel HD Graphics, with HDMI 2.1 and DisplayPort 2.1 support for 4K display output, making it suitable for office and productivity work without a dedicated GPU.
What storage connectivity options are available?
The motherboard includes three M.2 slots (supporting NVMe SSDs) and four SATA ports for traditional storage drives. RAID 0, 1, 5, and 10 are supported for SATA devices.
Does the Gigabyte B860 EAGLE WIFI6E include Wi-Fi?
Yes. The motherboard features Intel Wi-Fi 6E (AX211) for wireless connectivity, along with a 2.5 GbE Realtek LAN port for wired networking.
What warranty does this motherboard come with?
The Gigabyte B860 EAGLE WIFI6E includes a 36-month manufacturer warranty.
What USB connectivity is provided?
The motherboard features multiple USB options: USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 Type-C and Type-A ports, plus USB 2.0/1.1 ports on the back panel and via internal headers for case headers.
