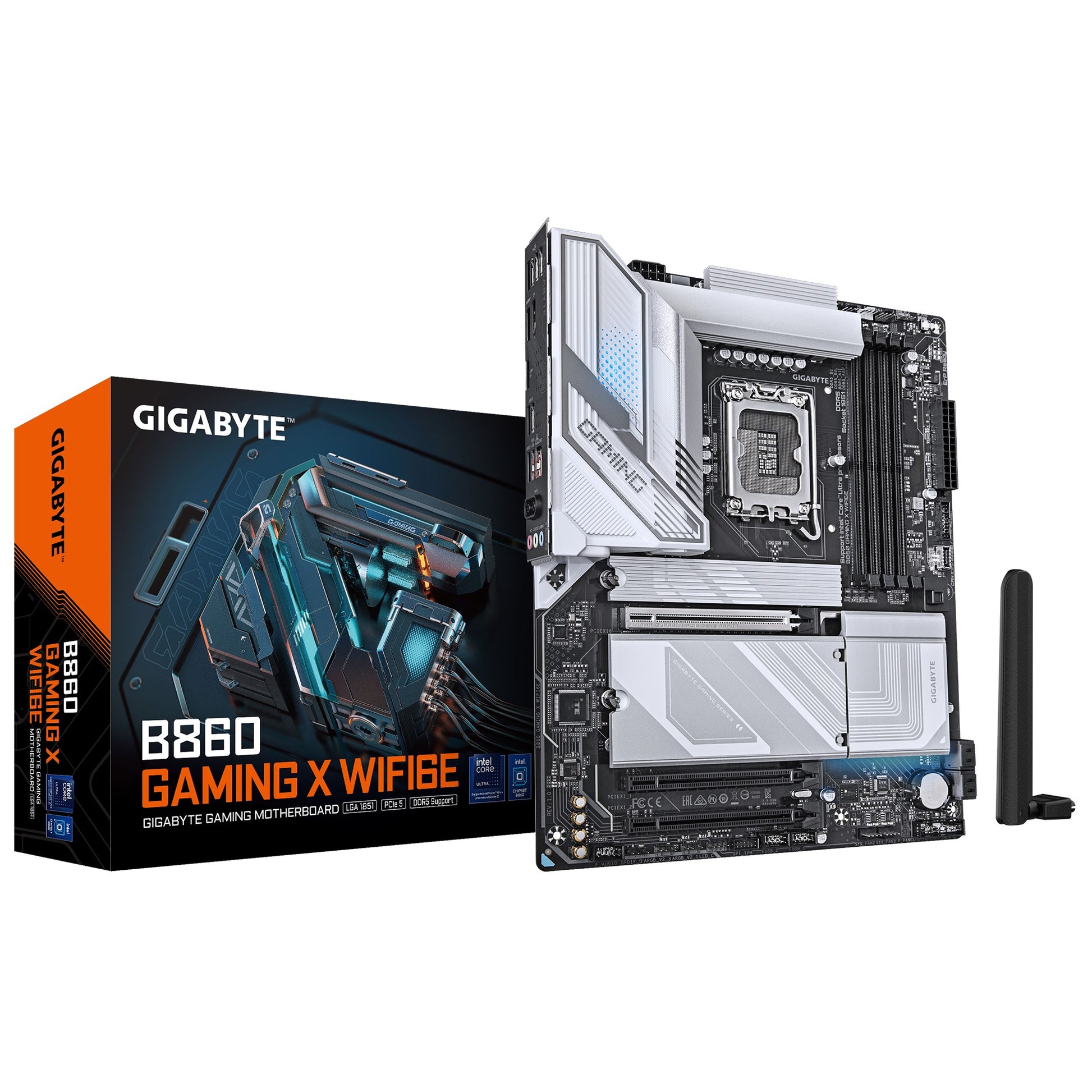

Gigabyte B860 GAMING X WIFI6E Motherboard
Gigabyte B860 GAMING X WIFI6E Motherboard
SKU:MBG-B860GAMINGXWF6E
The Gigabyte B860 GAMING X WIFI6E is an Intel B860 chipset motherboard designed for Intel Core Ultra processors. Featuring DDR5 memory support, PCIe 5.0 expansion, WiFi 6E connectivity, and comprehensive storage options, it delivers performance and flexibility for gaming and professional builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B860GAMINGXWF6E |
| Availability | In Stock |
Overview
- The Gigabyte B860 GAMING X WIFI6E is a full-featured Intel B860 motherboard built for Intel Core Ultra processors. It combines cutting-edge connectivity standards with robust expansion capabilities, making it suitable for both gaming enthusiasts and professional users requiring performance and reliability.
With PCIe 5.0 support, DDR5 memory capacity up to 256 GB, and integrated WiFi 6E, this motherboard provides the foundation for high-performance systems. The triple-display configuration, extensive USB connectivity, and multiple storage options ensure flexibility for diverse workloads and system configurations.
The board includes RAID support for SATA storage, comprehensive USB 3.2 infrastructure, and modern video output standards including DisplayPort 2.1 and HDMI 2.1. This combination of features makes it an ideal choice for builders seeking a capable and future-ready platform.
Specifications
| Chipset | Intel B860 Express |
|---|---|
| CPU Socket | LGA1851 |
| Supported Processors | Intel Core Ultra processors |
| Memory Type | DDR5 |
| Memory Slots | 4x DIMM |
| Maximum Memory | 256 GB (64 GB per DIMM) |
| Memory Speeds | DDR5 5600 MT/s to 9066 MT/s (OC) |
| Memory Features | XMP support, ECC Un-buffered and non-ECC support, dual-channel architecture |
| PCIe Slots | 1x PCIe 5.0 x16 (CPU), 2x PCIe 4.0 x1 (Chipset) |
| M.2 Slots | 3x (1x PCIe 5.0 x4/x2 CPU, 2x PCIe 4.0 x4/x2 Chipset) |
| M.2 Form Factors | 2280, 22110, 2580, 25110 |
| SATA Ports | 4x SATA 6Gb/s |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 |
| LAN Chipset | Realtek 2.5GbE |
| LAN Speeds | 2.5 Gbps, 1 Gbps, 100 Mbps |
| Wireless Module | Intel WiFi 6E AX211 |
| Video Outputs | 1x USB4 Type-C (DisplayPort), 1x HDMI 2.1, 1x DisplayPort 2.1 |
| Maximum Display Resolution | 3840x2160@144 Hz (USB4/DisplayPort), 4096x2160@60 Hz (HDMI) |
| Multi-Display Support | Up to triple-display |
| USB4 Ports | 1x (CPU, back panel) |
| USB 3.2 Gen 2 Ports | 1x Type-C (internal header), 1x Type-A (back panel) |
| USB 3.2 Gen 1 Ports | 4x (2x back panel, 2x internal headers) |
| USB 2.0 Ports | 9x (5x back panel, 4x internal headers) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Which Intel processors are compatible with the B860 GAMING X WIFI6E?
This motherboard supports Intel Core Ultra processors with LGA1851 socket. For the complete and latest CPU compatibility list, please refer to Gigabyte's official website, as support may vary with BIOS updates.
What is the maximum DDR5 memory supported?
The motherboard supports up to 256 GB of DDR5 memory across 4 DIMM slots, with each slot supporting up to 64 GB single DIMM capacity. Memory speeds range from DDR5-5600 to DDR5-9066 MT/s with overclocking.
Does this motherboard support NVMe SSDs?
Yes, it features 3x M.2 slots. One slot on the CPU supports PCIe 5.0, while two slots on the chipset support PCIe 4.0. It supports M.2 2280, 22110, 2580, and 25110 form factors.
What wireless and networking connectivity is included?
The motherboard includes Intel WiFi 6E (AX211) for wireless connectivity and a Realtek 2.5GbE LAN chip for wired networking at speeds up to 2.5 Gbps, 1 Gbps, or 100 Mbps.
How many display outputs does the B860 GAMING X WIFI6E have?
The motherboard supports triple-display output via USB4 Type-C (DisplayPort, up to 3840x2160@144 Hz), HDMI 2.1 (up to 4096x2160@60 Hz), and DisplayPort 2.1 (up to 3840x2160@144 Hz).
Does this motherboard support RAID?
Yes, it supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices via the integrated controller.
What is the warranty period?
The Gigabyte B860 GAMING X WIFI6E comes with a 36-month manufacturer warranty.
Can I use PCIe 4.0 graphics cards in the PCIe 5.0 slot?
Yes, the primary PCIe x16 slot supports both PCIe 5.0 and earlier generation cards. However, ensure you install your graphics card in the main PCIEX16 slot if it is the only expansion card, as this slot is connected directly to the CPU.
