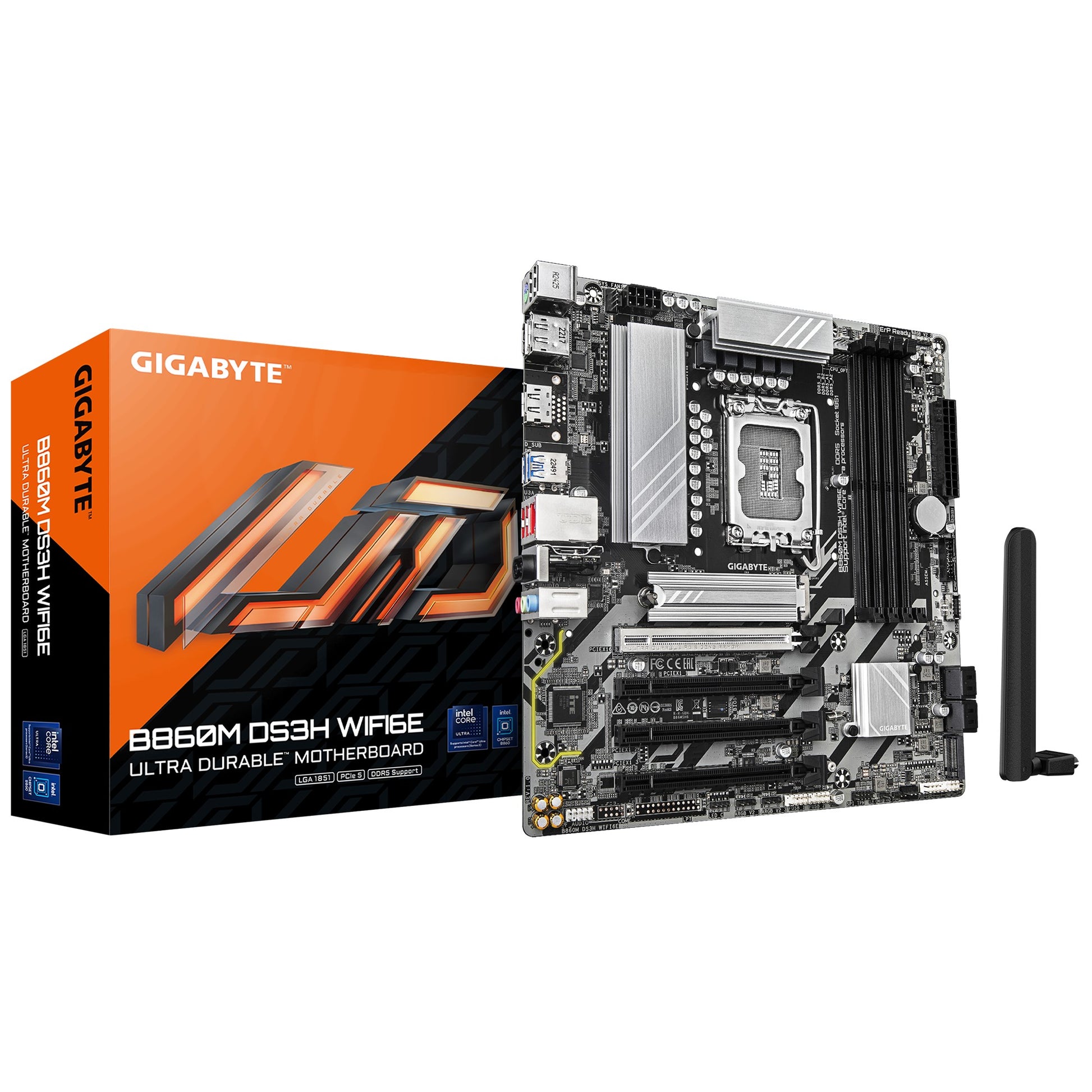

Gigabyte B860M DS3H WIFI6E Motherboard
Gigabyte B860M DS3H WIFI6E Motherboard
SKU:MBG-B860MDS3HWF6E
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B860MDS3HWF6E |
| Availability | In Stock |
Overview
- The Gigabyte B860M DS3H WIFI6E is a compact yet feature-rich micro-ATX motherboard designed for Intel Core Ultra processors. Built on the Intel B860 Express chipset, it provides enterprise-grade connectivity and storage options in a space-efficient form factor.
This motherboard excels in mixed workload environments, supporting up to 256GB of DDR5 memory and offering PCIe 5.0 bandwidth for next-generation storage devices and graphics cards. The integrated Intel Wi-Fi 6E module ensures modern wireless performance, while the 2.5GbE Ethernet port delivers stable wired connectivity.
With dual M.2 slots, four SATA ports, and comprehensive USB 3.2 support, the B860M DS3H WIFI6E provides flexibility for storage expansion and peripheral connectivity. The onboard graphics processor supports triple-display configurations via HDMI 2.1 and DisplayPort 2.1, making it suitable for multi-monitor business environments.
Ideal for organisations building efficient workstations, servers, or upgrading to Intel's latest processor generation, this motherboard combines reliability with modern technology at a practical price point.
Specifications
| Chipset | Intel B860 Express |
|---|---|
| Socket | Intel LGA1851 |
| Processor Support | Intel Core Ultra Processors |
| Memory Type | DDR5 |
| Memory Slots | 4 x DDR5 DIMM |
| Maximum Memory | 256GB (64GB per DIMM) |
| Memory Speed Support | DDR5 5600 / 6400 / 6600 / 6800 / 7000 / 7200 / 7400 / 7600 / 7800 / 7900 / 7950 / 8000 / 8200 / 8266 / 8400 / 8600 / 8800 / 9066 MT/s (with overclocking) |
| Memory Features | ECC Un-buffered support, XMP profile support, dual channel architecture |
| PCI Express Slots | 1 x PCIe 5.0 x16 (CPU), 3 x PCIe 4.0 x1 (Chipset) |
| M.2 Slots | 2 x M.2 Socket 3 (type 2280): 1 x PCIe 5.0 x4/x2 (CPU), 1 x PCIe 4.0 x4/x2 (Chipset) |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 |
| Ethernet | Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wireless | Intel Wi-Fi 6E AX211 |
| HDMI Ports | 1 x HDMI 2.1 (up to 4096x2160@60Hz) |
| DisplayPort | 2 x DisplayPort 2.1 (up to 3840x2160@144Hz) |
| Graphics | Intel HD Graphics (integrated, supports up to triple-display) |
| USB 3.2 Gen 2 | 1 x Type-C, 1 x Type-A |
| USB 3.2 Gen 1 | 4 x Type-A (2 back panel, 2 internal header) |
| USB 2.0 | 7 x ports (3 back panel, 4 internal headers) |
| Form Factor | Micro-ATX |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors does this motherboard support?
The B860M DS3H WIFI6E supports Intel Core Ultra processors with LGA1851 socket. For the complete and latest CPU compatibility list, refer to Gigabyte's official website.
What is the maximum amount of RAM this motherboard can support?
The motherboard supports up to 256GB of DDR5 memory across its 4 DIMM slots, with a maximum of 64GB per single DIMM.
Does this motherboard support NVMe SSDs?
Yes, it features 2 x M.2 slots: one PCIe 5.0 slot connected to the CPU and one PCIe 4.0 slot connected to the chipset, both supporting type 2280 NVMe SSDs.
What wireless connectivity options are available?
The motherboard includes Intel Wi-Fi 6E AX211 module for wireless connectivity, plus a 2.5GbE Ethernet port for wired connection with multi-speed LAN support.
Can I run multiple displays on this motherboard?
Yes, the integrated graphics processor supports up to triple-display configuration through 1 x HDMI 2.1 port and 2 x DisplayPort 2.1 ports.
Is this a full-size ATX motherboard?
No, this is a micro-ATX form factor motherboard, making it more compact and suitable for smaller chassis whilst retaining extensive connectivity and expansion options.
What RAID configurations are supported?
The motherboard supports RAID 0, 1, 5, and 10 for SATA storage devices, providing flexibility for data redundancy and performance.
What is the warranty period?
This motherboard comes with a 36-month warranty covering manufacturing defects.
