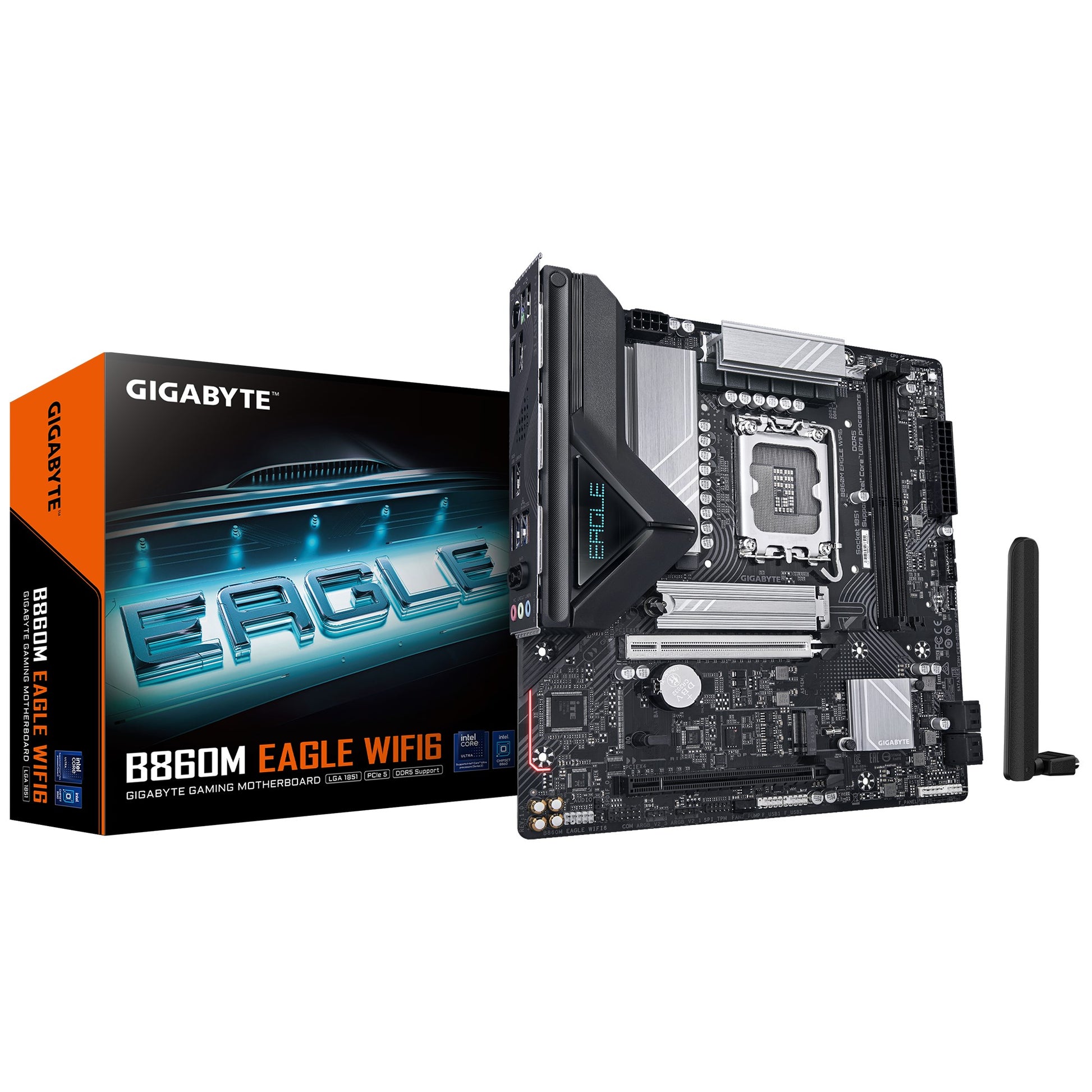

Gigabyte B860M EAGLE WIFI6 Micro-ATX Motherboard
Gigabyte B860M EAGLE WIFI6 Micro-ATX Motherboard
SKU:MBG-B860MEAGLEWIFI6
The Gigabyte B860M EAGLE WIFI6 is a compact micro-ATX motherboard designed for Intel Core Ultra processors. Featuring DDR5 memory support up to 128GB, PCIe 5.0 NVMe storage, Wi-Fi 6 connectivity, and dual M.2 slots, it delivers reliable performance for business workstations and compact builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-B860MEAGLEWIFI6 |
| Availability | In Stock |
Overview
- The Gigabyte B860M EAGLE WIFI6 is a feature-rich micro-ATX motherboard engineered for Intel's latest Core Ultra processors. Its compact form factor makes it ideal for space-constrained office environments, server builds, and professional workstations without compromising on performance or connectivity.
This motherboard delivers modern storage and memory capabilities with PCIe 5.0 NVMe support, DDR5 memory up to 128GB, and dual M.2 slots for flexible drive configurations. Built-in Wi-Fi 6 and 2.5GbE LAN provide robust networking, whilst RAID support on SATA drives enables redundancy for business-critical storage.
With dual 4K video outputs via HDMI 2.1 and DisplayPort 2.1, it supports multi-monitor setups suitable for professional workflows. The motherboard includes comprehensive USB 3.2 connectivity and comes with a 36-month manufacturer warranty, providing confidence in long-term deployment.
Specifications
| Manufacturer | Gigabyte |
|---|---|
| Model | B860M EAGLE WIFI6 1.0 |
| Form Factor | Micro-ATX |
| Chipset | Intel B860 Express |
| CPU Socket | LGA1851 |
| CPU Support | Intel Core Ultra Processors |
| Memory Type | DDR5 |
| Memory Sockets | 2 x DIMM |
| Maximum Memory | 128GB (64GB per DIMM) |
| Memory Speeds | DDR5 5600 to 9066 MT/s (with overclocking support) |
| Memory Features | XMP support, ECC Un-buffered and non-ECC Un-buffered DIMM support |
| Memory Architecture | Dual channel |
| Graphics Output | 1 x HDMI 2.1 (4096x2160@60Hz), 1 x DisplayPort 2.1 (3840x2160@144Hz) |
| Integrated Graphics | Intel HD Graphics (CPU dependent) |
| PCIe Slot 1 | 1 x PCI Express x16 (PCIe 5.0, from CPU) |
| PCIe Slot 2 | 1 x PCI Express x16 (PCIe 4.0 x4, from Chipset) |
| M.2 Slot 1 | 1 x Socket 3 M.2 (Type 2280, PCIe 5.0 x4/x2, from CPU) |
| M.2 Slot 2 | 1 x Socket 3 M.2 (Type 2280, PCIe 4.0 x4/x2, from Chipset) |
| SATA Connectors | 4 x SATA 6Gb/s |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 (SATA) |
| LAN Chipset | Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) |
| Wi-Fi Module | Realtek Wi-Fi 6 (802.11ax) RTL8851BE |
| USB 3.2 Gen 1 Ports | 5 x USB 3.2 Gen 1 (3 rear panel, 2 internal header) |
| USB Type-C Ports | 1 x USB Type-C (USB 3.2 Gen 1, internal header) |
| USB 2.0 Ports | 7 x USB 2.0/1.1 (3 rear panel, 4 internal headers) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with the B860M EAGLE WIFI6?
This motherboard supports Intel Core Ultra processors with LGA1851 socket. For the complete list of compatible CPUs, refer to Gigabyte's official CPU support list on their website.
Can I use DDR4 memory with this motherboard?
No, the B860M EAGLE WIFI6 supports DDR5 memory only. It has 2 x DDR5 DIMM sockets supporting up to 128GB.
Does this motherboard support PCIe 5.0 NVMe drives?
Yes. The primary M.2 slot (M2A_CPU) supports PCIe 5.0 NVMe drives. The secondary M.2 slot (M2P_SB) supports PCIe 4.0.
What are the maximum 4K display configurations?
This motherboard supports dual 4K displays via HDMI 2.1 (up to 4096x2160@60Hz) and DisplayPort 2.1 (up to 3840x2160@144Hz) simultaneously.
Is Wi-Fi 6 included, or is it optional?
Wi-Fi 6 (Realtek RTL8851BE) is built-in as standard. It provides 802.11ax wireless connectivity alongside the 2.5GbE wired LAN.
Can I use RAID with this motherboard?
Yes, the motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 configurations for SATA storage devices.
Does the B860M EAGLE WIFI6 support ECC memory?
Yes, the motherboard supports ECC Un-buffered DIMM memory (1Rx8/2Rx8), operating in non-ECC mode. Compatibility depends on CPU and memory configuration—check Gigabyte's Memory Support List.
What is the warranty period?
The Gigabyte B860M EAGLE WIFI6 includes a 36-month manufacturer warranty.
