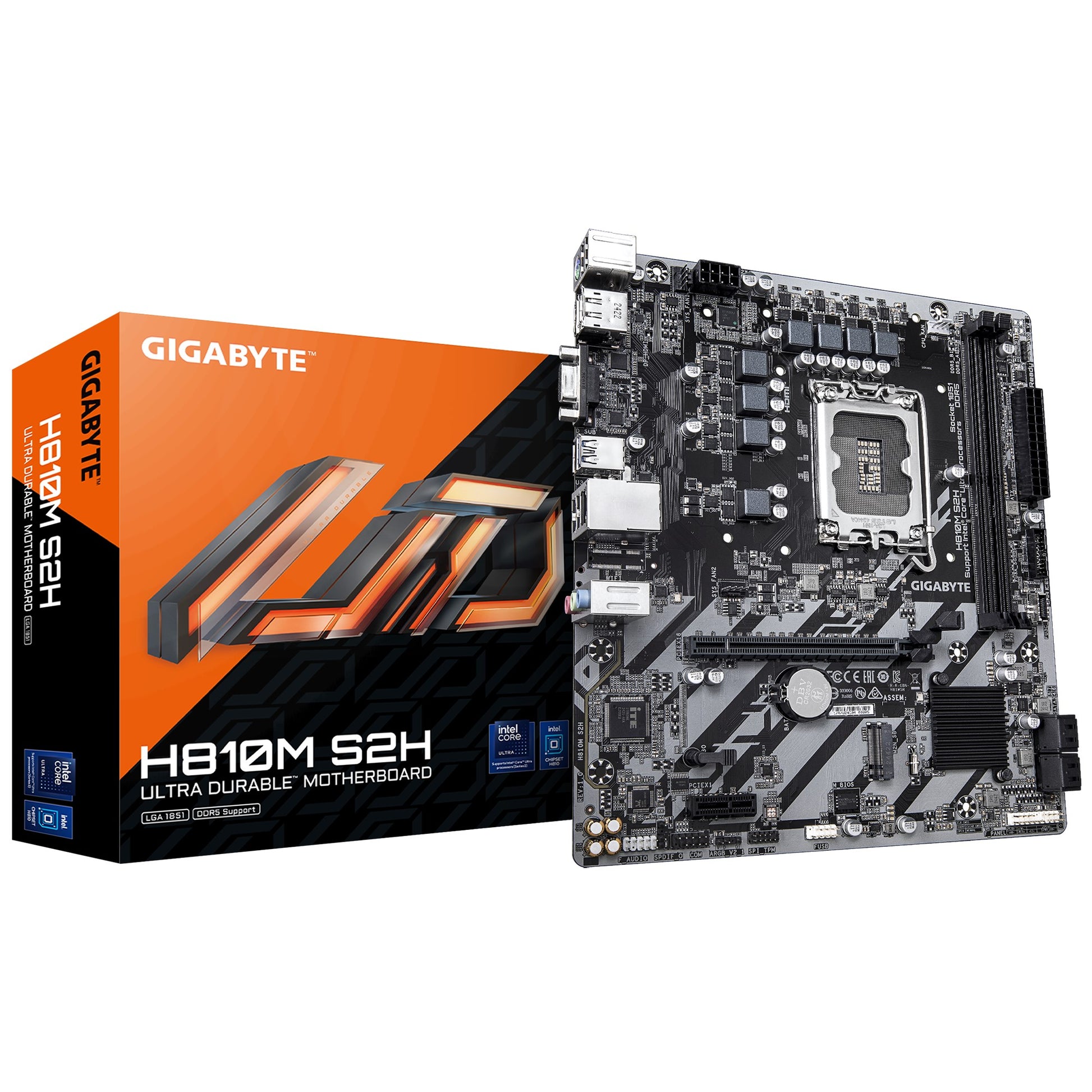

Gigabyte H810M S2H Intel LGA 1851 Micro-ATX Motherboard
Gigabyte H810M S2H Intel LGA 1851 Micro-ATX Motherboard
SKU:MBG-H810MS2H
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-H810MS2H |
| Availability | In Stock |
Overview
- The Gigabyte H810M S2H is a Micro-ATX motherboard purpose-built for Intel Core Ultra processors, delivering enterprise-grade reliability in a space-efficient form factor. With support for up to 128 GB of DDR5 memory and the H810 Express chipset, it provides the performance and capacity needed for demanding business applications and workstation environments.
This motherboard offers comprehensive connectivity through multiple USB 3.2 Gen 1 ports, SATA storage interfaces, and an M.2 connector, enabling flexible system configuration. The integrated Intel HD Graphics provides multiple display outputs—HDMI 2.1, DisplayPort 2.1, and D-Sub—supporting resolutions up to 4K, making it suitable for multi-monitor setups.
Designed for professionals and organisations requiring stable, feature-rich platforms, the H810M S2H combines proven Gigabyte build quality with modern specifications. Its Micro-ATX footprint makes it ideal for compact server installations and workstation builds where space efficiency is important, whilst maintaining the expandability and performance characteristics needed for business-critical applications.
Specifications
| socket | Intel LGA 1851 |
|---|---|
| chipset | Intel H810 Express |
| cpu_support | Intel Core Ultra processors |
| form_factor | Micro-ATX (244 mm x 225 mm) |
| memory_slots | 2 x DDR5 DIMM sockets |
| memory_capacity | Up to 128 GB |
| memory_speed | DDR5 6400/5600 MT/s |
| memory_architecture | Dual-channel |
| pcie_slots | 1 x PCIe x16, 1 x PCIe x1 (PCIe 3.0) |
| storage_connectors | 1 x M.2 Socket 3, 4 x SATA 6Gb/s |
| graphics | Integrated Intel HD Graphics |
| video_outputs | 1 x HDMI 2.1 (up to 4096x2160@60Hz), 1 x DisplayPort 2.1 (up to 3840x2160@60Hz), 1 x D-Sub (up to 1920x1200@60Hz) |
| usb_rear_panel | 1 x USB 3.2 Type-C Gen 1, 3 x USB 3.2 Gen 1, 2 x USB 2.0/1.1 |
| usb_headers | 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers (supports 2+4 additional ports) |
| power_connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V |
| fan_headers | 1 x CPU fan header, 3 x system fan headers |
| led_headers | 2 x addressable LED strip headers, 1 x RGB LED strip header |
| additional_headers | 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x TPM header, 1 x serial port header |
| bios_features | 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper |
| warranty | 36 months |
Key Features
Ideal For
FAQs
What Intel processors are compatible with the Gigabyte H810M S2H?
The H810M S2H supports Intel Core Ultra processors via the LGA 1851 socket. Check the motherboard's official compatibility list for your specific processor model.
What is the maximum memory capacity supported?
The motherboard supports up to 128 GB of DDR5 memory across 2 DIMM sockets, with each socket supporting up to 64 GB single DIMM modules at speeds of 6400 or 5600 MT/s.
Is this motherboard suitable for server environments?
Yes. The H810M S2H's Micro-ATX form factor, H810 Express chipset, and comprehensive connectivity make it suitable for server and data centre deployments requiring Intel Core Ultra processor support.
What storage options are available?
The motherboard provides 1 x M.2 Socket 3 connector and 4 x SATA 6Gb/s connectors, supporting modern NVMe drives and traditional SATA storage devices.
Can I use multiple monitors with this motherboard?
Yes. The integrated Intel HD Graphics supports three simultaneous displays via HDMI 2.1, DisplayPort 2.1, and D-Sub connectors, each capable of different resolutions up to 4K.
What warranty is included?
The Gigabyte H810M S2H comes with a 36-month warranty covering manufacturing defects and hardware failures.
Is the H810M S2H compatible with standard ATX power supplies?
Yes. The motherboard uses standard 24-pin ATX and 8-pin ATX 12V power connectors, compatible with any standard ATX power supply.
