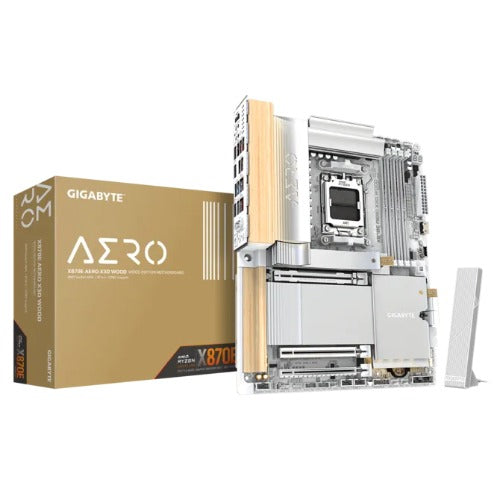

Gigabyte X870E AERO X3D WOOD AM5 DDR5 ATX Motherboard
Gigabyte X870E AERO X3D WOOD AM5 DDR5 ATX Motherboard
SKU:MBG-X870EAEROX3DWOOD
The Gigabyte X870E AERO X3D WOOD is an AMD Socket AM5 motherboard built for high-performance computing. Featuring DDR5 memory support up to 256GB, dual 5GbE connectivity, Wi-Fi 7, USB4, and PCIe 5.0, it delivers exceptional speed and expansion for demanding workloads.
Regular price
$727.38 AUD
Regular price
Sale price
$727.38 AUD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Motherboards |
| SKU | MBG-X870EAEROX3DWOOD |
| Availability | Out of Stock |
Gigabyte X870E AERO X3D WOOD AM5 DDR5 ATX Motherboard$727.38
$727.38
Overview
- The Gigabyte X870E AERO X3D WOOD is a flagship ATX motherboard built on AMD's latest X870E chipset, delivering cutting-edge performance and connectivity for demanding computing tasks. Designed for users who require maximum speed and expandability, it combines DDR5 memory support up to 256GB with four M.2 NVMe slots offering both PCIe 5.0 and PCIe 4.0 compatibility.
With dual 5GbE LAN ports and Wi-Fi 7 connectivity, the AERO X3D WOOD ensures fast network performance whether wired or wireless. The motherboard includes two USB4 Type-C ports for thunderbolt-class data transfers, alongside comprehensive USB 3.2 Gen 2 ports. This combination makes it ideal for professionals handling large file transfers, video content, or network-dependent workflows.
The board supports the full range of AMD Ryzen 9000, 8000, and 7000 series processors, giving users flexibility in CPU selection and upgrade paths. Backed by a 36-month warranty, it represents a solid investment for workstations, creative studios, and high-performance systems.
Specifications
| CPU Socket | AMD Socket AM5 |
|---|---|
| Supported Processors | AMD Ryzen 9000, 8000, and 7000 series |
| Chipset | AMD X870E |
| Form Factor | ATX (30.5cm x 24.4cm) |
| Memory Type | DDR5 DIMM |
| Memory Sockets | 4 x DDR5 slots |
| Maximum Memory | 256GB (64GB single DIMM capacity) |
| M.2 Slots | 4 x M.2 connectors |
| M.2 Slot 1 | M2A_CPU, Socket 3, M key, PCIe 5.0, supports 2580/2280 SSDs |
| M.2 Slot 2 | M2B_CPU, Socket 3, M key, PCIe 5.0, supports 22110/2280 SSDs |
| M.2 Slots 3-4 | M2C_SB and M2D_SB, Socket 3, M key, PCIe 4.0 x4/x2, supports 22110/2280 SSDs |
| SATA Connectors | 4 x SATA 6Gb/s |
| LAN Ports | 2 x Realtek 5GbE (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Wi-Fi Module | Wi-Fi 7 (MT7927) |
| Audio Codec | Realtek ALC1220 |
| USB4 Ports | 2 x USB4 Type-C (rear panel) |
| USB 3.2 Gen 2 Type-A | 4 x ports (rear panel) |
| USB 3.2 Gen 2 Type-C | 2 x ports (1 rear, 1 internal header) |
| USB 3.2 Gen 1 Type-A | 3 x ports (rear panel) |
| USB 3.2 Gen 1 (Internal) | 4 x ports via internal header |
| USB 2.0/1.1 | 4 x ports via internal headers |
| PCI Express Slots | 3 x (x16 CPU, x16 CPU, x4 Chipset) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 36 months |
Key Features
AMD Socket AM5 support for Ryzen 9000, 8000, and 7000 series processors
DDR5 memory with up to 256GB capacity (4 x DIMM sockets)
Dual Realtek 5GbE LAN for high-speed networking
Wi-Fi 7 (MT7927) and 2 x USB4 ports for ultra-fast connectivity
4 x M.2 NVMe slots supporting PCIe 5.0 and PCIe 4.0
Premium Realtek ALC1220 audio codec
Comprehensive USB 3.2 Gen 2 and USB 2.0 connectivity
ATX form factor with extensive expansion slots
Ideal For
High-performance gaming and overclocking systems
Content creation and video editing workstations
Data-intensive applications requiring fast storage and networking
Server and workstation builds for professional environments
Enthusiasts and IT professionals seeking next-generation connectivity
FAQs
Which AMD Ryzen processors are compatible with this motherboard?
The Gigabyte X870E AERO X3D WOOD supports AMD Ryzen 9000, 8000, and 7000 series processors via Socket AM5.
What is the maximum memory capacity supported?
The motherboard supports up to 256GB of DDR5 memory across 4 DIMM sockets (64GB per DIMM).
Does this motherboard support NVMe SSDs?
Yes, it includes 4 x M.2 slots supporting NVMe SSDs. Two slots support PCIe 5.0, and two support PCIe 4.0.
What networking options are available?
The board features dual 5GbE LAN ports and Wi-Fi 7 (MT7927) for both wired and wireless connectivity.
How many USB ports does the motherboard have?
It includes 2 x USB4, 4 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-A, 4 x USB 3.2 Gen 1 (internal), and 4 x USB 2.0/1.1 (internal).
Is the motherboard compatible with Windows 11?
Yes, the X870E AERO X3D WOOD supports Windows 11 64-bit operating system.
What warranty is included?
The motherboard comes with a 36-month warranty.
