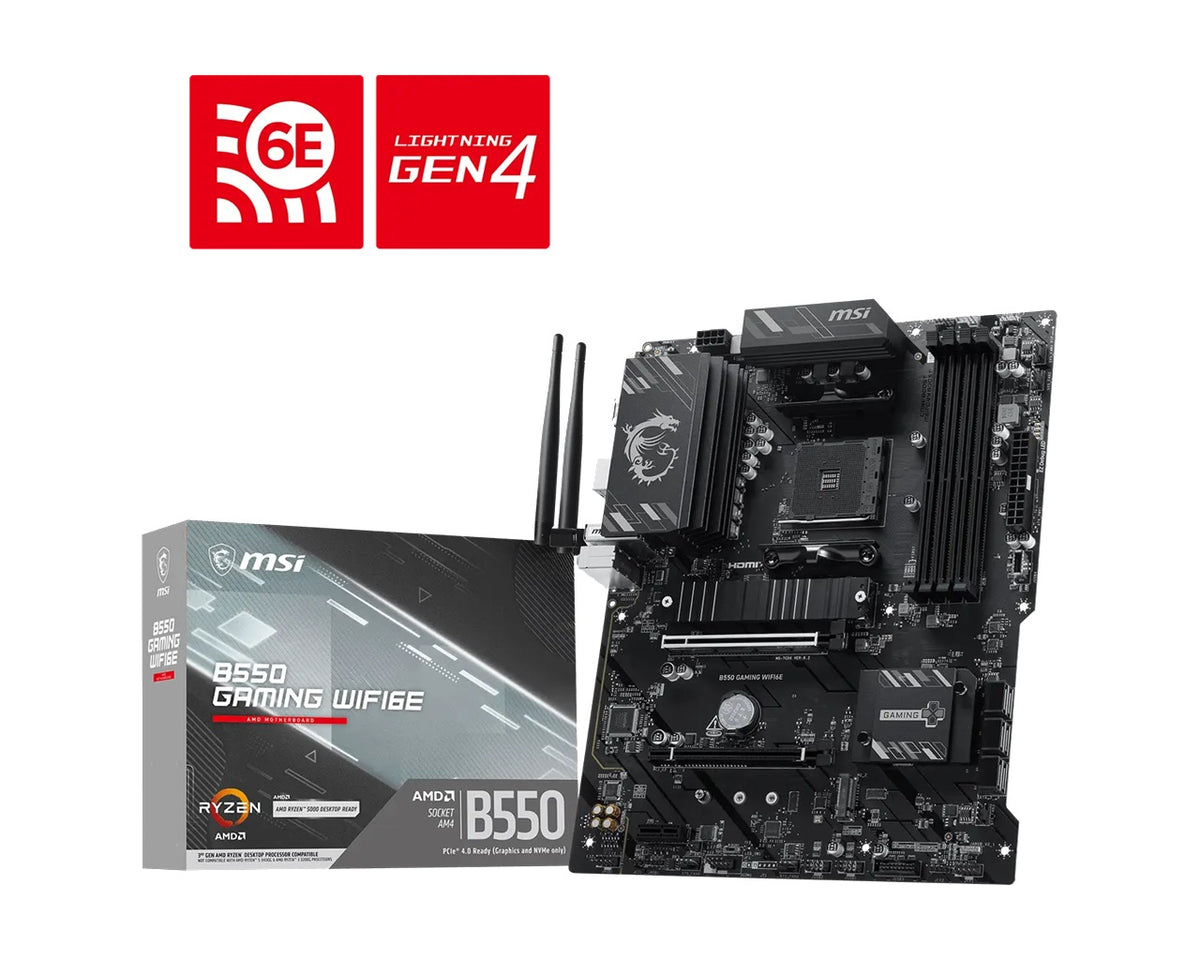

MSI B550 GAMING WIFI6E AMD AM4 Motherboard
MSI B550 GAMING WIFI6E AMD AM4 Motherboard
SKU:MBM-B550-GAMING-WIFI6E
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B550-GAMING-WIFI6E |
| Availability | In Stock |
Overview
- The MSI B550 GAMING WIFI6E is a feature-rich ATX motherboard built for AMD Ryzen 5000, 5000G, 4000G, and 3000 Series processors. It combines modern connectivity standards including Wi-Fi 6E, PCIe 4.0, and 10Gbps USB with robust audio and storage capabilities. The board supports up to 128GB DDR4 memory with aggressive overclocking profiles, making it ideal for gaming, content creation, and high-performance computing builds.
With dual M.2 slots offering both PCIe 4.0 and PCIe 3.0 options, extensive SATA support, and comprehensive USB coverage including 10Gbps ports, this motherboard provides the connectivity depth required for modern multi-device systems. The inclusion of Wi-Fi 6E, Bluetooth 5.3, and 1G LAN ensures reliable wired and wireless networking. 7.1-channel audio with Realtek ALC897 codec supports premium audio experiences for gaming and multimedia applications.
Specifications
| Chipset | AMD B550 |
|---|---|
| Socket | AM4 |
| CPU Support | AMD Ryzen 5000, 5000G, 4000G, and 3000 Series processors |
| Memory Slots | 4x DDR4 DIMM |
| Maximum Memory Capacity | 128GB |
| Memory Speed Support | DDR4 2667/2800/2933/3000/3066/3200/3466/3600/3733/3866/4000/4133/4266/4400/4533/4600/4733/4800/4866+ MHz by A-XMP |
| Max Overclocking (1DPC 1R) | DDR4 4800+ MHz |
| Max Overclocking (1DPC 2R) | DDR4 3866+ MHz |
| Max Overclocking (2DPC 1R) | DDR4 4000+ MHz |
| Max Overclocking (2DPC 2R) | DDR4 3600+ MHz |
| Memory Architecture | Dual channel |
| PCI-E x16 Slots | 2x PCI-E x16 (Gen 4.0 x16 from CPU, Gen 3.0 x4 from Chipset) |
| PCI-E x1 Slots | 1x PCI-E x1 (Gen 3.0 from Chipset) |
| M.2 Slots | 2x M.2 |
| M.2_1 Specifications | PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices |
| M.2_2 Specifications | PCIe 3.0 x4, supports 2280/2260/2242 devices |
| SATA Ports | 6x SATA 6G |
| Video Output (HDMI) | 1x HDMI 1.4, maximum 4K 30Hz |
| Video Output (DisplayPort) | 1x DisplayPort 1.2, maximum 4K 60Hz |
| Rear USB 2.0 | 4x USB 2.0 |
| Front USB 2.0 | 4x USB 2.0 |
| Rear USB 5Gbps Type-A | 2x USB 5Gbps Type-A |
| Front USB 5Gbps Type-A | 2x USB 5Gbps Type-A |
| Front USB 5Gbps Type-C | 1x USB 5Gbps Type-C |
| Rear USB 10Gbps Type-A | 1x USB 10Gbps Type-A |
| Rear USB 10Gbps Type-C | 1x USB 10Gbps Type-C |
| LAN | Realtek 8111H 1G LAN |
| Wireless | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), Dual-band 1T1R, MU-MIMO RX, 2.4GHz/5GHz/6GHz |
| Bluetooth | Bluetooth 5.3 |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1-Channel High Definition Audio |
| Power Connectors | 1x ATX 24-pin, 1x CPU 8-pin |
| Fan Headers | 1x CPU Fan, 1x Combo Fan (Pump/Sys), 6x System Fan |
| RGB Connectors | 2x Addressable V2 RGB LED connectors, 1x RGB LED connector |
| Internal I/O | TPM 2.0 header, Chassis Intrusion header, Front Audio header, Com Port header |
| Debug LEDs | 4x EZ Debug LED |
| Form Factor | ATX |
| PCB Dimensions | 243.84mm x 304.8mm |
| Operating System Support | Windows 11 64-bit |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors are compatible with the MSI B550 GAMING WIFI6E?
The B550 GAMING WIFI6E supports AMD Ryzen 5000 Series, 5000G-Series, 4000G-Series, and 3000 Series desktop processors on Socket AM4. Note: The Ryzen 5 3400G and Ryzen 3 3200G are not compatible.
What is the maximum DDR4 memory speed this motherboard supports?
The B550 GAMING WIFI6E supports DDR4 speeds up to 4866+ MHz via A-XMP overclocking profiles. Maximum memory capacity is 128GB across 4 DIMM slots.
Does the B550 GAMING WIFI6E have PCIe 4.0 support?
Yes. The first PCI-E x16 slot supports PCIe 4.0 x16 directly from the CPU. The second x16 slot and x1 slot use PCIe 3.0 from the chipset.
What storage options are available on this motherboard?
The board includes 2x M.2 slots (one PCIe 4.0 x4, one PCIe 3.0 x4) and 6x SATA 6G ports for a total of 8 storage connections.
Does the MSI B550 GAMING WIFI6E include Wi-Fi 6E?
Yes. The board features Wi-Fi 6E with dual-band 1T1R capability, MU-MIMO RX, support for 2.4GHz, 5GHz, and 6GHz frequency bands, plus Bluetooth 5.3.
What USB speeds are available on the rear panel?
The rear panel includes 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, and 1x USB 10Gbps Type-C for high-speed data transfer.
What audio capabilities does this motherboard have?
The B550 GAMING WIFI6E features a Realtek ALC897 codec with 7.1-channel high-definition audio support for immersive sound in gaming and multimedia applications.
Is the Wi-Fi module pre-installed?
Yes. The Wi-Fi 6E module is pre-installed in the M.2 Key-E slot, so no additional setup is required.
