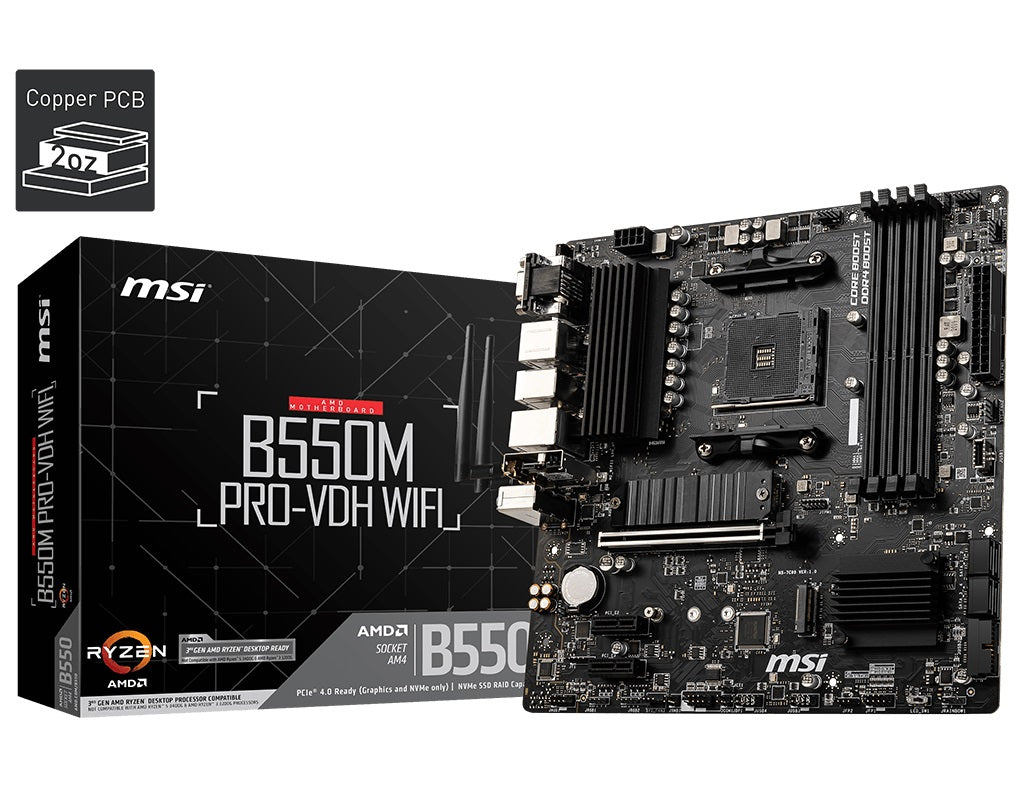

MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
MSI B550M PRO-VDH WIFI Micro-ATX Motherboard
SKU:MBM-B550M-PRO-VDHWF
The MSI B550M PRO-VDH WIFI is a micro-ATX motherboard supporting 3rd Gen AMD Ryzen processors and future generations with BIOS update. Featuring PCIe 4.0 support, dual M.2 slots, Wi-Fi AC, and up to 128GB DDR4 memory, it delivers stable performance for business workstations and productivity builds.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B550M-PRO-VDHWF |
| Availability | In Stock |
Overview
- The MSI B550M PRO-VDH WIFI is a micro-ATX motherboard built on the AMD B550 chipset, providing robust support for current and future AMD Ryzen processors. Its compact form factor makes it ideal for space-constrained environments while maintaining professional-grade features.
With PCIe 4.0 connectivity, dual M.2 slots, and extensive USB ports, this motherboard supports modern storage and peripheral requirements. Built-in Wi-Fi AC and Bluetooth 4.2 provide flexible connectivity options without requiring additional cards.
The PRO series design emphasises stable functionality, high-quality assembly, and reduced troubleshooting, making it suitable for business environments where uptime and reliability are priorities. Support for up to 128GB DDR4 memory enables multitasking and productivity applications.
Specifications
| Manufacturer | MSI |
|---|---|
| Model | B550M PRO-VDH WIFI |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| CPU Socket | AMD Socket AM4 |
| CPU Support | 3rd Gen AMD Ryzen and future AMD Ryzen processors with BIOS update |
| Memory Slots | 4 DIMMs |
| Memory Support | DDR4-4400 MHz (OC) |
| Maximum Memory | 128GB |
| PCIe Slots | 1x PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1 |
| M.2 Slots | 1x M.2 Gen4 x4, 1x M.2 Gen3 x4 |
| SATA Ports | 4x SATA 6Gb/s |
| USB 3.2 Ports | 7x USB 3.2 Gen 1 5Gbps (6 Type-A, 1 Type-C) |
| USB 2.0 Ports | 6x USB 2.0 |
| Network | Realtek RTL8111HN Gigabit LAN |
| Wireless | Wi-Fi AC, Bluetooth 4.2 |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost |
| Display Outputs | DisplayPort, HDMI, VGA (requires processor graphics) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors are compatible with the B550M PRO-VDH WIFI?
This motherboard supports 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update. Compatibility includes Ryzen 3000 series (Matisse) and newer generations. Check MSI's website or contact support for specific processor compatibility lists.
Does this motherboard support PCIe 4.0 storage?
Yes. The B550M PRO-VDH WIFI features one M.2 Gen4 x4 slot for NVMe SSDs with full PCIe 4.0 speeds, plus one M.2 Gen3 x4 slot for PCIe 3.0 devices.
What is the maximum memory capacity supported?
The motherboard supports up to 128GB of DDR4 memory across 4 DIMM slots, with overclocking capability up to DDR4-4400 MHz.
Is Wi-Fi included, or do I need to add a card?
Wi-Fi AC and Bluetooth 4.2 are built in. No additional wireless card is required.
What warranty does this motherboard come with?
The MSI B550M PRO-VDH WIFI includes a 36-month manufacturer warranty, covering hardware defects and failures.
Can I use this motherboard in a small form factor case?
Yes. The micro-ATX form factor is designed for compact builds and fits in most standard micro-ATX and larger cases.
Does it support high-speed storage options?
Yes. With dual M.2 slots (one Gen4, one Gen3) and four SATA ports, it supports multiple storage configurations including fast NVMe SSDs and traditional drives.
