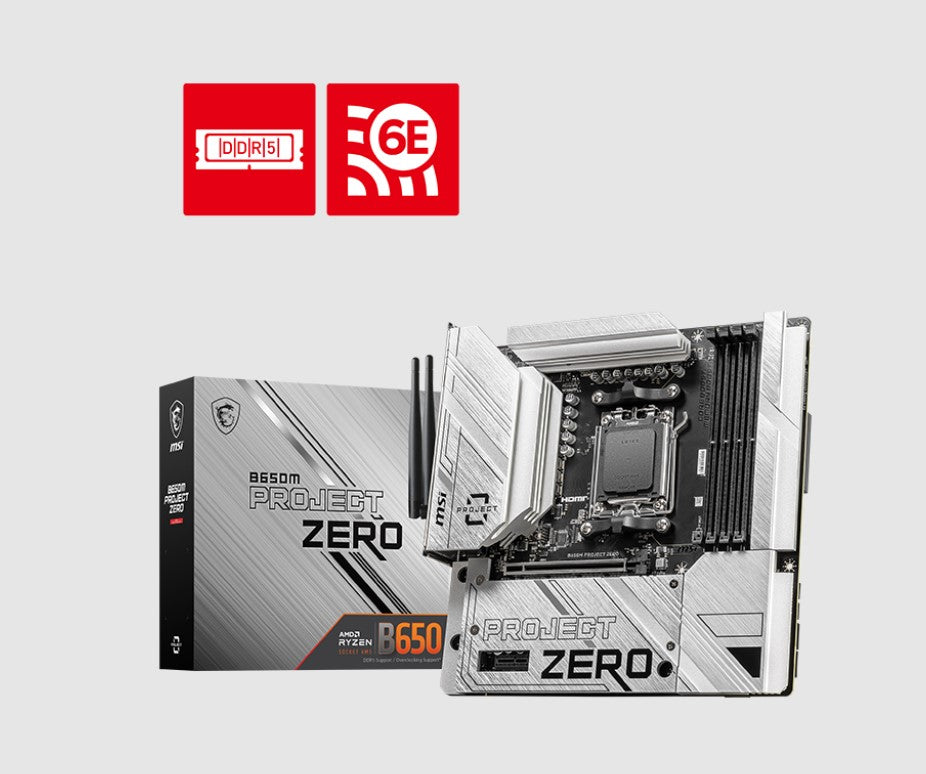

MSI B650M PROJECT ZERO AMD Motherboard
MSI B650M PROJECT ZERO AMD Motherboard
SKU:MBM-B650MPROJECTZERO
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B650MPROJECTZERO |
| Availability | In Stock |
Overview
- The MSI B650M PROJECT ZERO is a micro-ATX motherboard designed for builders and IT professionals deploying AMD Ryzen 7000 Series systems. The board supports the latest DDR5 memory standard with four DIMM slots and speeds up to 6400MHz, delivering the performance foundation for modern multi-threaded workloads.
With dual PCIe 4.0 M.2 slots and six SATA 6G ports, storage connectivity is comprehensive. The board includes 9 USB 3.2 ports across multiple generations, including high-speed Type-C connectors for peripherals and data transfer. Video output options via HDMI 2.1 and DisplayPort 1.4 support resolutions up to 8K 60Hz on compatible CPUs.
The micro-ATX form factor makes it suitable for compact builds without sacrificing expansion options. PCIe slots provide flexibility for graphics cards and expansion cards, whilst the B650 chipset ensures full feature support for Ryzen 7000 systems. This is a solid choice for businesses and builders seeking a balanced, capable platform for gaming, content creation, or professional workstations.
Specifications
| Brand | MSI |
|---|---|
| Model | B650M PROJECT ZERO |
| Form Factor | Micro-ATX (mATX) |
| PCB Dimensions | 243.84mm x 243.84mm |
| Chipset | AMD B650 |
| CPU Socket | Socket AM5 |
| CPU Support | AMD Ryzen 7000 Series Desktop Processors |
| Memory Type | DDR5 |
| Memory Slots | 4x DIMM |
| Maximum Memory Capacity | 128GB |
| Memory Speed Support | DDR5 6400+ / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 MHz (JEDEC) |
| Storage - M.2 Slots | 2x M.2 (supports 2280/2260 devices) |
| M.2_1 Specification | PCIe 4.0 x4 (from CPU) |
| M.2_2 Specification | PCIe 4.0 x4 (from CPU) |
| SATA Ports | 6x SATA 6G |
| PCI-E Expansion Slots | 3 total slots |
| PCI_E1 | PCIe 4.0 x16 (supports x16/x4 from CPU) |
| PCI_E2 | PCIe 3.0 x1 (from Chipset) |
| PCI_E3 | PCIe 4.0 x4 (from Chipset) |
| Video Outputs | 1x HDMI 2.1, 1x DisplayPort 1.4 |
| HDMI Specification | HDMI 2.1 with HDR, maximum 4K 60Hz |
| DisplayPort Specification | DP 1.4, maximum 8K 60Hz |
| USB 2.0 Ports | 4x (Front connectors) |
| USB 3.2 Gen1 Type-A | 4x (Rear) + 2x (Front) |
| USB 3.2 Gen2 Type-A | 3x (Rear) |
| USB 3.2 Gen2 Type-C | 1x (Front) + 1x Gen2x2 (Rear) |
| Total USB 3.2 Ports | 9x |
| Warranty Period | 36 months |
Key Features
Ideal For
FAQs
What AMD Ryzen processors are compatible with the MSI B650M PROJECT ZERO?
This motherboard supports AMD Ryzen 7000 Series Desktop Processors using Socket AM5. Compatibility includes Ryzen 5, 7, and 9 processors in the 7000 series lineup.
What is the maximum memory capacity supported?
The motherboard supports up to 128GB of DDR5 memory across four DIMM slots, with speeds ranging from DDR5-4800 JEDEC standard up to DDR5-6400+ MHz overclocked speeds.
Does this motherboard support NVMe SSD storage?
Yes, it includes two M.2 slots supporting PCIe 4.0 x4 NVMe SSDs in 2280 and 2260 form factors, plus six SATA 6G ports for traditional storage devices.
What is the form factor and is it suitable for small builds?
The B650M PROJECT ZERO is micro-ATX (243.84mm x 243.84mm), making it ideal for compact and small form factor PC builds whilst retaining good expansion options.
What video outputs does this motherboard have?
The board includes HDMI 2.1 (supporting up to 4K 60Hz with HDR) and DisplayPort 1.4 (supporting up to 8K 60Hz). Both outputs require the CPU to have integrated graphics enabled.
How many USB ports are available?
The motherboard provides 9 USB 3.2 ports total, including 4x Gen1 Type-A (rear), 2x Gen1 Type-A (front), 3x Gen2 Type-A (rear), 1x Gen2 Type-C (front), and 1x Gen2x2 Type-C (rear), plus 4x USB 2.0 front connectors.
Is this motherboard suitable for gaming and content creation?
Yes, the B650M PROJECT ZERO is well-suited for gaming, streaming, and content creation workloads. It supports fast DDR5 memory, dual high-speed NVMe storage, and has robust power delivery for Ryzen 7000 processors.
What is the warranty period?
The MSI B650M PROJECT ZERO comes with a 36-month manufacturer's warranty.
