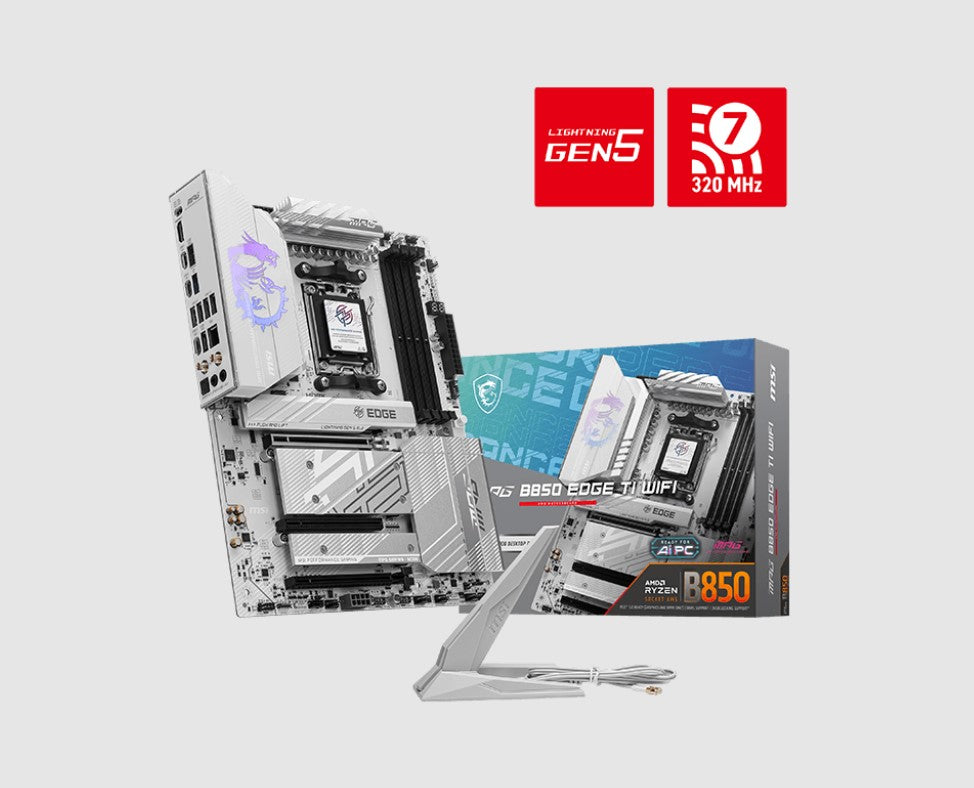

MSI B850 EDGE TI WIFI Motherboard
MSI B850 EDGE TI WIFI Motherboard
SKU:MBM-B850EDGETIWIFI
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B850EDGETIWIFI |
| Availability | In Stock |
Overview
- The MSI B850 EDGE TI WIFI is a flagship ATX motherboard built on AMD's B850 chipset, offering comprehensive support for Ryzen 9000, 8000, and 7000 series processors. It combines cutting-edge connectivity standards with robust expansion capabilities, making it ideal for professionals and enthusiasts who demand performance.
Key strengths include dual PCIe 5.0 M.2 slots for rapid NVMe access, Wi-Fi 7 for next-generation wireless speeds, and 5G Ethernet for wired connectivity. The board supports up to 256GB of DDR5 memory across four DIMM slots, enabling demanding multithreaded workloads.
The board features comprehensive I/O including multiple USB 10Gbps ports, a USB 20Gbps Type-C connector, and 8K HDMI video output. Its ATX form factor provides ample space for air and liquid cooling solutions, whilst RAID support on M.2 drives offers data redundancy options.
With three years of manufacturer warranty and broad OS support for Windows 11 64-bit, this motherboard is engineered for reliability in professional and high-end consumer environments.
Specifications
| Chipset | AMD B850 |
|---|---|
| Socket | AM5 |
| Supported Processors | AMD Ryzen 9000/8000/7000 Series Desktop |
| Form Factor | ATX (304.8mm x 243.84mm) |
| Memory Slots | 4x DDR5 UDIMM |
| Maximum Memory | 256GB DDR5 |
| PCI-E Slots | 3x (1x Gen 5.0 x16, 1x Gen 3.0 x1, 1x Gen 4.0 x4) |
| M.2 Slots | 4x NVMe |
| M.2_1 | PCIe 5.0 x4 from CPU, supports 22110/2280 |
| M.2_2 | PCIe 5.0 x4 from CPU, supports 2280/2260 |
| M.2_3 | PCIe 4.0 x2 from Chipset, supports 2280/2260 |
| M.2_4 | PCIe 4.0 x4 from Chipset, supports 2280/2260 |
| SATA Ports | 4x SATA 6G |
| RAID Support | RAID 0 and RAID 1 for M.2 NVMe |
| Video Output | 1x HDMI 2.1 FRL (8K 60Hz) |
| Ethernet | Realtek 8126-CG 5G LAN |
| Wireless | Wi-Fi 7, Bluetooth 5.4, Multi-Link Operation (MLO), 4KQAM |
| USB Rear | 4x USB 2.0, 1x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 3x USB 10Gbps Type-C |
| USB Front Headers | 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C |
| Operating System | Windows 11 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors does the MSI B850 EDGE TI WIFI support?
This motherboard supports AMD Ryzen 9000, 8000, and 7000 series desktop processors via the AM5 socket. It is fully compatible with current and next-generation Ryzen CPUs.
How much RAM can this motherboard support?
The board has 4 DDR5 DIMM slots and supports a maximum of 256GB of DDR5 memory, providing substantial headroom for memory-intensive workloads.
What are the differences between the M.2 slots?
M.2_1 and M.2_2 connect directly to the CPU and support PCIe 5.0 x4 on newer processors. M.2_3 supports PCIe 4.0 x2, and M.2_4 supports PCIe 4.0 x4, both connected to the chipset. Device compatibility varies by form factor (22110, 2280, 2260).
Does the board support RAID configurations?
Yes, RAID 0 and RAID 1 are supported for M.2 NVMe storage devices, allowing for data striping or mirroring to improve performance or redundancy.
What wireless and networking features are included?
The board includes Wi-Fi 7, Bluetooth 5.4, and a 5G Ethernet connection via Realtek 8126-CG controller, plus multiple USB 10Gbps and USB 20Gbps ports for high-speed wired connectivity.
What is the warranty period?
The MSI B850 EDGE TI WIFI comes with a 3-year manufacturer warranty covering manufacturing defects.
Can I use this board for gaming and professional work?
Yes, the PCIe 5.0 support, fast DDR5 memory, and multiple NVMe slots make it suitable for high-end gaming, content creation, video editing, and professional computing.
