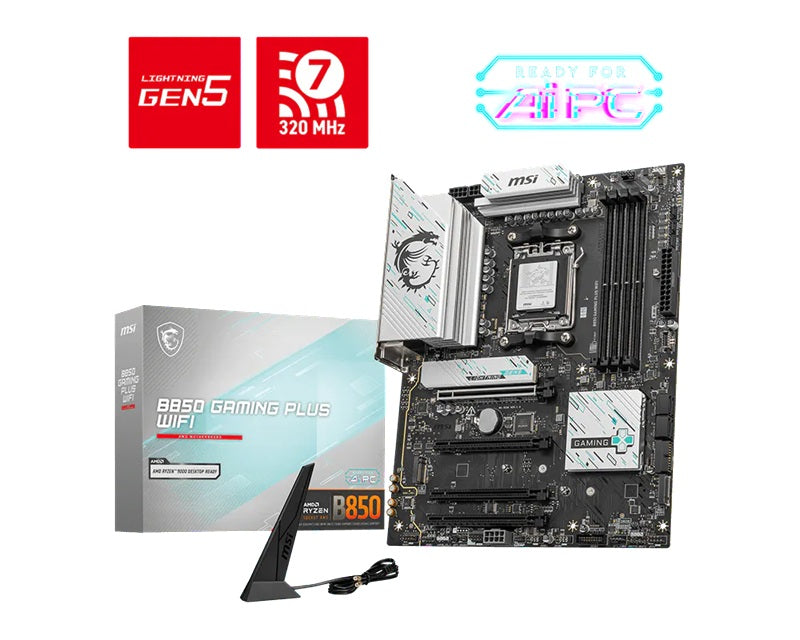

MSI B850 GAMING PLUS WIFI AM5 Motherboard
MSI B850 GAMING PLUS WIFI AM5 Motherboard
SKU:MBM-B850GAMINGPLUSWIFI
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B850GAMINGPLUSWIFI |
| Availability | In Stock |
Overview
- The MSI B850 GAMING PLUS WIFI is a feature-rich AM5 motherboard built for modern computing demands. It supports the latest AMD Ryzen 9000, 8000, and 7000 series processors, making it an ideal platform for high-performance gaming and professional workloads.
With PCIe 5.0 support, this motherboard future-proofs your investment and ensures compatibility with next-generation graphics cards and storage devices. The B850 chipset provides enhanced connectivity through Wi-Fi 7, Bluetooth 5.4, and 5Gbps LAN, eliminating bottlenecks in gaming and content creation workflows.
Memory support extends to DDR5 8200+ MT/s with overclocking headroom, whilst multiple M.2 slots—including one Gen5 slot—deliver exceptional storage speeds. The inclusion of USB 10Gbps ports ensures rapid file transfers and external device connectivity. 8-channel audio with Audio Boost rounds out the feature set, providing immersive sound quality for gaming and media work.
Specifications
| Brand | MSI |
|---|---|
| Model | B850 GAMING PLUS WIFI |
| Chipset | AMD B850 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000, 8000, 7000 Series |
| Memory Support | 4 DIMM slots, Dual Channel DDR5, up to 8200+ MT/s (OC) |
| PCIe Expansion | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
| Storage Connections | 1x M.2 Gen5 x4 (128Gbps), 1x M.2 Gen4 x4 (64Gbps), 1x M.2 Gen4 x2 (32Gbps), 4x SATA 6Gbps |
| LAN | Realtek 5Gbps |
| Wireless | Wi-Fi 7, Bluetooth 5.4 |
| USB Ports | 3x USB 10Gbps (1 Type-A, 2 Type-C), 6x USB 5Gbps (5 Type-A, 1 Type-C), 8x USB 2.0 |
| Audio | 8-channel (7.1) HD Audio with Audio Boost |
| Display Output | DisplayPort 1.2 HBR (4K@60Hz, requires processor graphics) |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors does the MSI B850 GAMING PLUS WIFI support?
This motherboard supports AMD Ryzen 9000, 8000, and 7000 series desktop processors with the AM5 socket.
What is the maximum memory speed supported?
The motherboard supports DDR5 memory up to 8200+ MT/s with overclocking. It features 4 DIMM slots for dual-channel configuration.
Does this motherboard support PCIe 5.0?
Yes. It includes 1x PCIe 5.0 x16 slot for next-generation graphics cards and 1x PCIe 4.0 x16 slot for backwards compatibility.
How many M.2 storage slots are available?
The motherboard has 3 M.2 slots: 1x Gen5 x4 (128Gbps), 1x Gen4 x4 (64Gbps), and 1x Gen4 x2 (32Gbps).
What wireless and wired networking options are included?
It features Wi-Fi 7 with Bluetooth 5.4, plus a Realtek 5Gbps LAN port for wired connectivity.
What USB connectivity is available?
The motherboard includes 3x USB 10Gbps ports (1 Type-A, 2 Type-C), 6x USB 5Gbps ports (5 Type-A, 1 Type-C), and 8x USB 2.0 ports.
Is warranty included?
Yes. The MSI B850 GAMING PLUS WIFI comes with a 3-year manufacturer's warranty.
