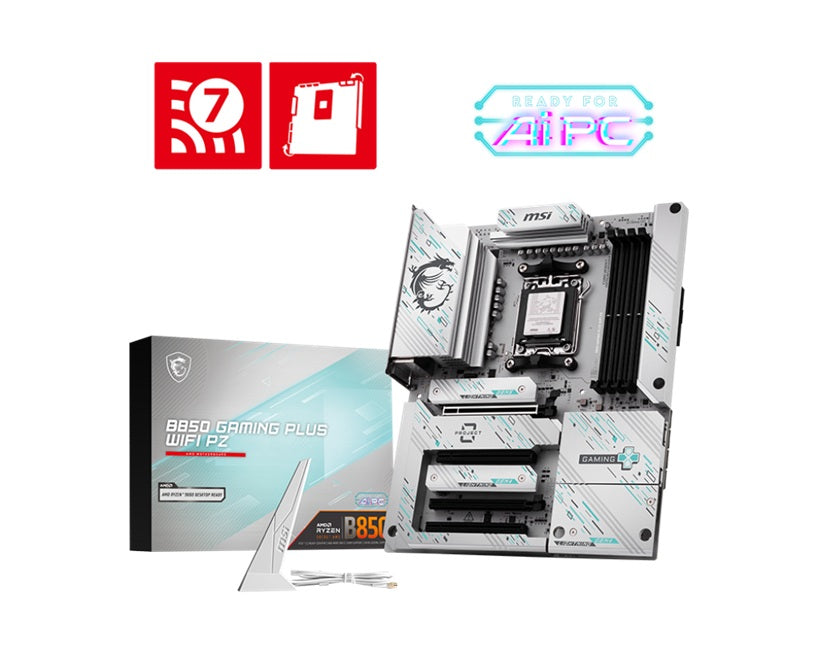

MSI B850 GAMING PLUS WIFI PZ AMD Ryzen Motherboard
MSI B850 GAMING PLUS WIFI PZ AMD Ryzen Motherboard
SKU:MBM-B850GAMINGPLUSWIFIPZ
The MSI B850 GAMING PLUS WIFI PZ is an AMD Socket AM5 motherboard designed for Ryzen 9000, 8000, and 7000 Series desktop systems. Featuring Wi-Fi 7, PCIe 5.0 support, DDR5 memory up to 256GB, and comprehensive storage connectivity, it delivers high-performance platform expansion for gaming and professional workstations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B850GAMINGPLUSWIFIPZ |
| Availability | Out of Stock |
Overview
- The MSI B850 GAMING PLUS WIFI PZ is a feature-rich AMD Socket AM5 motherboard built on the B850 chipset. It supports the latest AMD Ryzen 9000, 8000, and 7000 Series processors and delivers modern connectivity through Wi-Fi 7, Bluetooth 5.4, and 5G LAN. The board provides four PCIe x16 slots with mixed generational support (PCIe 5.0, 4.0, and 3.0) and three M.2 NVMe slots, accommodating contemporary storage expansion and high-bandwidth peripherals.
Memory expansion reaches 256GB across four DDR5 UDIMM slots, with support for speeds up to 8200+ MT/s (overclocked) and JEDEC compliance for stability. The integrated Realtek ALC897 audio codec provides 7.1-channel HD audio, while comprehensive USB connectivity includes legacy USB 2.0 ports, modern USB 5Gbps, and faster USB 10Gbps Type-A and Type-C options.
Built for both gaming and professional applications, the B850 GAMING PLUS WIFI PZ supports RAID configurations across SATA and NVMe storage, includes onboard RGB LED and fan headers for system customisation, and features TPM 2.0 support for security-focused deployments. The 36-month warranty provides long-term reliability assurance.
Specifications
| Chipset | AMD B850 |
|---|---|
| CPU Socket | AMD Socket AM5 |
| Supported Processors | AMD Ryzen 9000/8000/7000 Series Desktop Processors |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 4 |
| Maximum Memory Capacity | 256GB |
| Memory Speed Support | DDR5 8200-5600 MHz (OC) / 5600-4800 MHz (JEDEC) |
| Memory Dual Channel | Yes |
| CUDIMM Support | Yes (Clock Driver bypass mode only) |
| PCIe Slot 1 | PCIe 5.0 x16 (From CPU) |
| PCIe Slot 2 | PCIe 3.0 x1 (From Chipset) |
| PCIe Slot 3 | PCIe 4.0 x4 (From Chipset) |
| PCIe Slot 4 | PCIe 3.0 x1 (From Chipset) |
| Total PCIe x16 Slots | 4 |
| M.2 Slot 1 | PCIe 5.0 x4 (From CPU), supports 2280/2260 |
| M.2 Slot 2 | PCIe 4.0 x4 (From CPU), supports 2280/2260 |
| M.2 Slot 3 | PCIe 4.0 x2 (From Chipset), supports 2280/2260 |
| Total M.2 Slots | 3 |
| SATA Ports | 4x SATA 6G |
| RAID Support | RAID 0/1/10 (SATA); RAID 0/1/5 (NVMe, Ryzen 9000 Series only) |
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1-channel HD |
| LAN Controller | Realtek 8126VB |
| LAN Speed | 5Gbps |
| Wi-Fi Standard | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Wi-Fi Frequency Bands | 2.4GHz/5GHz/6GHz |
| Wi-Fi Max Speed | 5.8Gbps |
| Wi-Fi Features | MU-MIMO TX/RX, 320MHz bandwidth, 4KQAM, MLO |
| Wi-Fi Module | Pre-installed in M.2 Key-E slot |
| Bluetooth | Bluetooth 5.4 |
| USB 2.0 Rear | 4 |
| USB 2.0 Front | 4 |
| USB 5Gbps Type-A Rear | 1 |
| USB 5Gbps Type-A Front | 4 |
| USB 5Gbps Type-C Front | 1 |
| USB 10Gbps Type-A Rear | 1 |
| USB 10Gbps Type-C Rear | 2 |
| Power Connectors | 1x 24-pin ATX, 2x 8-pin CPU, 1x 8-pin PCIe |
| Fan Headers | 1x CPU fan, 1x Combo fan (pump/system), 4x system fans |
| Front Panel Connectors | 2x front panel headers, 1x front audio |
| RGB Headers | 3x Addressable V2 RGB LED, 1x RGB LED |
| Internal Connectors | TPM 2.0 pin header, chassis intrusion header, COM port |
| Display Output | 1x DisplayPort 1.2 (integrated graphics, 4K 60Hz max) |
| Warranty | 36 months |
| BIOS TPM Support | TPM 2.0 |
Key Features
Ideal For
FAQs
Which AMD Ryzen processors are compatible with the MSI B850 GAMING PLUS WIFI PZ?
The board supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors in Socket AM5. Memory speeds and PCIe generation support vary by processor series, so consult the Memory Compatibility List on MSI's support page for your specific CPU.
What is the maximum DDR5 memory speed supported?
The board supports DDR5 at JEDEC speeds from 5600-4800 MHz and overclocked speeds up to 8200+ MT/s depending on your processor and memory configuration. Exact speeds vary by CPU series and DIMM configuration (1DPC vs 2DPC, single rank vs dual rank).
Does this motherboard support PCIe 5.0?
Yes, the primary PCIe x16 slot (PCI_E1) supports PCIe 5.0 x16 for Ryzen 9000/7000 Series processors. Ryzen 8000 Series processors support PCIe 4.0 in this slot. The other three PCIe slots operate at PCIe 4.0 and 3.0 generations depending on the slot.
What storage options are available?
The board includes three M.2 NVMe slots (PCIe 5.0 x4, PCIe 4.0 x4, and PCIe 4.0 x2) and four SATA 6G ports. RAID support includes RAID 0/1/10 for SATA and RAID 0/1/5 (RAID 5 for Ryzen 9000 only) for NVMe.
Is Wi-Fi 7 included on this motherboard?
Yes, Wi-Fi 7 (802.11be) is pre-installed in the M.2 Key-E slot. It supports 2.4GHz, 5GHz, and 6GHz bands with a maximum speed of 5.8Gbps, plus Bluetooth 5.4 for wireless peripherals.
What is the warranty period?
The MSI B850 GAMING PLUS WIFI PZ includes a 36-month (3-year) manufacturer warranty.
Does the motherboard support CUDIMM memory?
Yes, CUDIMM is supported in Clock Driver bypass mode only. Compatibility and boot frequency may vary by CPU series, and manual overclocking after boot is available. Future BIOS updates may improve compatibility.
What USB connectivity options are available?
The board provides 8x USB 2.0 (4 rear, 4 front), 5x USB 5Gbps (1 rear Type-A, 4 front Type-A, 1 front Type-C), and 3x USB 10Gbps (1 rear Type-A, 2 rear Type-C) ports for comprehensive peripheral support.
