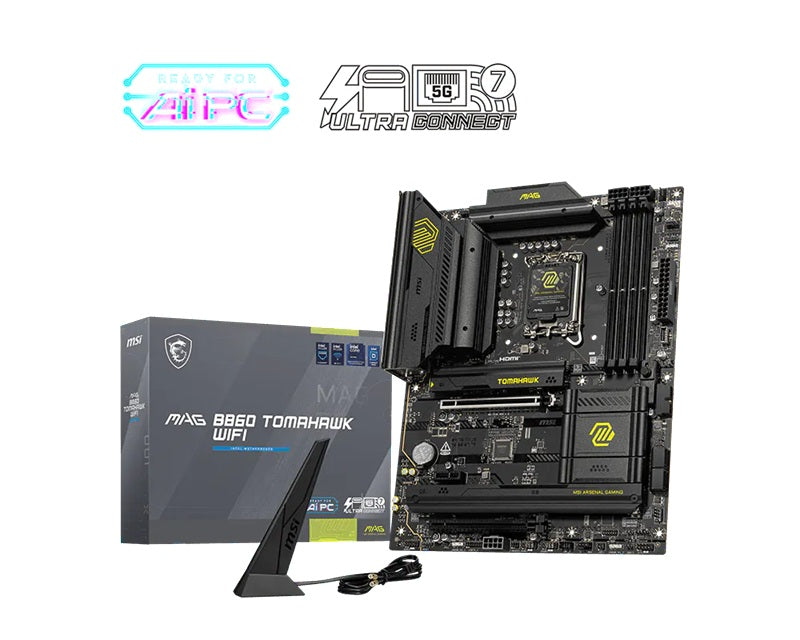

MSI MAG B860 TOMAHAWK WIFI Motherboard
MSI MAG B860 TOMAHAWK WIFI Motherboard
SKU:MBM-B860TOMAHAWKWIFI
The MSI MAG B860 TOMAHAWK WIFI is an Intel B860 chipset motherboard designed for high-performance computing builds. Featuring Intel Killer BE1750 Wi-Fi 7, DDR5 support up to 256GB, and comprehensive connectivity options, it delivers reliability and speed for business workstations and gaming systems.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Motherboards |
| SKU | MBM-B860TOMAHAWKWIFI |
| Availability | In Stock |
Overview
- The MSI MAG B860 TOMAHAWK WIFI is a full-featured ATX motherboard built on the Intel B860 chipset, delivering solid performance and connectivity for modern computing needs. It supports Intel's latest Core Ultra Processors (Series 2) and offers extensive storage and expansion options including three M.2 slots and four SATA connections, making it suitable for systems requiring multiple drives or rapid data access.
The motherboard excels in connectivity with Wi-Fi 7 via Intel Killer BE1750, USB4 with DisplayPort 1.4 support, and a robust selection of USB ports ranging from 2.0 to 40Gbps Type-C. With four DDR5 UDIMM slots capable of addressing up to 256GB, it supports memory-intensive applications and future-proofs your build.
Designed for reliability and ease of maintenance, the TOMAHAWK WIFI includes EZ Debug LEDs to simplify troubleshooting and comes backed by a 36-month warranty. Its ATX form factor ensures compatibility with standard cases and cooling solutions, while the comprehensive I/O suite makes it an excellent choice for business workstations, creative professionals, and performance-focused builds.
Specifications
| Chipset | Intel B860 |
|---|---|
| Socket | LGA 1851 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Form Factor | ATX (243.84mm x 304.8mm) |
| Memory Type | DDR5 UDIMM |
| Memory Slots | 4x DIMM |
| Maximum Memory | 256GB |
| Storage Connectors | 3x M.2 slot, 4x SATA 6G |
| Video Outputs | 1x HDMI 2.1 (8K 60Hz), 1x USB Type-C DisplayPort 1.4 (4K 60Hz) |
| PCI-E Slots | 2x PCI-E x16, 1x PCI-E x1 |
| Wireless | Intel Killer BE1750 Wi-Fi 7, Bluetooth |
| Audio | Realtek ALC897, 7.1-Channel High Definition Audio |
| USB Rear | 4x USB 2.0, 4x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 40Gbps Type-C |
| USB Front Headers | 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Additional Features | EZ Debug LED indicators (4x) |
| Operating System Support | Windows 11 64-bit |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors does the MSI MAG B860 TOMAHAWK WIFI support?
This motherboard supports Intel Core Ultra Processors (Series 2) via the LGA 1851 socket. The Intel B860 chipset is specifically designed for these latest-generation processors.
How much RAM can this motherboard support?
The MAG B860 TOMAHAWK WIFI features 4x DDR5 UDIMM slots with a maximum memory capacity of 256GB, supporting high-speed DDR5 memory modules.
Does this motherboard have Wi-Fi and Bluetooth?
Yes, it includes Intel Killer BE1750 Wi-Fi 7 and integrated Bluetooth connectivity for wireless networking and peripheral connections.
What storage options are available?
The motherboard provides 3x M.2 slots for NVMe SSDs and 4x SATA 6G connectors for traditional hard drives or SSDs, offering flexibility for multi-drive configurations.
What video outputs does the motherboard support?
It features one HDMI 2.1 output supporting 8K 60Hz, one USB Type-C DisplayPort 1.4 supporting 4K 60Hz, providing multiple display options for productivity and content creation.
Is this motherboard suitable for gaming and high-performance builds?
Yes, with DDR5 support up to 256GB, Wi-Fi 7, multiple M.2 slots, and USB 40Gbps connectivity, it's well-suited for gaming, content creation, and high-performance workstations.
What warranty is included?
The MSI MAG B860 TOMAHAWK WIFI comes with a 36-month warranty, providing comprehensive coverage for component failures and defects.
